Advanced plate and fin design enhances transmission cooling efficiency.
The Derale Fluid Cooler Series 9000 is engineered for effective transmission fluid cooling, featuring a robust plate and fin construction that surpasses traditional tube and fin designs. With dimensions of 10-1/8 inches in width, 11-7/8 inches in height, and a depth of 1-1/4 inches, this cooler is suitable for light to medium duty applications, including occasional towing. The unit is designed to prevent heat-related transmission failures, significantly extending the life of the transmission and enhancing overall performance.

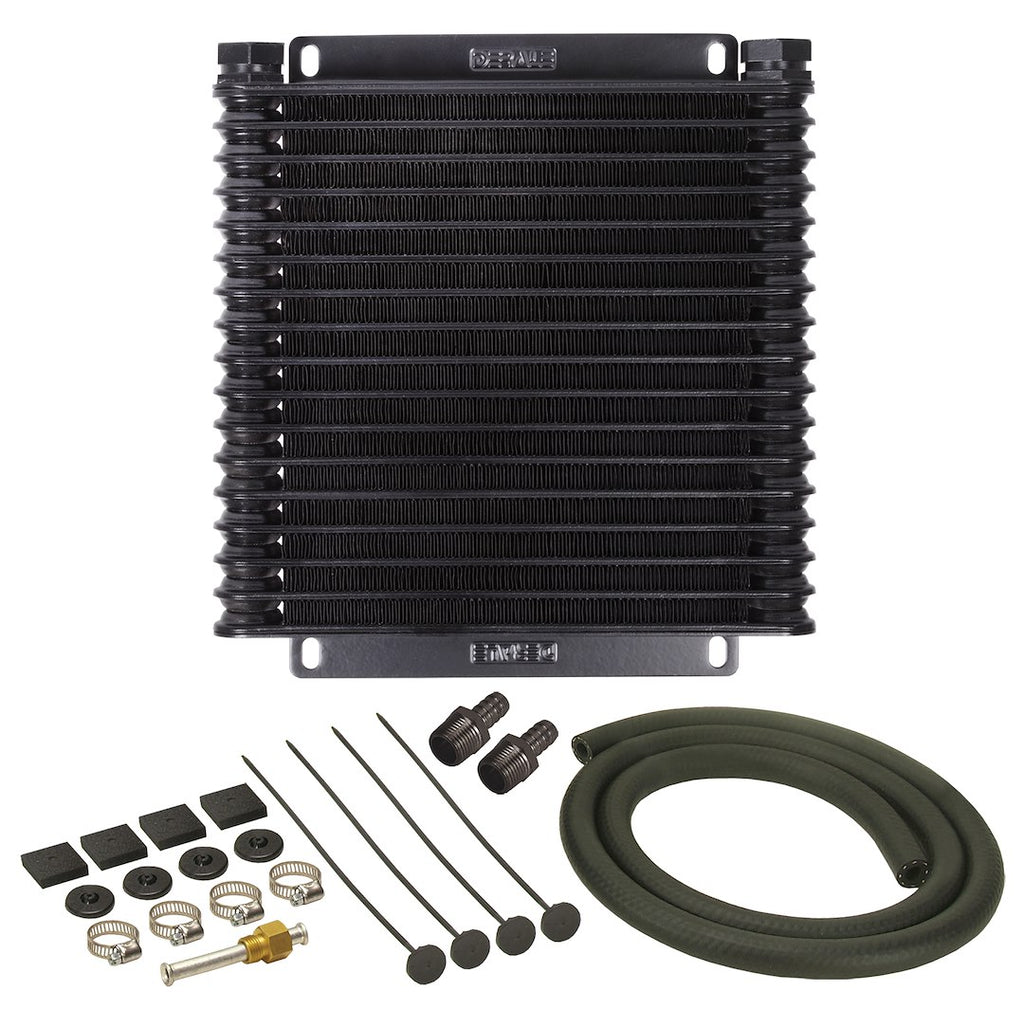

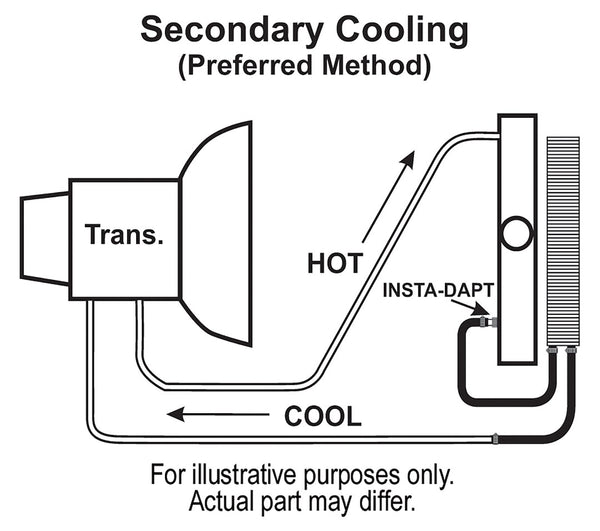

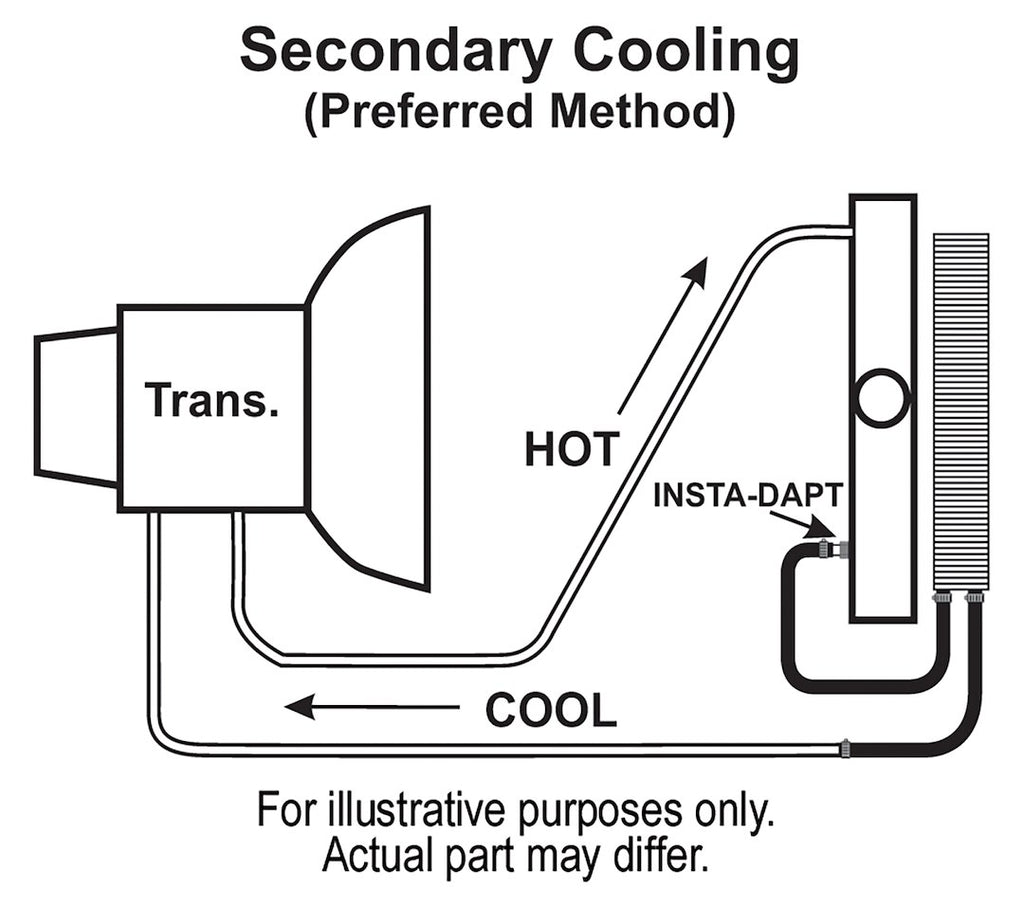

This cooler incorporates 1-1/4 inch wide plates and embossed turbulators that optimize heat transfer while minimizing pressure drop. It is equipped with 1/2 inch NPT female cooler ports and comes with necessary brass hose barb adapters, high pressure and high temperature hose, an Insta-Dapt radiator adapter, and complete mounting hardware for straightforward installation on vehicles with 5/16 inch transmission cooler lines.
Constructed from sturdy furnace brazed aluminum, the Derale Fluid Cooler Series 9000 is built to withstand demanding conditions. It features 17 cooling rows to maximize efficiency, ensuring that your transmission operates within optimal temperature ranges. This cooler is a reliable solution for maintaining transmission health and performance.
Features
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life
- Improves Transmission Performance
- Sturdy Furnace Brazed Aluminum Construction
- 1-1/4 Inch Turbulators Maximize Cooling And Minimize Pressure Drop
- New 1/2 Inch NPT Female Cooler Fittings
- Includes Brass Hose Barb Adapters, High Pressure/High Temperature Hose, Insta-Dapt Radiator Adapter And Mounting Hardware
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13614
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Plate And Fin
- Overall Height (IN): 11-7/8 Inch
- Overall Width (IN): 10-1/8 Inch
- Overall Depth (IN): 1-1/4 Inch
- Number Of Cooling Rows: 17
- Inlet Attachment: Female Threads
- Inlet Size: 1/2 Inch NPT
- Outlet Attachment: Female Threads
- Outlet Size: 3/8 Inch NPT
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Depth (IN): 1-1/4 Inch
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
