Advanced plate and fin design for enhanced transmission cooling efficiency.
The Derale Fluid Cooler Series 9000 is engineered for optimal transmission fluid cooling, featuring a robust plate and fin construction that surpasses traditional tube and fin designs. With dimensions of 10-1/8 inches in width, 8-7/8 inches in height, and a depth of 1-1/4 inches, this cooler is designed to fit seamlessly into various vehicle applications. The unit includes 1/2 inch NPT female cooler ports and comes equipped with necessary brass hose barb adapters and mounting hardware for straightforward installation.
This cooler is particularly effective for light to medium duty use and occasional towing, significantly extending transmission life by mitigating heat-related failures. The innovative design incorporates embossed turbulators that maximize heat transfer while minimizing pressure drop, ensuring efficient cooling performance. With a total of 13 cooling rows, the Derale Fluid Cooler Series 9000 is built to enhance shifting performance and reliability under demanding conditions.
Constructed from sturdy furnace brazed aluminum, this cooler is built to withstand high pressure and temperature environments. The inclusion of a complete hardware kit facilitates installation on vehicles with 5/16 inch transmission cooler lines, making it a practical choice for automotive enthusiasts and professionals alike.
Features
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life
- Improves Transmission Performance
- Sturdy Furnace Brazed Aluminum Construction
- 1-1/4 Inch Turbulators Maximize Cooling And Minimize Pressure Drop
- New 1/2 Inch NPT Female Cooler Fittings

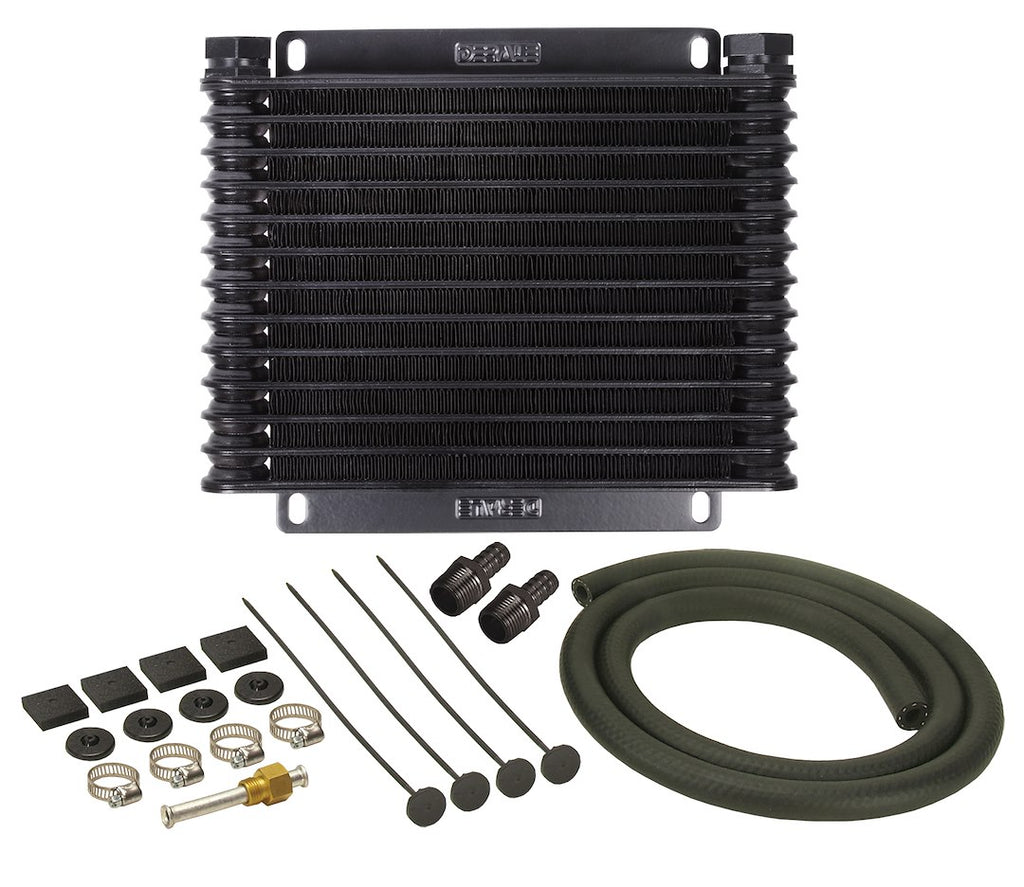

- Includes Brass Hose Barb Adapters, High Pressure/High Temperature Hose, Insta-Dapt Radiator Adapter And Mounting Hardware
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13613
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Plate And Fin
- Overall Height (IN): 8-7/8 Inch
- Overall Width (IN): 10-1/8 Inch
- Overall Depth (IN): 1-1/4 Inch
- Number Of Cooling Rows: 13
- Inlet Attachment: Female Threads
- Inlet Size: 1/2 Inch NPT
- Outlet Attachment: Female Threads
- Outlet Size: 3/8 Inch NPT
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Depth (IN): 1-1/4 Inch
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
