Enhance transmission performance and longevity with advanced cooling technology.

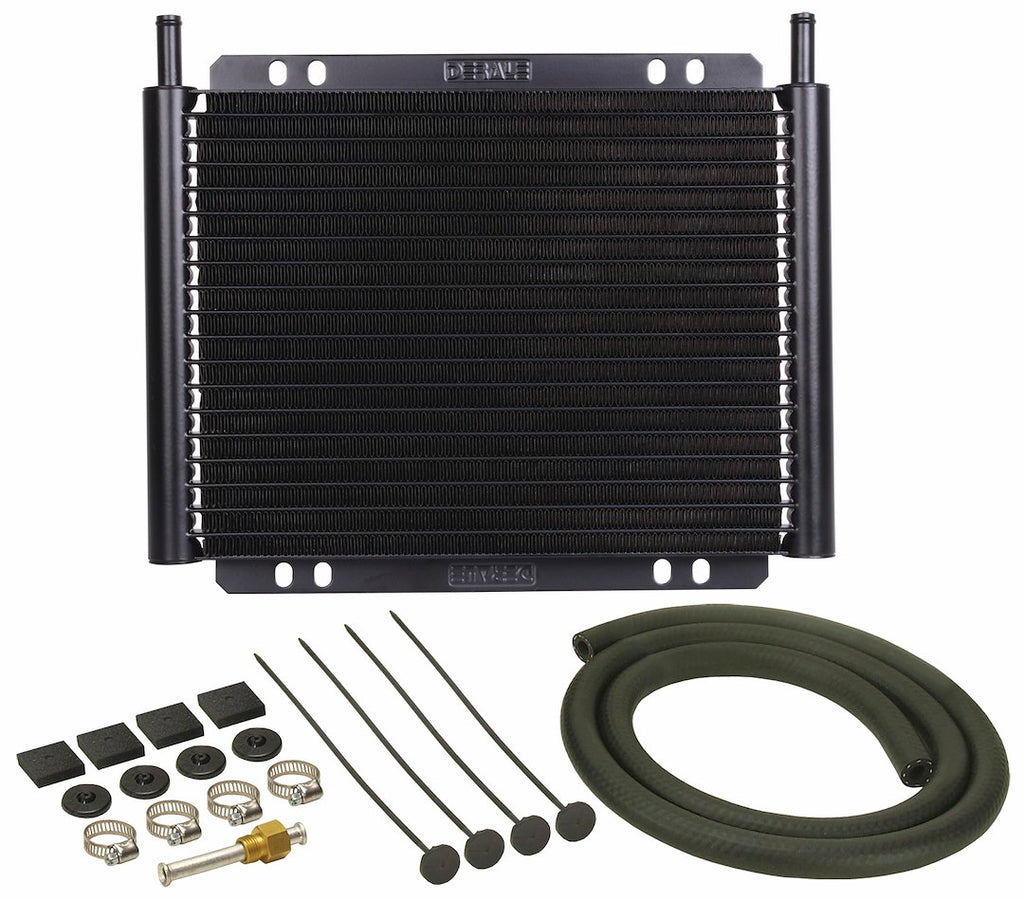

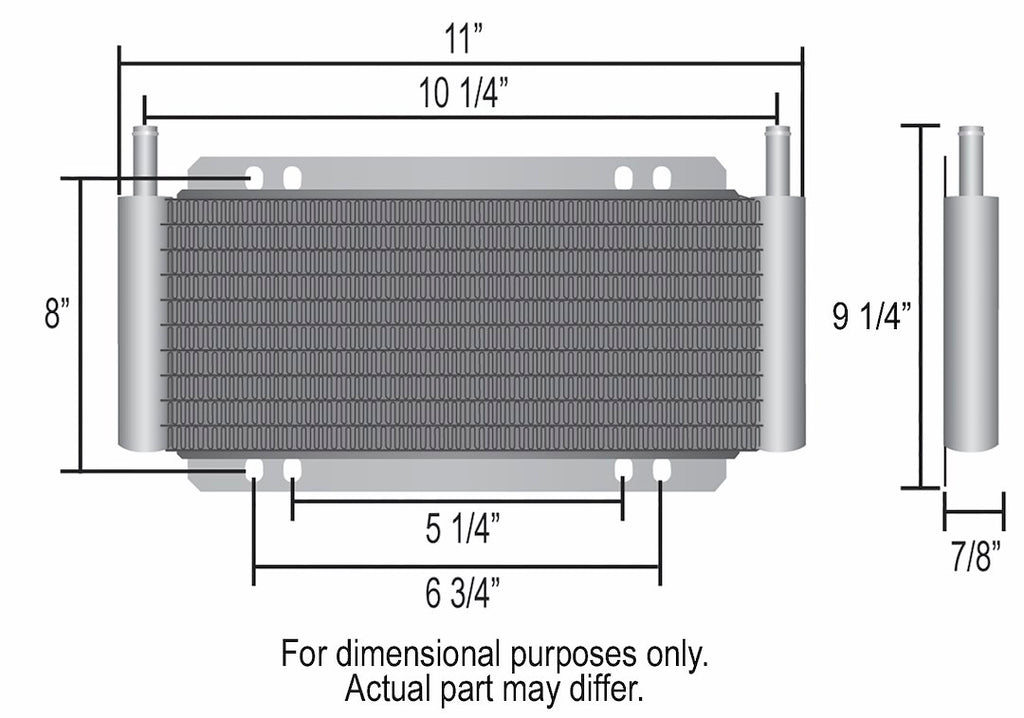

The Derale Fluid Cooler Series 8000 is designed to efficiently manage transmission fluid temperatures in medium to full size cars and intermediate SUVs. Constructed with sturdy furnace brazed aluminum, this plate and fin cooler features 7/8 inch wide plates and 3/4 inch embossed turbulators that optimize heat transfer while minimizing pressure drop. With dimensions of 11 inches in width, 9-1/4 inches in height, and 7/8 inch in depth, it is suitable for vehicles with 5/16 inch transmission cooler lines.
This cooler significantly extends transmission life by preventing heat related failures and enhances shifting performance. The unit includes a complete hardware kit for straightforward installation, making it a practical choice for those who require reliable cooling under light to medium duty use and occasional towing. The hose barb connections for both inlet and outlet ensure a secure fit, while the painted finish provides durability against the elements.
Features
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life
- Improves Transmission Performance
- 3/4 Inch Embossed Turbulators Maximize Cooling And Minimize Pressure Drop
- Sturdy Furnace Brazed Aluminum Construction
- 11/32 Inch Hose Barb Inlets
- Complete Hardware Kit Included
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13503
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Plate And Fin
- Overall Height (IN): 9-1/4 Inch
- Overall Width (IN): 11 Inch
- Overall Depth (IN): 7/8 Inch
- Number Of Cooling Rows: 19
- Inlet Attachment: Hose Barb
- Inlet Size: 0.34 Inch
- Outlet Attachment: Hose Barb
- Outlet Size: 0.34 Inch
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Height (IN): 9-3/4 Inch
- Core Width (IN): 10-1/4 Inch
- Core Depth (IN): 3/4 Inch
- Finish: Painted
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
