Enhance transmission performance with advanced cooling technology.

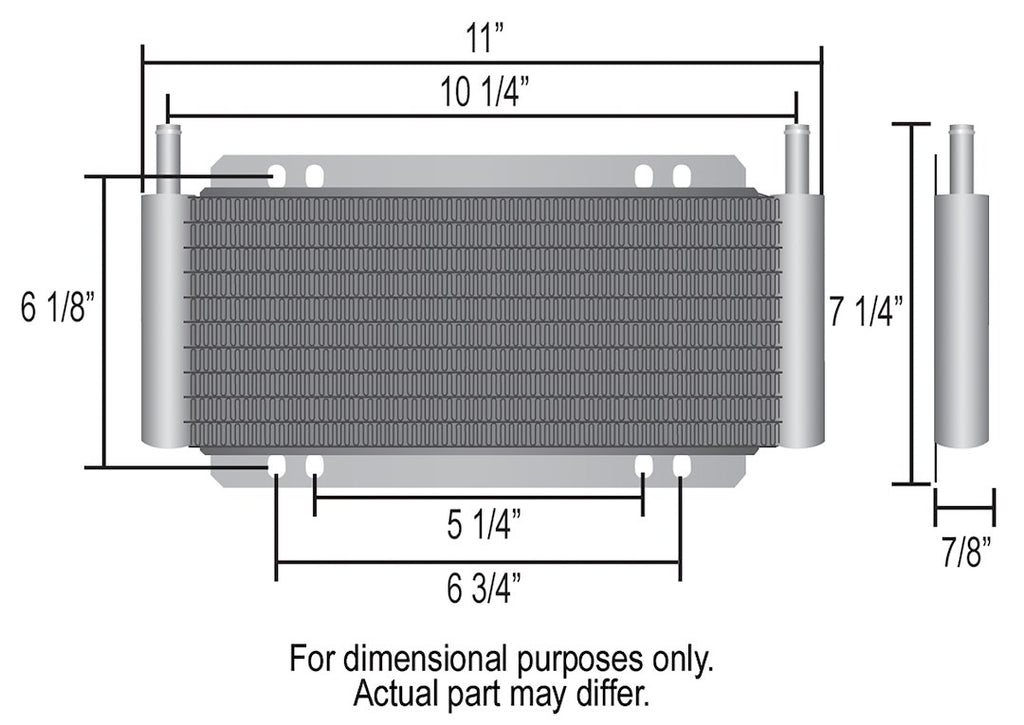

The Derale Fluid Cooler Series 8000 is designed to effectively manage transmission fluid temperatures, ensuring optimal performance and longevity. Constructed with sturdy furnace brazed aluminum, this plate and fin cooler features 7/8 inch wide plates and 3/4 inch embossed turbulators that enhance heat transfer while minimizing pressure drop. With dimensions of 11 inches in width, 7-1/4 inches in height, and 7/8 inch in depth, it is suitable for light to medium duty applications and occasional towing.
This cooler is engineered to prevent heat-related transmission failures, significantly extending the life of the transmission and improving shifting performance. It includes a complete hardware kit for easy installation on vehicles equipped with 5/16 inch transmission cooler lines. The unit features hose barb connections with 11/32 inch inlets and outlets, making it compatible with a variety of setups.
The Derale Fluid Cooler Series 8000 is an essential component for maintaining the efficiency of automatic transmissions. Its robust design and effective cooling capabilities make it a reliable choice for those looking to enhance their vehicle's transmission system.
Features
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life
- Improves Transmission Performance
- 3/4 Inch Embossed Turbulators Maximize Cooling And Minimize Pressure Drop
- Sturdy Furnace Brazed Aluminum Construction
- 11/32 Inch Hose Barb Inlets

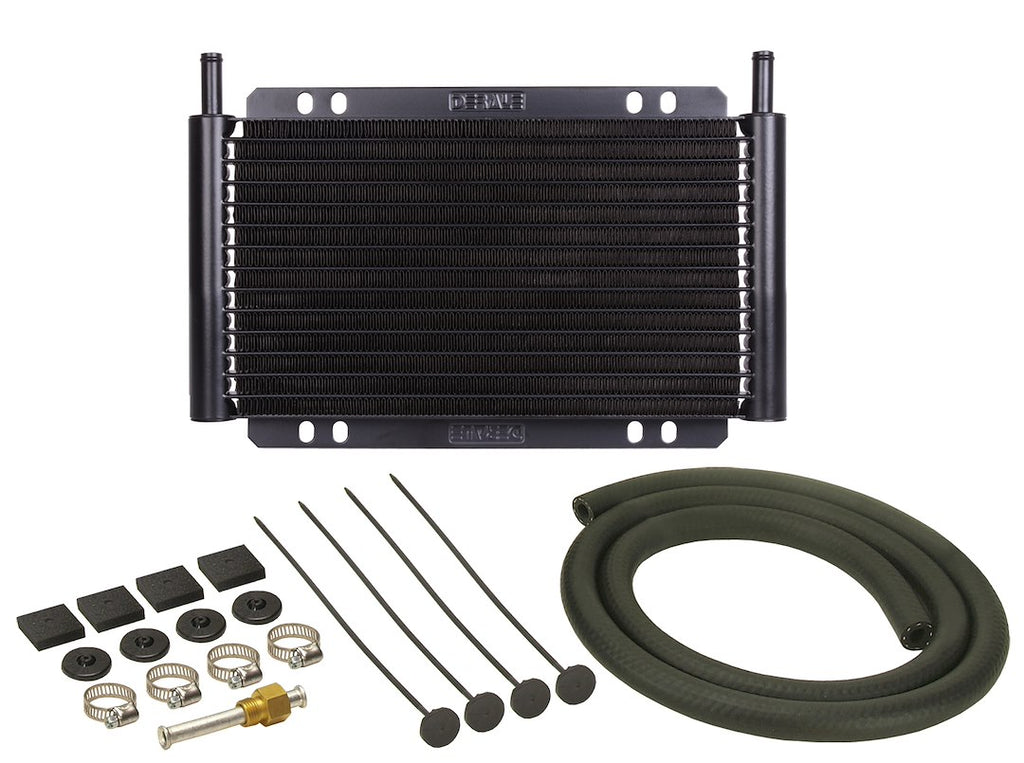

- Complete Hardware Kit Included
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13502
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Plate And Fin
- Overall Height (IN): 7-1/4 Inch
- Overall Width (IN): 11 Inch
- Overall Depth (IN): 7/8 Inch
- Number Of Cooling Rows: 13
- Inlet Attachment: Hose Barb
- Inlet Size: 0.34 Inch
- Outlet Attachment: Hose Barb
- Outlet Size: 0.34 Inch
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Height (IN): 7.50 Inch
- Core Width (IN): 10-1/4 Inch
- Core Depth (IN): 0.750 Inch
- Finish: Painted
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
