Derale Fluid Cooler Series 7000 (MPN: 13104)

Enhance transmission performance and longevity with advanced cooling technology.

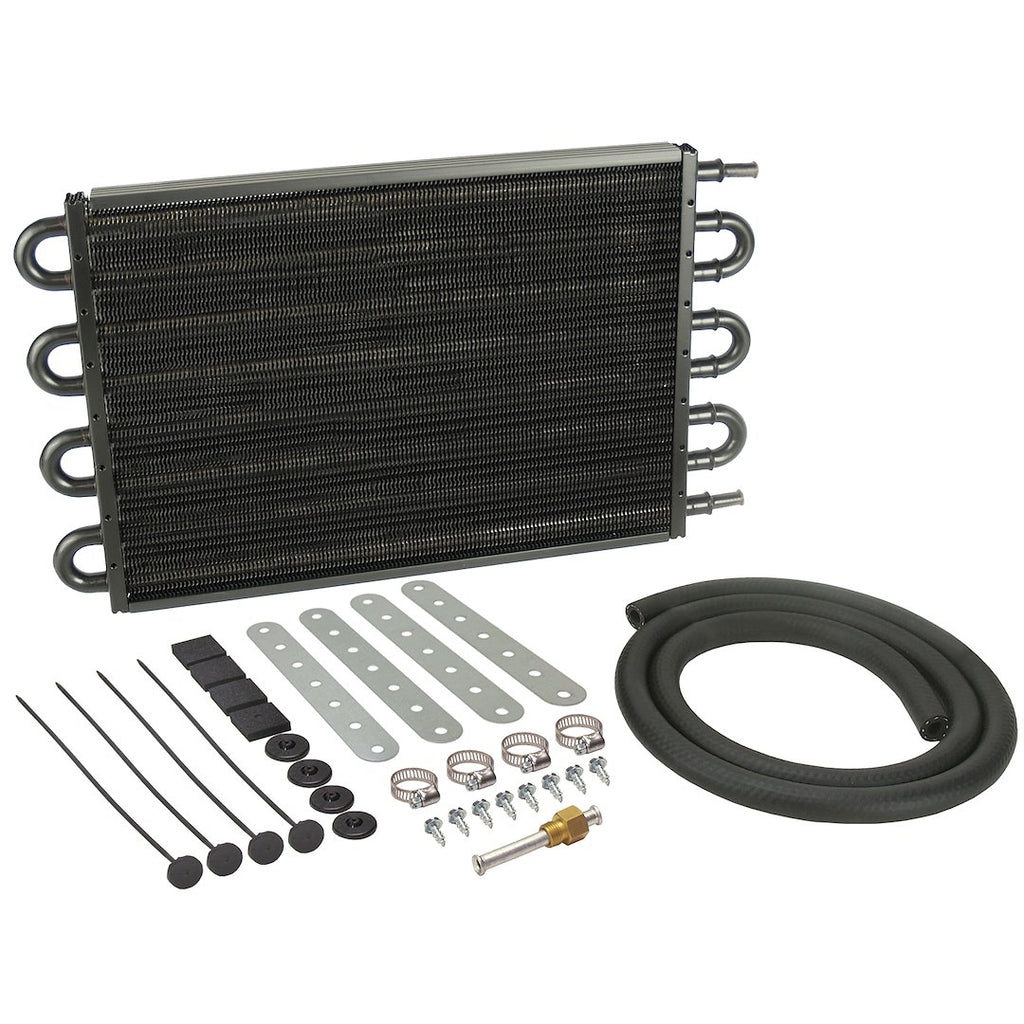

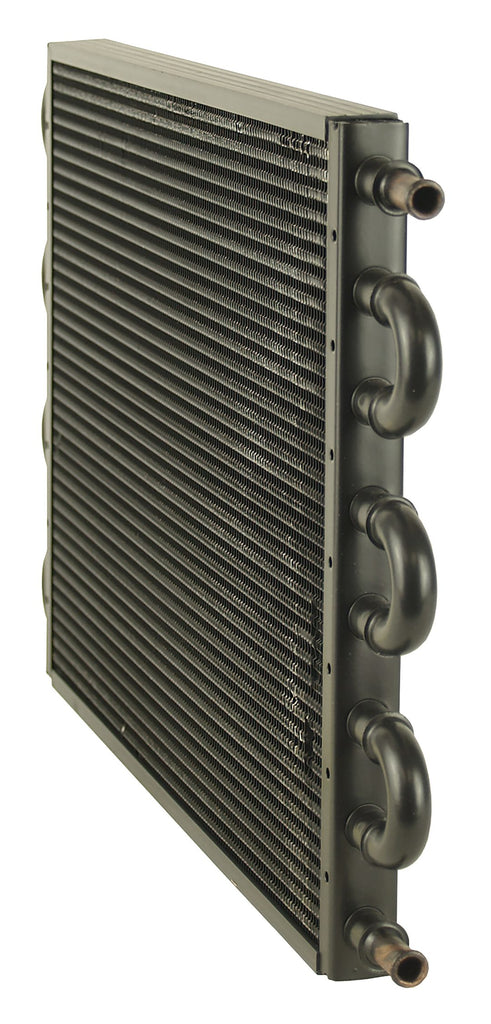

The Derale Fluid Cooler Series 7000 is designed specifically for automatic transmission applications, featuring a robust tube and fin construction. This cooler utilizes 1/2 inch copper tubing expanded into aluminum cooling fins, which are equipped with embossed turbulators to optimize fluid agitation and heat transfer. With dimensions of 16-5/8 inches in width, 10-1/4 inches in height, and a depth of 3/4 inch, it is engineered to fit a variety of vehicles, particularly subcompact cars that experience high stress.

This transmission cooler is capable of handling up to 20500 pounds gross vehicle weight and includes 8 passes for efficient cooling. The hose barb connections with 11/32 inch inlets and outlets ensure a secure fit, while the complete hardware kit simplifies installation on vehicles with 5/16 inch transmission cooler lines. By preventing heat-related transmission failures, this cooler significantly enhances transmission life and performance, making it a critical component for maintaining optimal vehicle operation.

The cooler is finished in black and constructed from durable aluminum, ensuring longevity and resistance to wear. With no fan required, it operates efficiently without additional power consumption, making it a practical choice for those looking to improve their vehicle's transmission system.

Features

• Prevents Heat Related Transmission Failures
• Dramatically Increases Transmission Life. Extruded Plastic Cooling Fin Guards
• Improves Transmission Performance
• Embossed Turbulators Inserted In Each Tube Agitate Fluid For Maximum Heat Transfer
• 1/2 Inch Copper Tubing Expanded Into Aluminum Cooling Fins
• 11/32 Inch Hose Barb Inlets
• Complete Hardware Kit Included

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 13104
• Condition: New
• Recommended Use: Automatic Transmission
• Construction: Tube And Fin

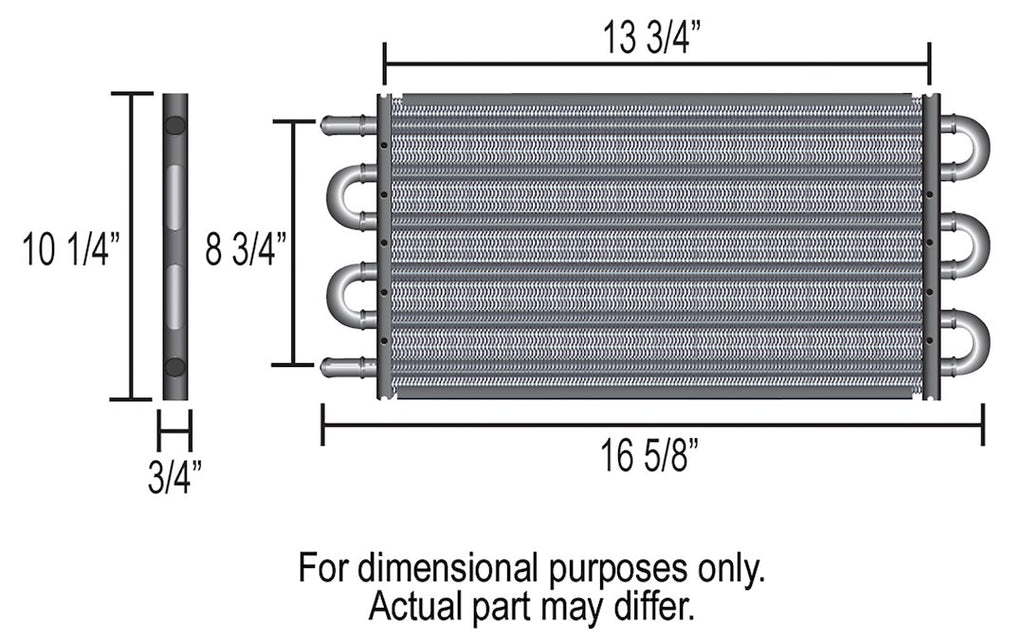

• Overall Height (IN): 10-1/4 Inch
• Overall Width (IN): 16-5/8 Inch
• Overall Depth (IN): 3/4 Inch
• Number Of Cooling Rows: 8
• Inlet Attachment: Hose Barb
• Inlet Size: 0.34 Inch
• Outlet Attachment: Hose Barb
• Outlet Size: 0.34 Inch
• Color: Black
• Material: Aluminum
• With Fan: No
• Fan Control: No Fan
• Core Height (IN): 10-1/4 Inch
• Core Width (IN): 13-3/4 Inch
• Core Depth (IN): 0.750 Inch
• Finish: Painted
• Fan CFM Rating: No Fan
• Fan Diameter: No Fan
• Fan Amp Draw: No Fan
• With Mounting Hardware: Yes

Technical Documents

• 13104.pdf
