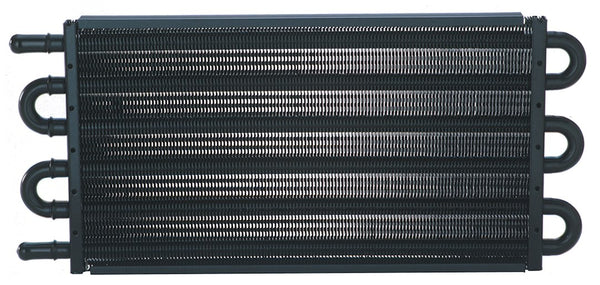

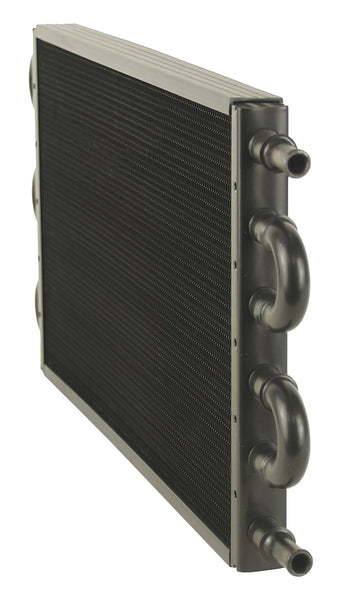

Derale Fluid Cooler Series 7000 (MPN: 13103)

Enhance transmission performance and longevity with advanced cooling technology.

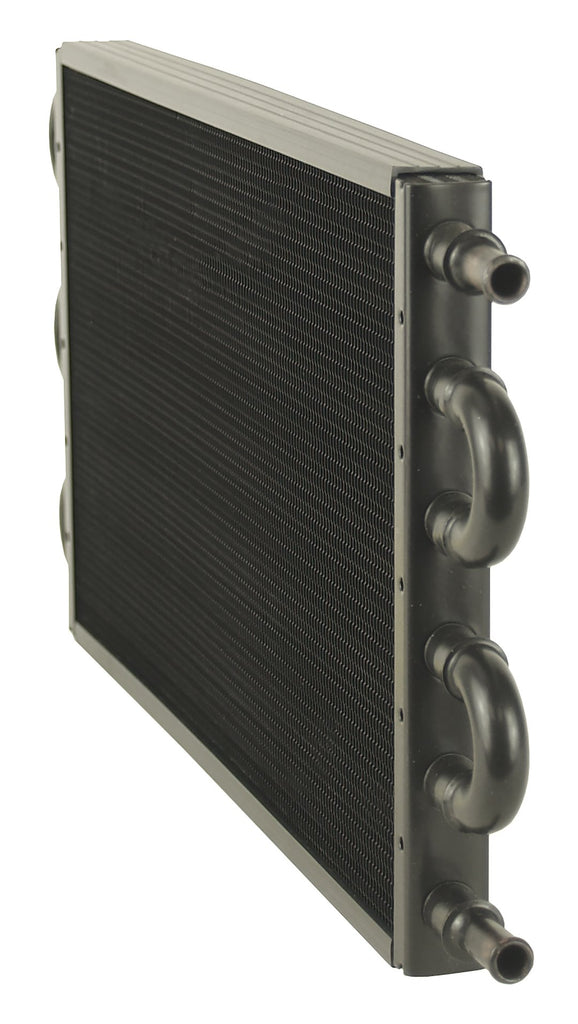

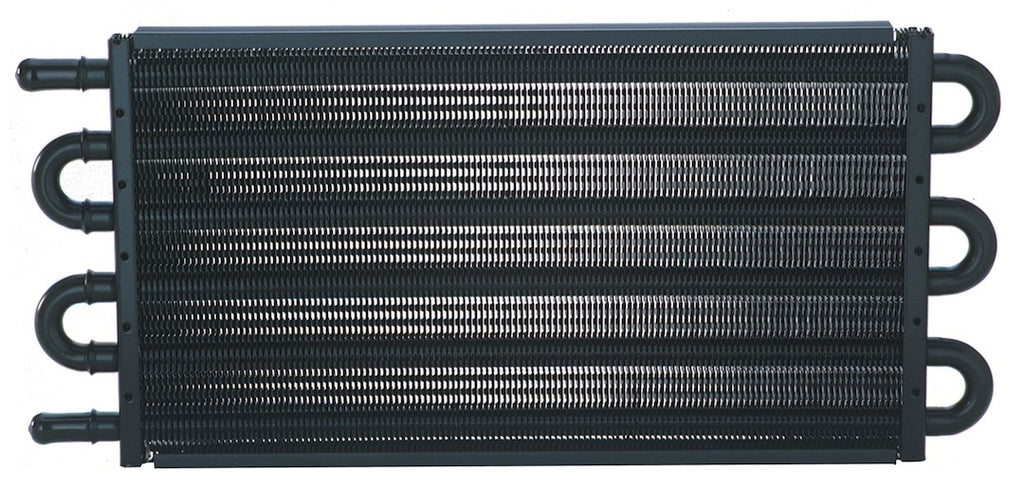

The Derale Fluid Cooler Series 7000 is designed to optimize the performance of automatic transmissions by effectively managing heat. This cooler features a tube and fin construction with 1/2 inch copper tubing expanded into aluminum cooling fins, ensuring efficient heat transfer. The inclusion of embossed turbulators within each tube agitates the fluid, maximizing cooling efficiency and preventing heat-related transmission failures.

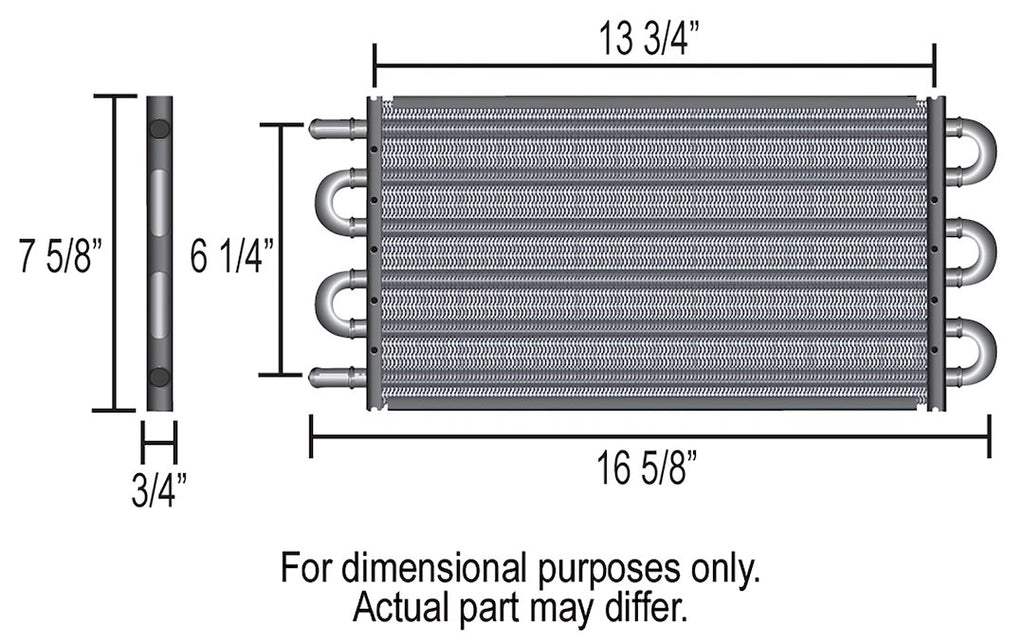

With dimensions of 16-5/8 inches in width, 7-5/8 inches in height, and a depth of 3/4 inch, this cooler is suitable for vehicles with a gross vehicle weight of up to 18500 pounds. It is equipped with 11/32 inch hose barb inlets and outlets, making it compatible with standard transmission cooler lines. The complete hardware kit included facilitates easy installation, allowing for a straightforward upgrade to your vehicle's cooling system.

This transmission cooler not only improves shifting performance but also extends the life of the transmission by reducing the risk of overheating. The durable aluminum construction and painted finish ensure longevity and reliability under demanding conditions. The Derale Fluid Cooler Series 7000 is an essential component for maintaining optimal transmission function in modern vehicles.

Features

• Prevents Heat Related Transmission Failures
• Dramatically Increases Transmission Life. Extruded Plastic Cooling Fin Guards
• Improves Transmission Performance
• Embossed Turbulators Inserted In Each Tube Agitate Fluid For Maximum Heat Transfer
• 1/2 Inch Copper Tubing Expanded Into Aluminum Cooling Fins
• 11/32 Inch Hose Barb Inlets

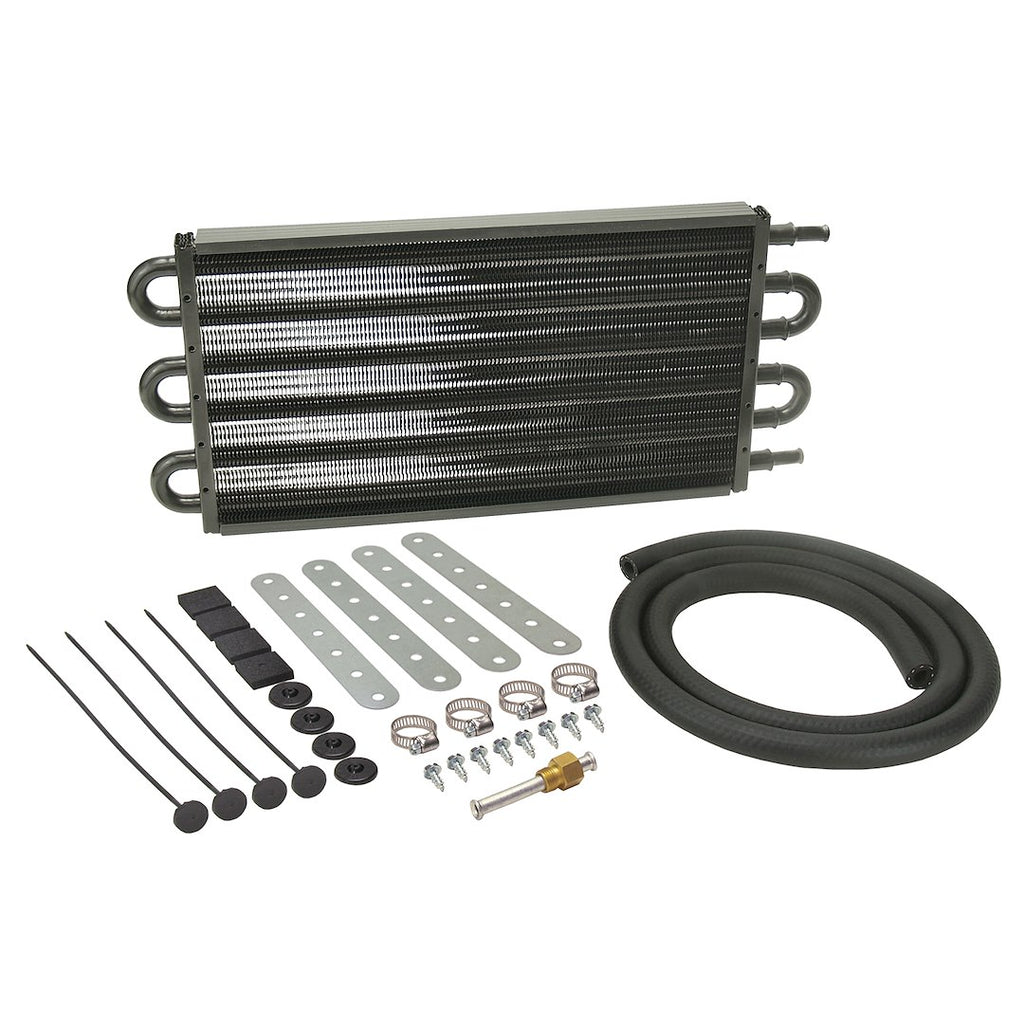

• Complete Hardware Kit Included

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 13103
• Condition: New
• Recommended Use: Automatic Transmission
• Construction: Tube And Fin
• Overall Height (IN): 7-5/8 Inch
• Overall Width (IN): 16-5/8 Inch
• Overall Depth (IN): 3/4 Inch
• Number Of Cooling Rows: 6
• Inlet Attachment: Hose Barb
• Inlet Size: 0.34 Inch
• Outlet Attachment: Hose Barb
• Outlet Size: 0.34 Inch
• Color: Black
• Material: Aluminum
• With Fan: No
• Fan Control: No Fan
• Core Height (IN): 7-5/8 Inch
• Core Width (IN): 13-3/4 Inch
• Core Depth (IN): 0.750 Inch
• Finish: Painted
• Fan CFM Rating: No Fan
• Fan Diameter: No Fan
• Fan Amp Draw: No Fan
• With Mounting Hardware: Yes

Technical Documents

• 13103.pdf
