Enhance engine and transmission performance with efficient cooling solutions.

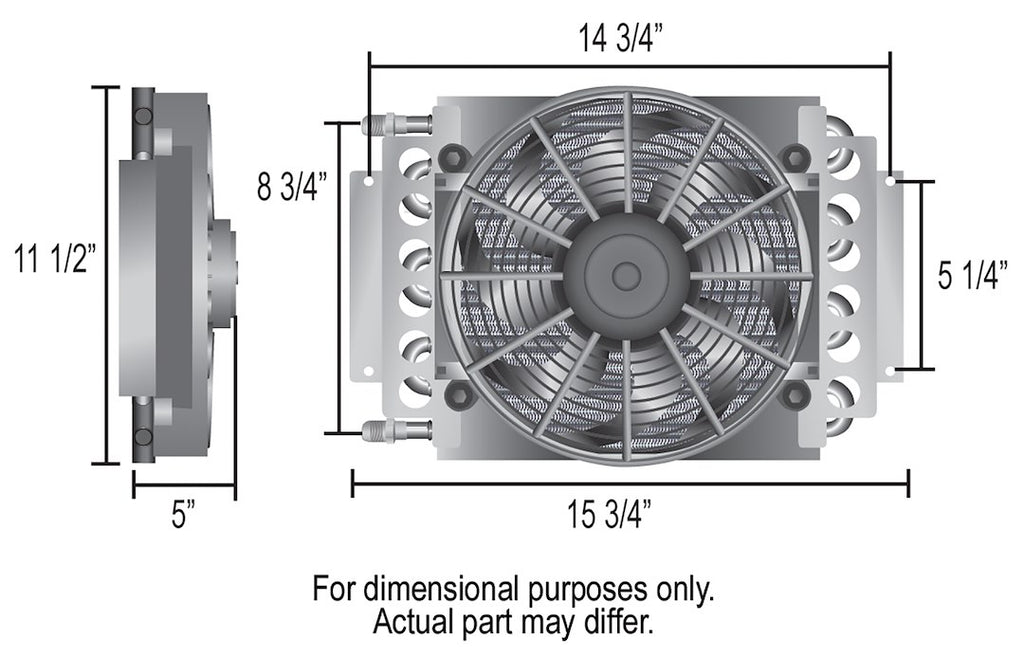

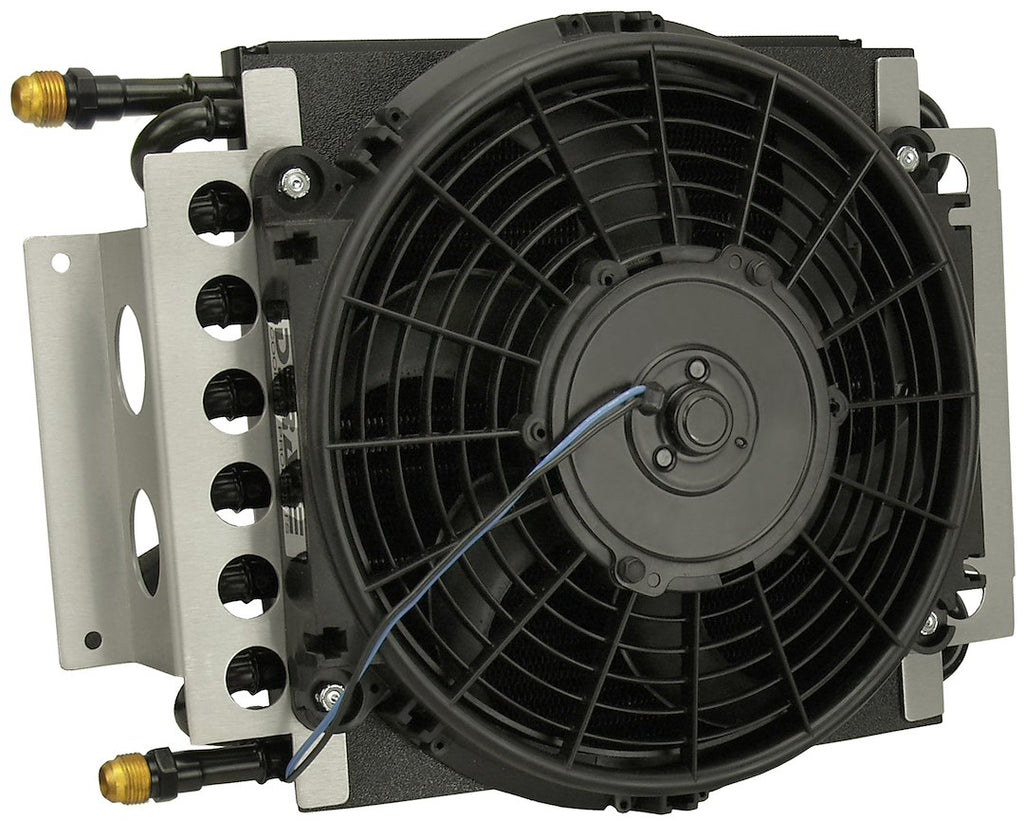

The Derale Fluid Cooler is designed to optimize the cooling of engine oil, transmission fluid, power steering fluid, and fuel. With a compact size of 15-3/4 inches in width, 11-1/2 inches in height, and 5 inches in depth, this cooler features a 16 pass tube and fin construction that maximizes heat dissipation. The included 650 cubic feet per minute reversible electric fan ensures optimal airflow, while the 180 degree Fahrenheit in-line thermostat automatically activates the fan when needed.
This versatile cooler can be mounted in various locations, making it suitable for performance compacts, hot rods, muscle cars, and trucks. The installation kit includes everything necessary for a straightforward setup, including AN fittings, hose barb adapters, and mounting hardware. The durable aluminum construction and clear anodized aluminum shroud provide both longevity and aesthetic appeal.
By effectively managing fluid temperatures, the Derale Fluid Cooler significantly extends the life of your engine and transmission, making it a reliable choice for heavy-duty towing and hauling applications. Its efficient design and comprehensive features make it an essential component for any vehicle requiring enhanced cooling performance.
Features
- Electric Fan Supplies Optimum Airflow
- Dramatically Extends Engine And Transmission Life

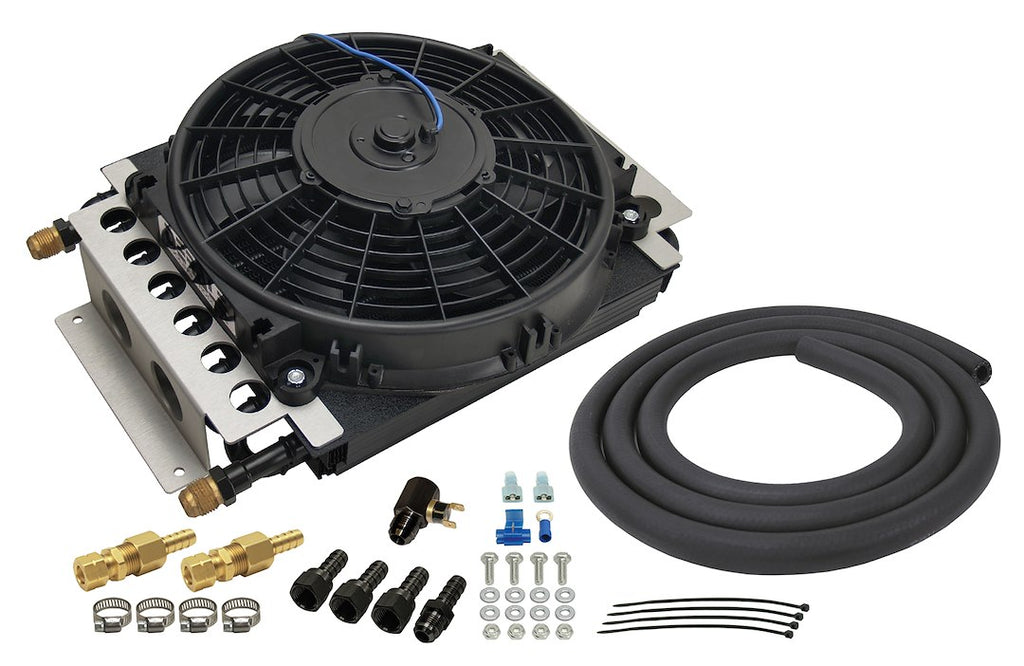

- Kit Includes Fan Mounted Cooler, Two Aluminum -8AN Fittings And Brass Hose Barb Fittings, In-Line Thermostat, Hose, Two Compression Fittings And Mounting Hardware
- 16 Pass Tube And Fin Cooler
- Clear Anodized Aluminum Shroud
- 650 Cubic Feet Per Minute Reversible Tornado Electric Fan. -8AN Inlets
- Mounts Anywhere Space Permits
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 15900
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Tube And Fin
- Overall Height (IN): 11-1/2 Inch
- Overall Width (IN): 15-3/4 Inch
- Overall Depth (IN): 5 Inch
- Number Of Cooling Rows: 16
- Inlet Attachment: Male Threads
- Inlet Size: 1/2 Inch (-8 AN)
- Outlet Attachment: Male Threads
- Outlet Size: 1/2 Inch (-8 AN)
- Color: Black/ Silver
- Material: Aluminum
- With Fan: Yes
- Fan Control: Thermostatic Switch
- Core Height (IN): 11-1/2 Inch
- Fan CFM Rating: 650 CFM
- Fan Diameter: 10 Inch
- Fan Amp Draw: 5.3 Amp
- With Mounting Hardware: Yes
