Efficient cooling solution for engine oil and transmission fluid applications.

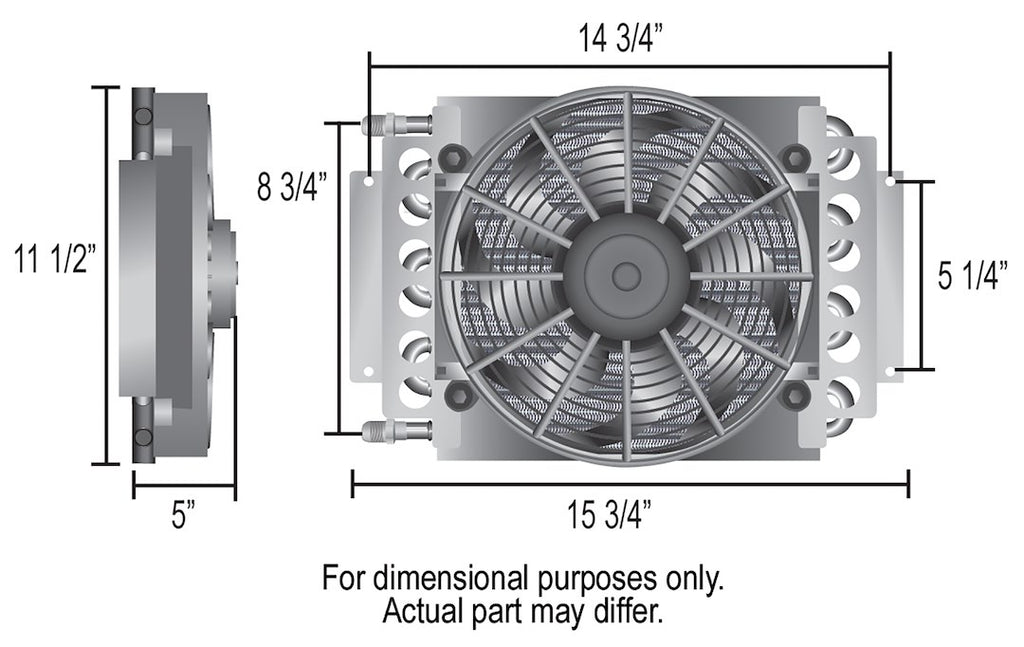

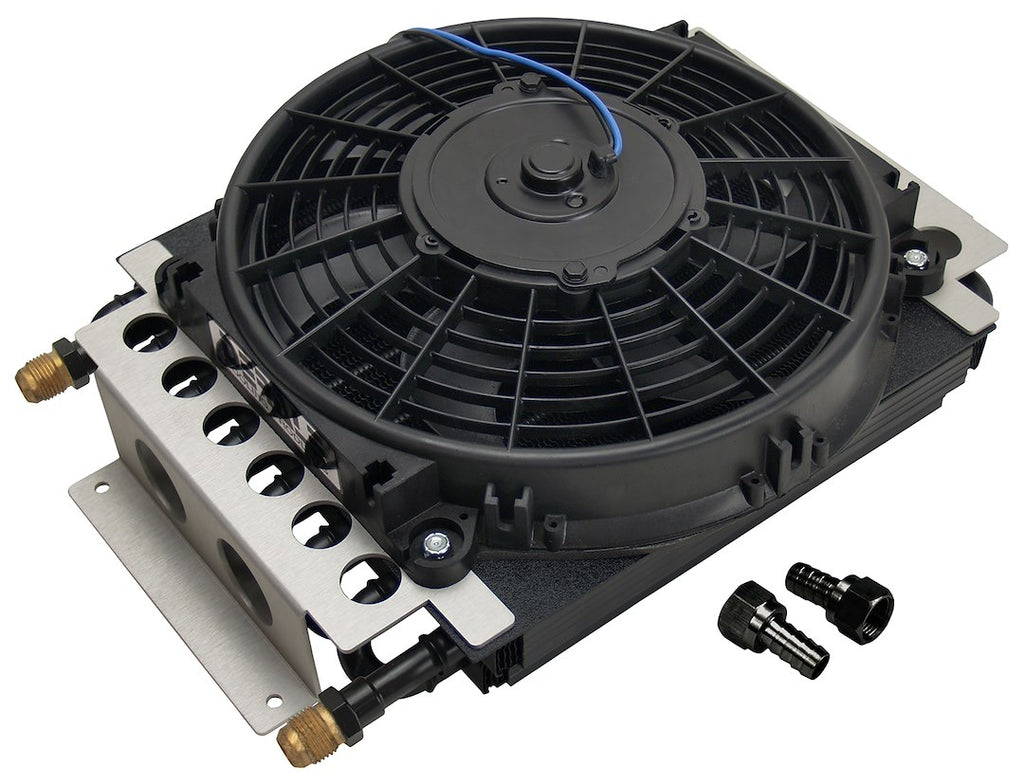

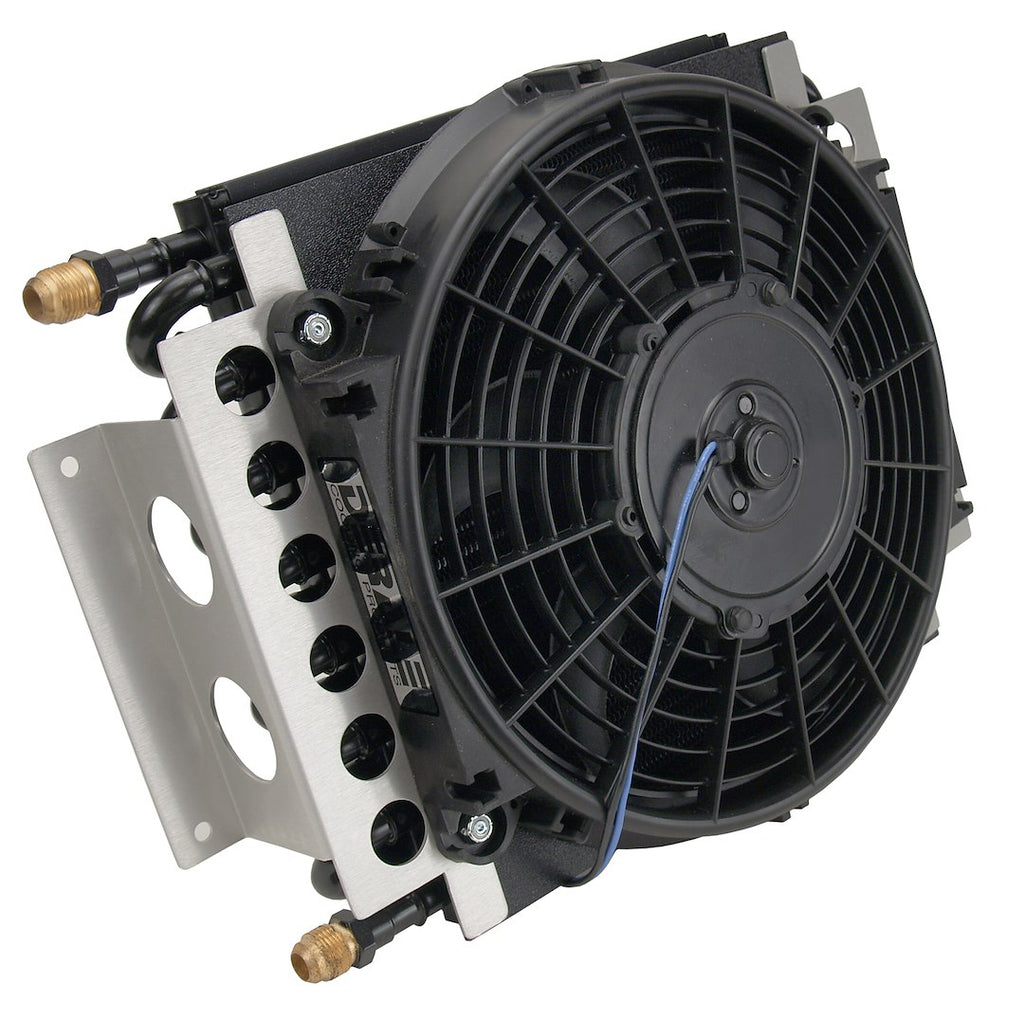

The Derale Fluid Cooler is designed to provide effective cooling for engine oil, transmission fluid, power steering fluid, and fuel. With a compact size of 15-3/4 inches in width, 11-1/2 inches in height, and 5 inches in depth, this cooler features a 16 pass tube and fin construction that enhances heat dissipation. The unit is equipped with a 650 cubic feet per minute reversible electric fan, ensuring optimal airflow for improved cooling performance.
This versatile cooler can be mounted in various locations, making it suitable for performance compacts, hot rods, muscle cars, and trucks. The cooler includes -8AN male fittings and two -8AN X 1/2 inch barb fittings, allowing for easy installation and compatibility with a range of applications. The clear anodized aluminum brackets provide durability and a sleek appearance, while the electric fan contributes to extending the life of both the engine and transmission.
Constructed from high-quality copper and aluminum materials, the Derale Fluid Cooler is built to withstand demanding conditions. Its efficient design not only enhances performance but also ensures reliability in critical cooling situations. This cooler is an essential component for those looking to maintain optimal operating temperatures in their vehicles.
Features
- Mounts Anywhere Space Permits
- Electric Fan Supplies Optimum Airflow
- Dramatically Extends Engine And Transmission Life
- Clear Anodized Aluminum Brackets
- 650 CFM Reversible Tornado Electric Fan
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 15800
- Condition: New
- Recommended Use: Engine Oil/ Transmission Fluid/ Power Steering Fluid/ Fuel
- Construction: Tube And Fin
- Overall Height (IN): 11-1/2 Inch
- Overall Width (IN): 15-3/4 Inch
- Overall Depth (IN): 5 Inch
- Number Of Cooling Rows: 16
- Inlet Attachment: Male Threads
- Inlet Size: 1/2 Inch (-8 AN)
- Outlet Attachment: Male Threads
- Outlet Size: 1/2 Inch (-8 AN)
- Color: Black/ Silver
- Material: Copper/ Aluminum
- With Fan: Yes
- Fan Control: Electric
- Core Height (IN): 11-1/2 Inch
- Core Width (IN): 12.37 Inch
- Core Depth (IN): 1.750 Inch
- Finish: Painted
- Fan CFM Rating: 650 Cubic Feet Per Minute
- Fan Diameter: 10 Inch
- Fan Amp Draw: 5.3 Amp
- With Mounting Hardware: No
