Derale Fluid Cooler (MPN: 13960)

High efficiency cooler for automatic transmission applications.

The Derale Fluid Cooler is designed to enhance the performance and longevity of automatic transmissions. Featuring a high efficiency stacked plate construction, this cooler is equipped with a powerful 500 cubic feet per minute reversible electric fan that ensures optimal airflow. The compact dimensions of 13 inches in width, 10 inches in height, and 5-5/8 inches in depth allow for versatile mounting options in various vehicles including performance cars, hot rods, and trucks.

This cooler kit includes everything necessary for installation, such as aluminum -6 AN fittings, brass hose barb fittings, and an in-line thermostat for fan activation at 180 degrees Fahrenheit. The clear anodized aluminum shroud not only provides durability but also enhances the aesthetic appeal of the cooler. With 25 cooling rows, the Derale Fluid Cooler is engineered to dramatically extend the life of both engine and transmission components, making it a reliable choice for extreme duty towing and hauling applications.

Constructed from high-quality aluminum, this cooler is built to withstand demanding conditions while maintaining efficient cooling performance. The thermostatic switch allows for automatic fan control, ensuring that the transmission fluid remains at optimal temperatures during operation. The Derale Fluid Cooler is a critical component for those looking to improve their vehicle's transmission cooling system.

Features

• Electric Fan Supplies Optimum Airflow
• Dramatically Extends Engine And Transmission Life

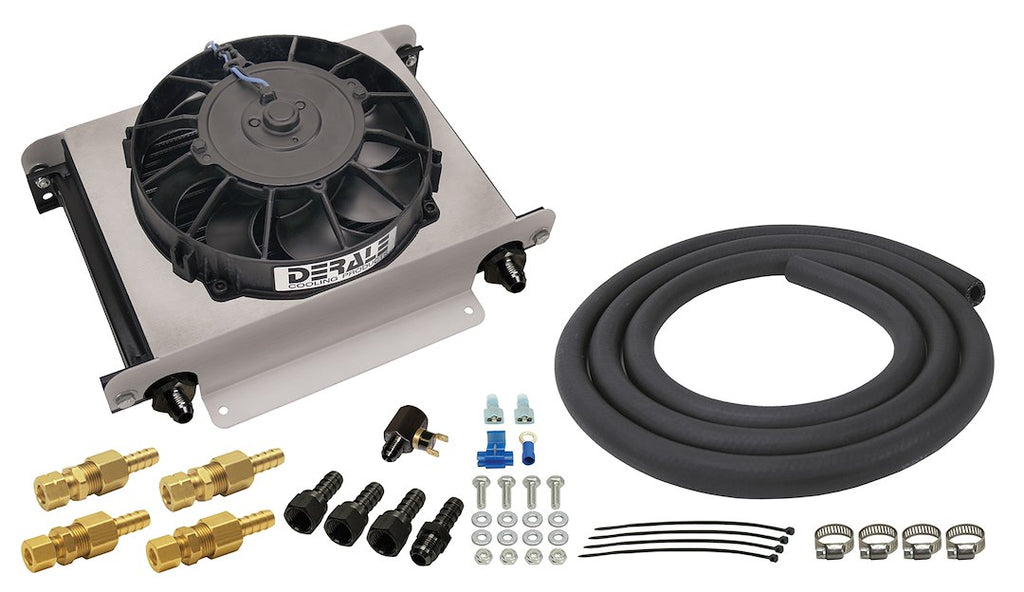

• Kit Includes Fan Mounted Cooler, Aluminum -6AN Fittings And Brass Hose Barb Fittings, In-Line Thermostat, Hose, Insta-Dapt Adapter, Compression Fittings And Hardware
• High Efficiency Stacked Plate Cooler
• Clear Anodized Aluminum Shroud
• 500 Cubic Feet Per Minute Reversible Tornado Electric Fan
• 6AN Inlets

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 13960
• Condition: New
• Recommended Use: Automatic Transmission
• Construction: Stacked Plate

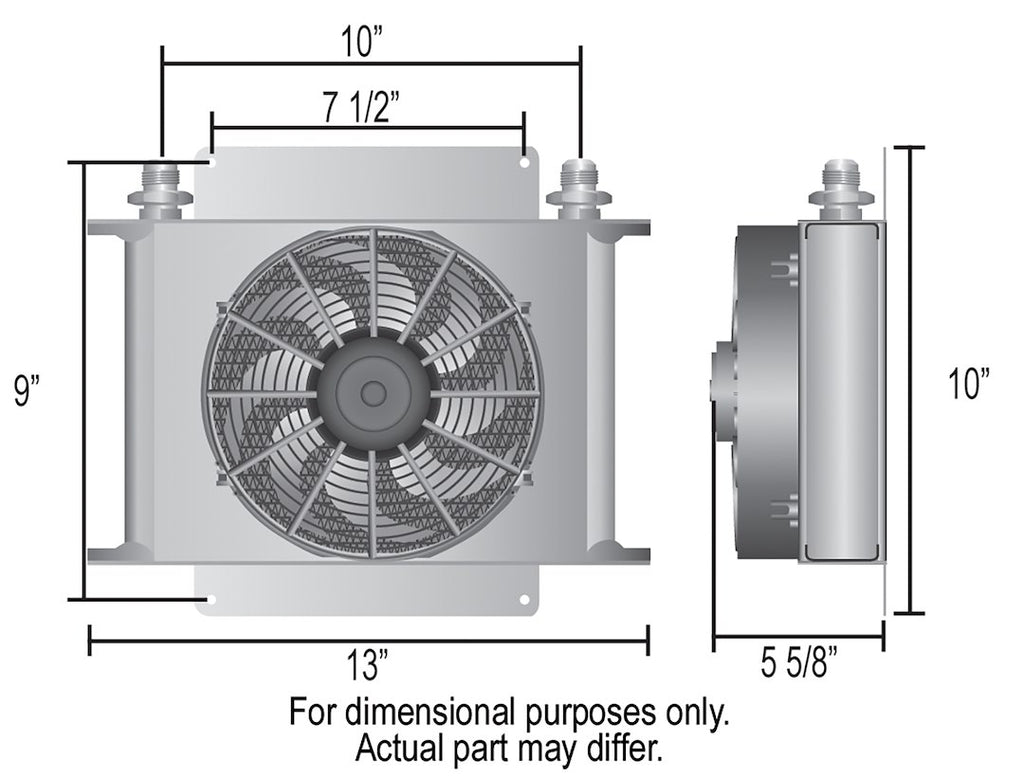

• Overall Height (IN): 10 Inch
• Overall Width (IN): 13 Inch
• Overall Depth (IN): 5-5/8 Inch
• Number Of Cooling Rows: 25
• Inlet Attachment: Male Threads
• Inlet Size: 3/8 Inch (-6 AN)
• Outlet Attachment: Male Threads
• Outlet Size: 3/8 Inch (-6 AN)
• Color: Black/ Silver
• Material: Aluminum
• With Fan: Yes
• Fan Control: Thermostatic Switch
• Core Width (IN): 10 Inch
• Finish: Anodized Shroud
• Fan CFM Rating: 500 CFM
• Fan Diameter: 8 Inch
• Fan Amp Draw: 4.8 Amp
• With Mounting Hardware: Yes

Technical Documents

• 13960.pdf
