Enhance transmission performance with efficient cooling technology.

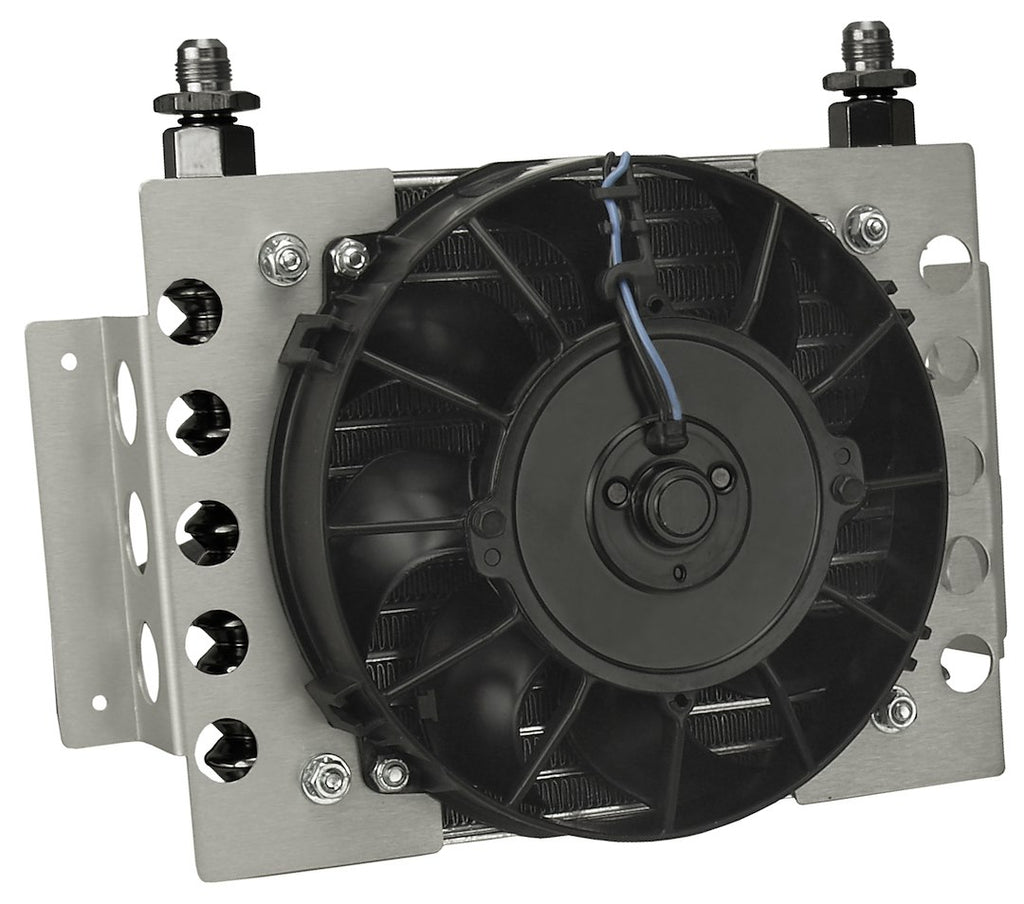

The Derale Fluid Cooler is engineered to provide superior cooling for automatic transmissions, making it an essential component for performance vehicles, hot rods, and trucks. With a robust plate and fin construction, this cooler is designed to withstand heavy-duty towing and hauling, significantly extending the life of your transmission. The unit features a powerful 500 CFM reversible electric fan that ensures optimal airflow, while the included 180-degree thermostatic switch automatically activates the fan when needed.

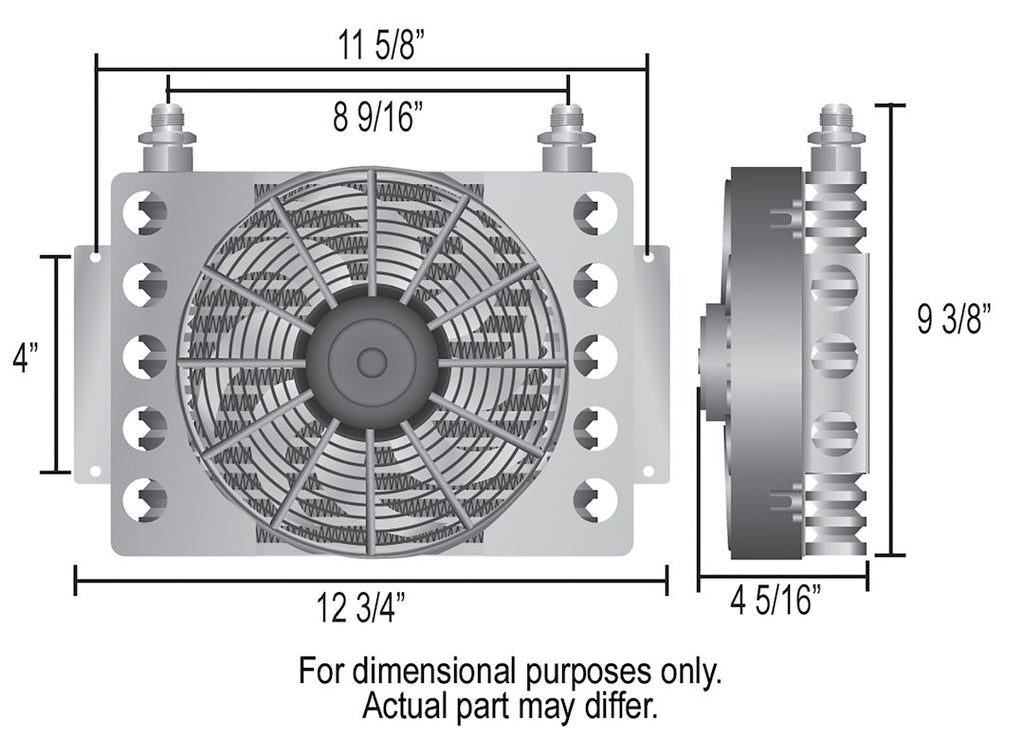

Measuring 12-3/4 inches in width, 9-3/8 inches in height, and 4-5/16 inches in depth, the cooler is compact yet highly efficient. It comes with clear anodized aluminum brackets for easy installation and can be mounted in various locations to suit your vehicle's layout. The cooler is compatible with 5/16 inch and 3/8 inch transmission cooler lines, making it versatile for different setups.

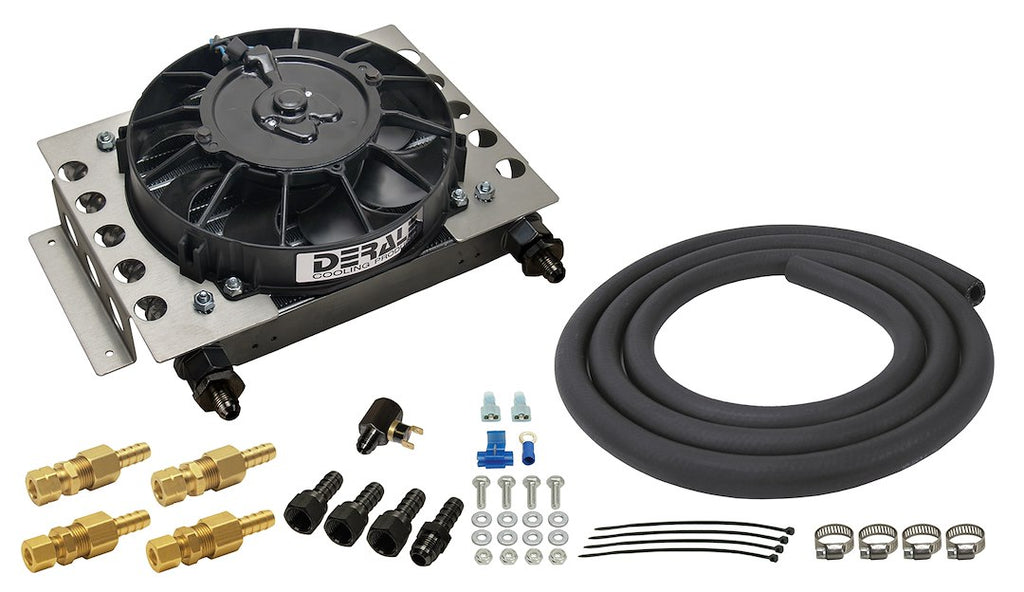

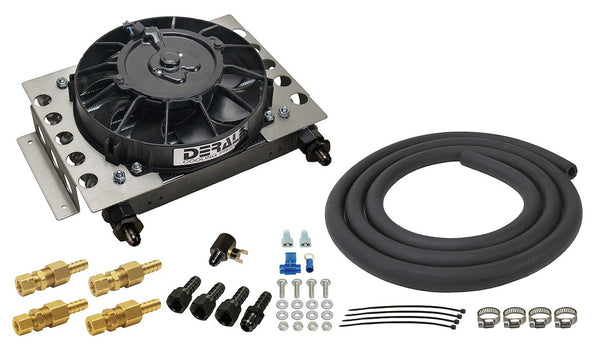

Included in the package are two aluminum -6 AN cooler fittings and two compression fittings, ensuring a complete installation kit for your convenience. The Derale Fluid Cooler not only improves transmission performance but also contributes to overall engine efficiency, making it a valuable addition to any automotive setup.
Features
- Electric Fan Supplies Optimum Airflow
- Dramatically Extends Engine And Transmission Life
- High Efficiency OEM Style Plate And Fin Cooler
- Clear Anodized Aluminum Brackets
- 500 CFM Reversible Tornado Electric Fan
- Mounts Anywhere Space Permits
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13950
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Plate And Fin
- Overall Height (IN): 9-3/8 Inch
- Overall Width (IN): 12-3/4 Inch
- Overall Depth (IN): 4-5/16 Inch
- Number Of Cooling Rows: 15
- Inlet Attachment: Male Threads
- Inlet Size: 3/8 Inch (-6 AN)
- Outlet Attachment: Male Threads
- Outlet Size: 3/8 Inch (-6 AN)
- Color: Black/ Silver
- Material: Aluminum
- With Fan: Yes
- Fan Control: 180 Degree Thermostatic Switch
- Core Width (IN): 8-9/16 Inch
- Finish: Powder Coated
- Fan CFM Rating: 500 Cubic Feet Per Minute
- Fan Diameter: 8 Inch
- Fan Amp Draw: 4.8 Amp
- With Mounting Hardware: Yes
