Efficient cooling solution for automatic transmission systems.

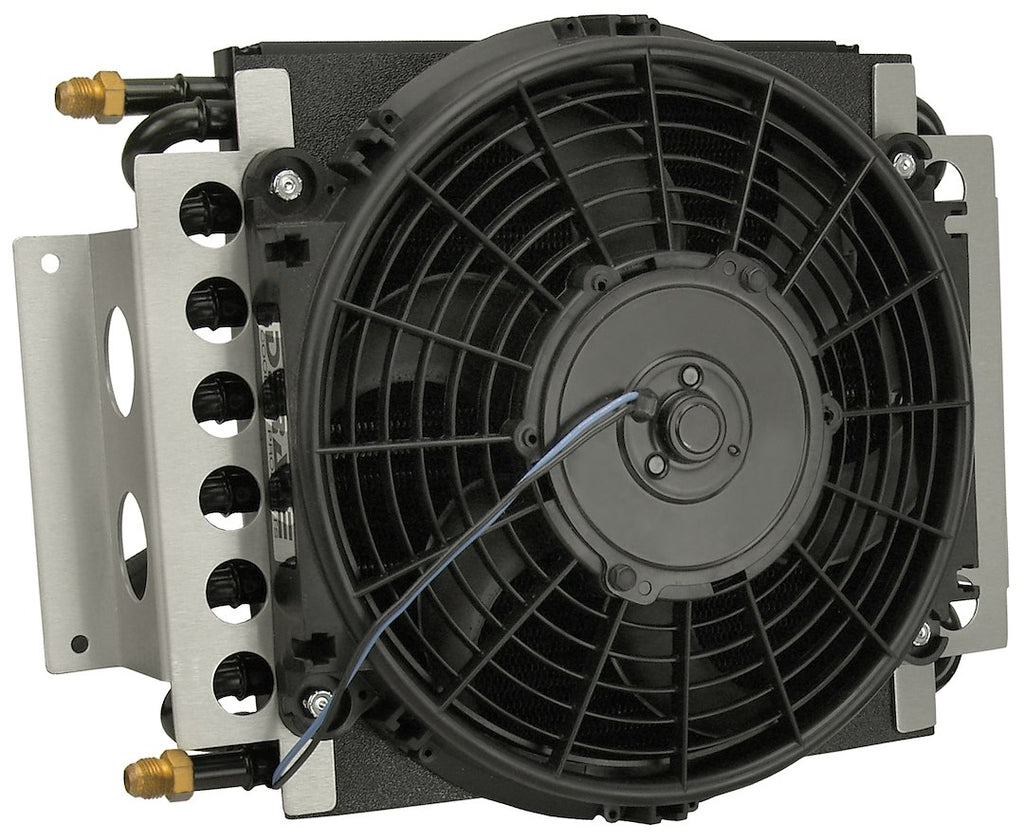

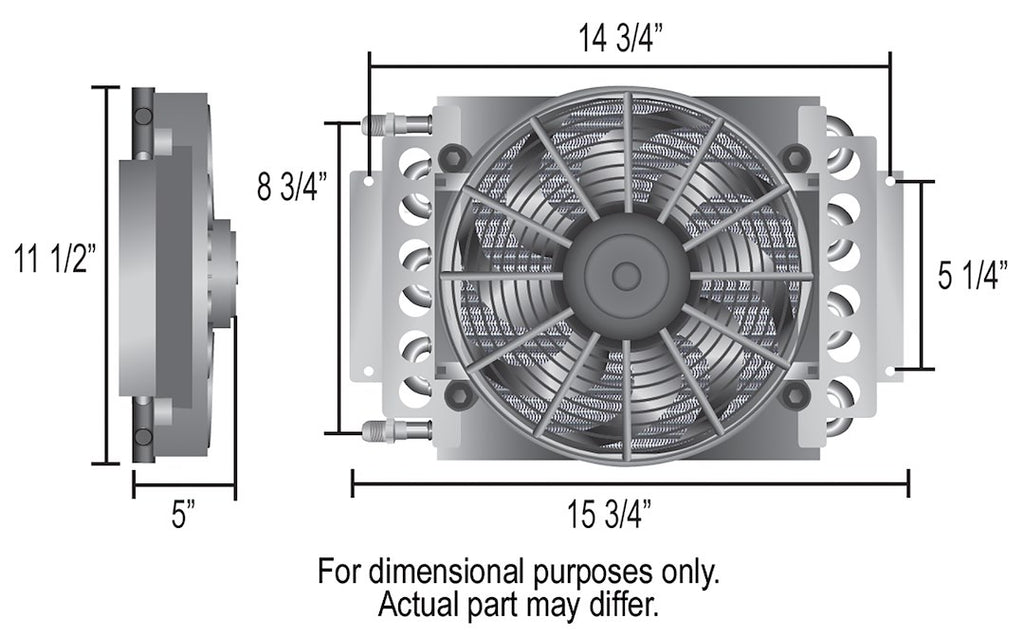

The Derale Fluid Cooler is designed to enhance the performance and longevity of automatic transmission systems. With a compact size of 15-3/4 inches in width, 11-1/2 inches in height, and 5 inches in depth, this cooler features a 16 pass tube and fin construction that maximizes heat dissipation. The included 650 cubic feet per minute reversible electric fan ensures optimal airflow, while the 180 degree Fahrenheit in-line thermostat automatically activates the fan when needed.

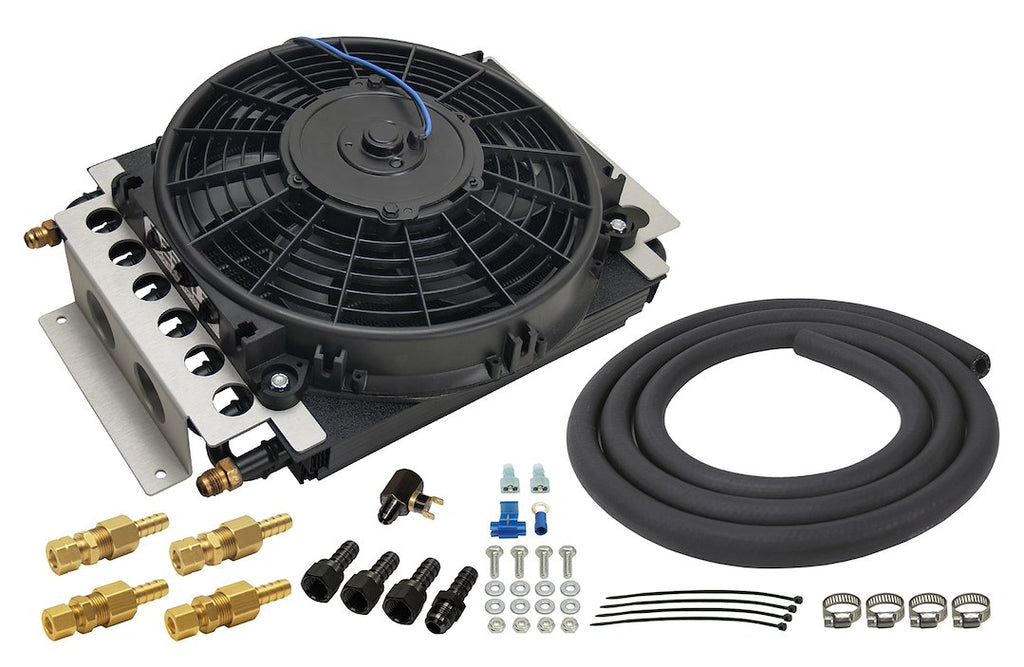

This fluid cooler is versatile and can be mounted in various locations, making it suitable for performance compacts, hot rods, muscle cars, and trucks. The kit comes complete with all necessary installation components, including aluminum brackets, hose barb connection adapters, and stainless steel clamps. The durable construction and efficient design contribute to extending the life of your transmission, making it a reliable choice for heavy-duty towing and hauling applications.
In addition to its robust features, the Derale Fluid Cooler is constructed from high-quality aluminum and finished in a sleek black and silver color. It is engineered to provide a trouble-free operation, ensuring that your vehicle's transmission remains cool under demanding conditions. This cooler is an essential component for maintaining optimal transmission performance.
Features
- Electric Fan Supplies Optimum Airflow
- Dramatically Extends Engine And Transmission Life
- 16 Pass Tube And Fin Cooler
- Clear Anodized Aluminum Brackets
- 650 CFM Reversible Tornado Electric Fan
- Mounts Anywhere Space Permits
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13900
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Tube And Fin
- Overall Height (IN): 11-1/2 Inch
- Overall Width (IN): 15-3/4 Inch
- Overall Depth (IN): 5 Inch
- Number Of Cooling Rows: 16
- Inlet Attachment: Male Threads
- Inlet Size: 3/8 Inch (-6 AN)
- Outlet Attachment: Hose Barb
- Outlet Size: 3/8 Inch (-6 AN)
- Color: Black/ Silver
- Material: Aluminum
- With Fan: Yes
- Fan Control: 180 Degree Thermostatic Switch
- Core Height (IN): 11-1/2 Inch
- Core Width (IN): 10 Inch
- Core Depth (IN): 3 Inch
- Finish: Painted
- Fan CFM Rating: 650 Cubic Feet Per Minute
- Fan Diameter: 10 Inch
- Fan Amp Draw: 5.3 Amp
- With Mounting Hardware: Yes
