Efficient cooling solution for engine oil and transmission fluids.

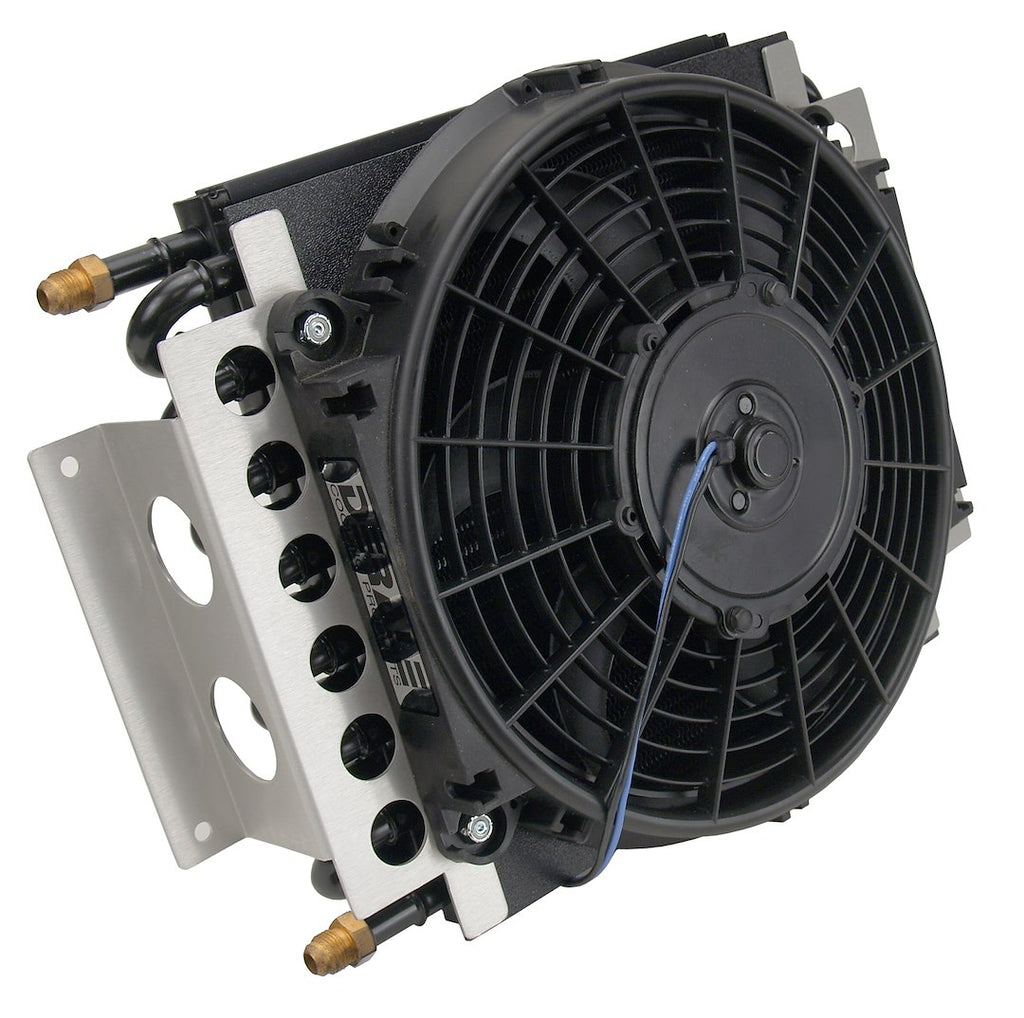

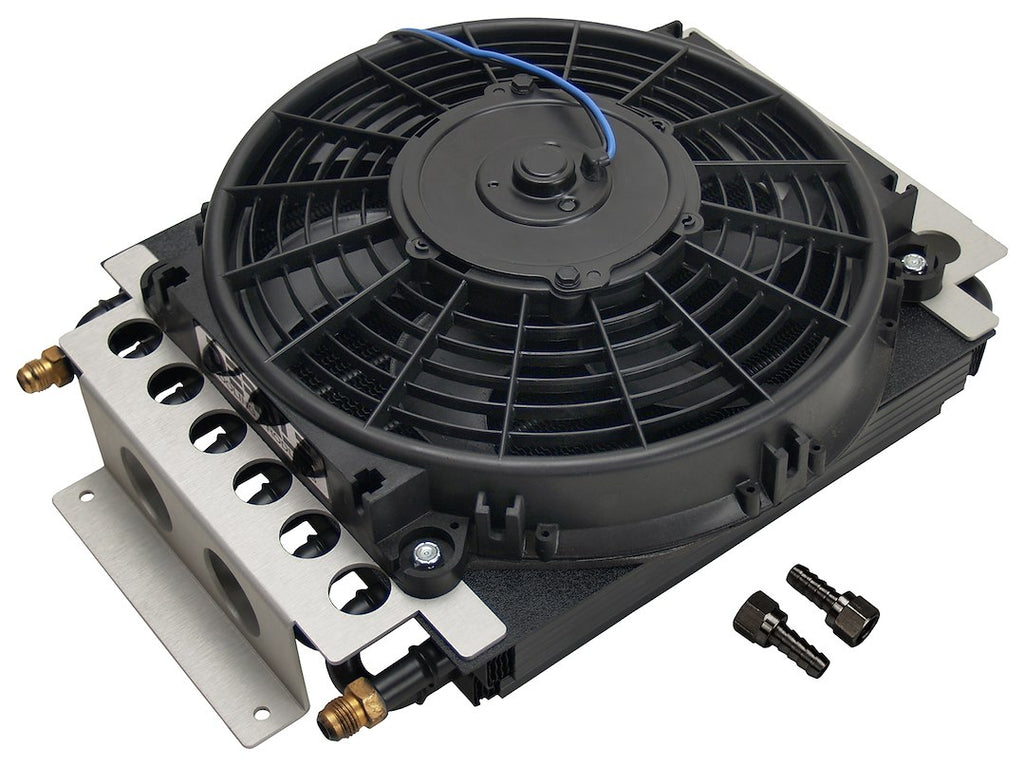

The Derale Fluid Cooler is designed to enhance the cooling efficiency of engine oil, transmission fluid, power steering fluid, and fuel. With a compact size of 15-3/4 inches in width, 11-1/2 inches in height, and 5 inches in depth, this cooler features a 16 pass tube and fin construction that maximizes heat dissipation. The unit is equipped with a 650 cubic feet per minute reversible electric fan, ensuring optimal airflow for effective cooling performance.
This versatile cooler can be mounted in various locations, making it suitable for performance compacts, hot rods, muscle cars, and trucks. The clear anodized aluminum brackets provide durability while the -6 AN male fittings and included hose barb connections facilitate easy installation. The electric fan operates efficiently, drawing 5.3 amps, and significantly extends the life of engine and transmission components by maintaining lower operating temperatures.
Constructed from high-quality copper and aluminum materials, the Derale Fluid Cooler is built to withstand demanding conditions. Its painted finish adds a sleek look while ensuring longevity. This cooler is an essential component for any vehicle requiring reliable fluid cooling solutions.
Features
- Mounts Anywhere Space Permits
- Electric Fan Supplies Optimum Airflow
- Dramatically Extends Engine And Transmission Life
- 16 Pass Tube And Fin Cooler
- Clear Anodized Aluminum Brackets
- 650 CFM Reversible Tornado Electric Fan
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13700
- Condition: New
- Recommended Use: Engine Oil/ Transmission Fluid/ Power Steering Fluid/ Fuel
- Construction: Tube And Fin

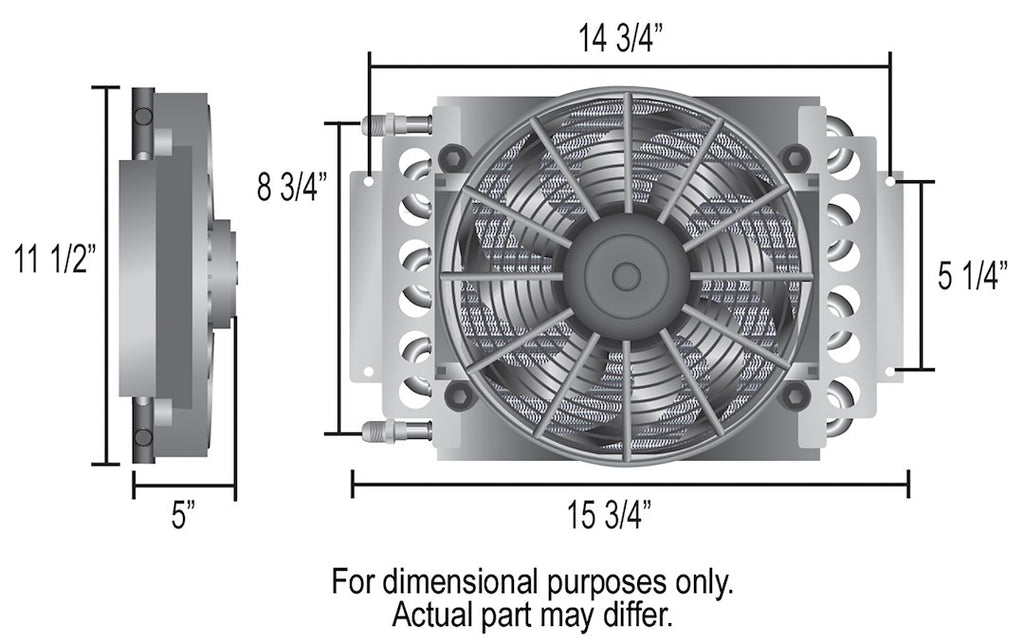

- Overall Height (IN): 11-1/2 Inch
- Overall Width (IN): 15-3/4 Inch
- Overall Depth (IN): 5 Inch
- Number Of Cooling Rows: 16
- Inlet Attachment: Male Threads
- Inlet Size: 3/8 Inch (-6 AN)
- Outlet Attachment: Male Threads
- Outlet Size: 3/8 Inch (-6 AN)
- Color: Black/ Silver
- Material: Copper/ Aluminum
- With Fan: Yes
- Fan Control: Electric
- Core Height (IN): 11-1/2 Inch
- Core Width (IN): 12.37 Inch
- Core Depth (IN): 1.750 Inch
- Finish: Painted
- Fan CFM Rating: 650 Cubic Feet Per Minute
- Fan Diameter: 10 Inch
- Fan Amp Draw: 5.3 Amp
- With Mounting Hardware: No
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
