Derale Fluid Cooler (MPN: 13300)

High-performance cooler for transmission fluid and engine oil applications.

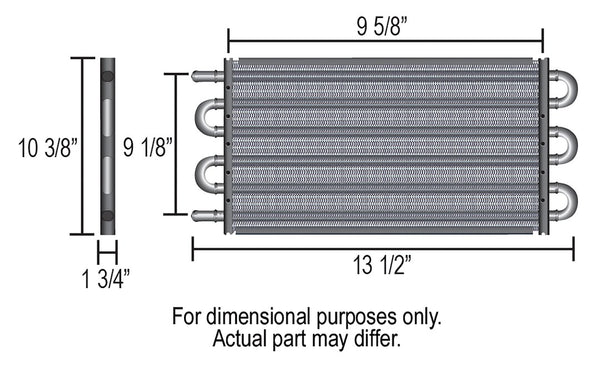

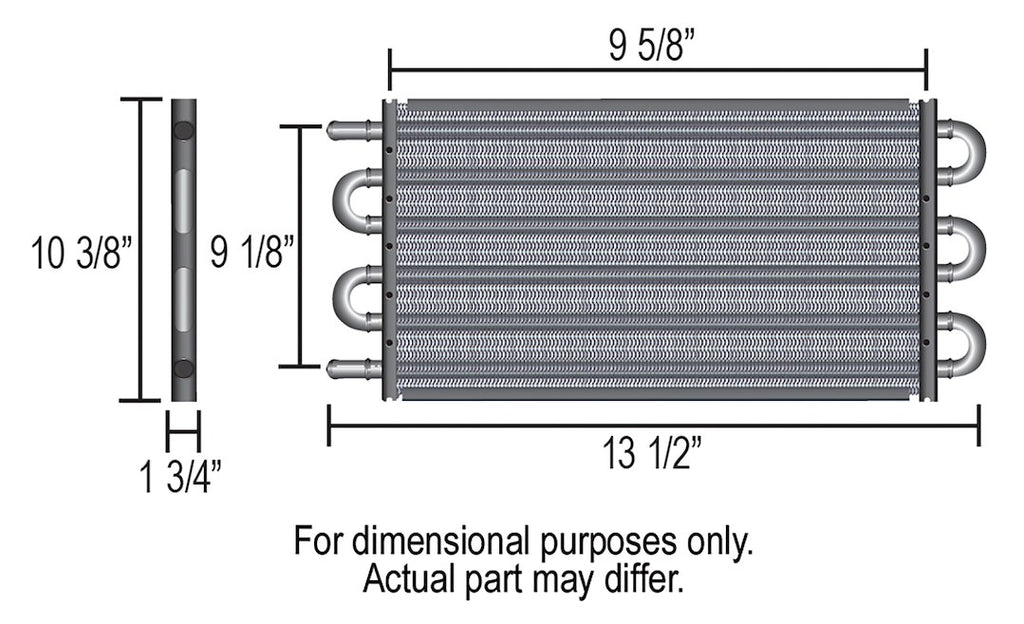

The Derale Fluid Cooler is designed to enhance the cooling efficiency of transmission fluid and engine oil systems. With a robust construction featuring 1/2 inch copper tubing and aluminum cooling fins, this cooler utilizes a 16 pass design that maximizes heat transfer capabilities. The embossed turbulators within the tubing ensure optimal fluid flow, contributing to superior cooling performance. Measuring 15-3/4 inches in width, 11-1/2 inches in height, and 5 inches in depth, this cooler is compact yet effective for various automotive applications.

This cooler is equipped with -6AN inlet and outlet fittings, making it compatible with a range of setups. The extruded plastic cooling fin guards provide additional protection, ensuring durability in demanding environments. The powder-coated finish not only enhances the aesthetic appeal but also adds to the longevity of the unit. Designed for easy installation, the cooler core is a direct replacement for the Electra-Cool Remote Oil and Transmission Coolers, making it a practical choice for those seeking reliable cooling solutions.

Features

• Replacement 16 Pass Tube And Fin Style Cooler Core For -6AN Electra-Cool Remote Oil And Transmission Coolers
• 1/2 Inch Copper Tubing Expanded Into Aluminum Cooling Fins
• Extruded Plastic Cooling Fin Guards
• Comes With Cooler Core Only

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 13300
• Condition: New
• Recommended Use: Transmission Fluid/ Engine Oil
• Construction: Tube And Fin
• Overall Height (IN): 11-1/2 Inch
• Overall Width (IN): 15-3/4 Inch
• Overall Depth (IN): 5 Inch
• Number Of Cooling Rows: 16
• Inlet Attachment: Male Threads
• Inlet Size: 3/8 Inch (-6 AN)
• Outlet Attachment: Male Threads
• Outlet Size: 3/8 Inch (-6 AN)
• Color: Black
• Material: Copper/ Aluminum
• With Fan: No
• Fan Control: No Fan
• Core Height (IN): 11-1/2 Inch
• Finish: Powder Coated
• Fan CFM Rating: No Fan
• Fan Diameter: No Fan
• Fan Amp Draw: No Fan
• With Mounting Hardware: No
