Enhance transmission performance with efficient heat management.

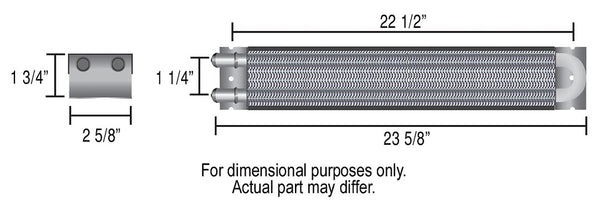

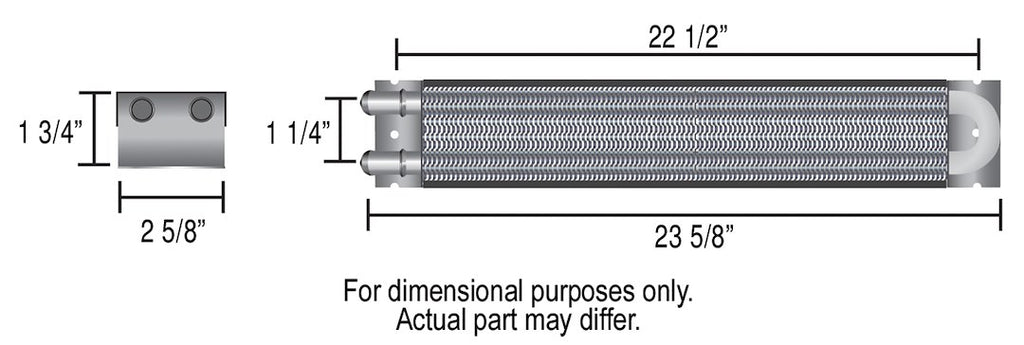

The Derale Fluid Cooler is designed to effectively manage transmission fluid temperatures, preventing heat-related failures and extending the life of automatic transmissions. With a compact design measuring 23-5/8 inches in width, 2-5/8 inches in depth, and 1-3/4 inches in height, this cooler is suitable for frame mounting in tight spaces. It features a tube and fin construction with 1/2 inch copper tubing expanded into aluminum cooling fins, ensuring optimal heat transfer through embossed turbulators that agitate the fluid.

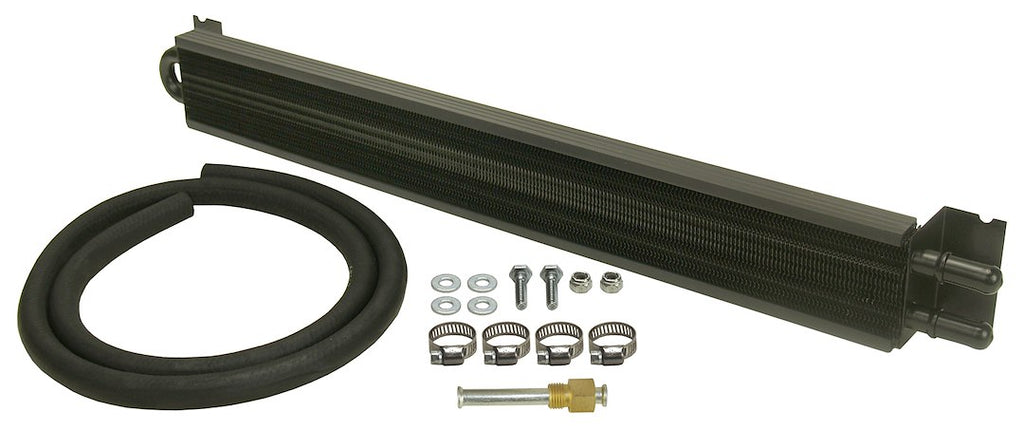

This cooler includes 11/32 inch hose barb connections for both inlet and outlet, making installation straightforward with the complete hardware kit provided. The two-pass design enhances cooling efficiency, making it a reliable choice for maintaining transmission performance under various operating conditions. The extruded plastic cooling fin guards add durability, ensuring the cooler withstands the rigors of automotive applications.
Features
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life. Extruded Plastic Cooling Fin Guards
- Improves Transmission Performance
- Embossed Turbulators Inserted In Each Tube Agitate Fluid For Maximum Heat Transfer
- 1/2 Inch Copper Tubing Expanded Into Aluminum Cooling Fins
- 11/32 Inch Hose Barb Inlets
- Complete Hardware Kit Included
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 13224
- Condition: New
- Recommended Use: Automatic Transmission
- Construction: Tube And Fin
- Overall Height (IN): 2-1/2 Inch
- Overall Width (IN): 23-5/8 Inch
- Overall Depth (IN): 2-5/8 Inch
- Number Of Cooling Rows: 2
- Inlet Attachment: Hose Barb
- Inlet Size: 0.34 Inch
- Outlet Attachment: Hose Barb
- Outlet Size: 0.34 Inch
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Height (IN): 2-1/2 Inch
- Core Width (IN): 24 Inch
- Core Depth (IN): 1.50 Inch
- Finish: Painted
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
