High capacity cooler reduces oil and coolant temperatures effectively.
The Derale Engine Oil Cooler is designed to enhance engine performance by efficiently managing oil temperatures. With a compact size of 16-5/8 inches in width and 7-5/8 inches in height, this cooler features a 6-pass design that maximizes heat exchange, allowing for a reduction in oil temperature by up to 50 degrees Fahrenheit. Constructed with a combination of copper tubes and aluminum fins, it ensures durability and effective cooling for various passenger vehicles.

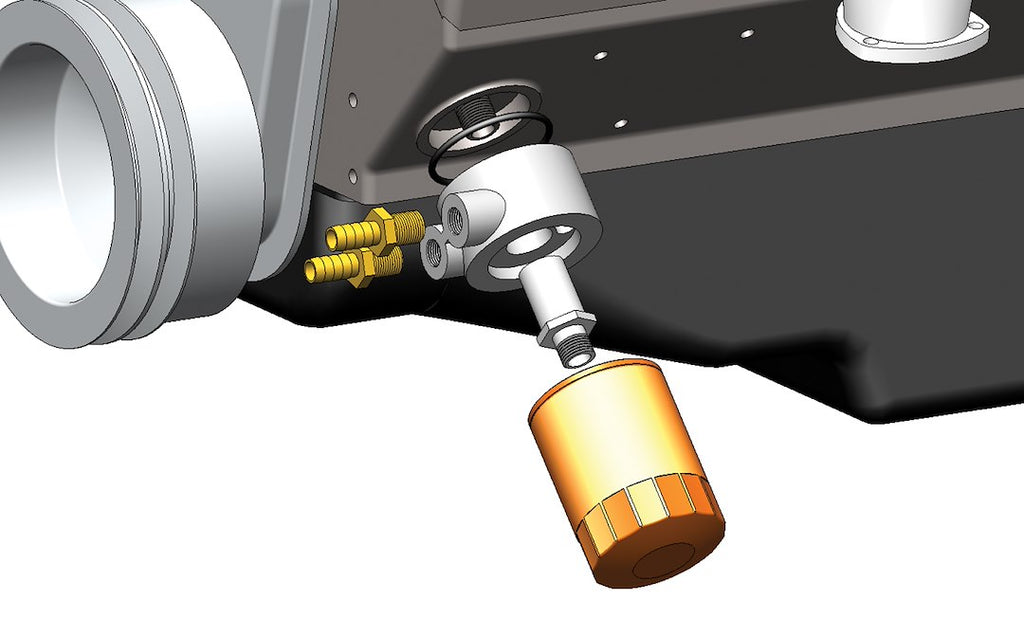

This universal cooler kit includes a hose barb connection with a 1/2 inch inlet and outlet, making installation straightforward. The complete hardware kit comes with a type B sandwich adapter and O-ring, providing everything necessary for a seamless setup. By lowering oil temperatures, the Derale cooler not only extends the life of engine oil but also contributes to reduced coolant temperatures, promoting overall engine longevity.
The cooler's robust construction and efficient design make it suitable for stock to mild street use, ensuring reliable performance under various driving conditions. With its painted finish and compact dimensions, the Derale Engine Oil Cooler is an essential component for maintaining optimal engine health.
Features
- Can Reduce Oil Temperature Up To 50 Degree Fahrenheit
- Helps Reduce Coolant Temperatures
- Extends Engine Life

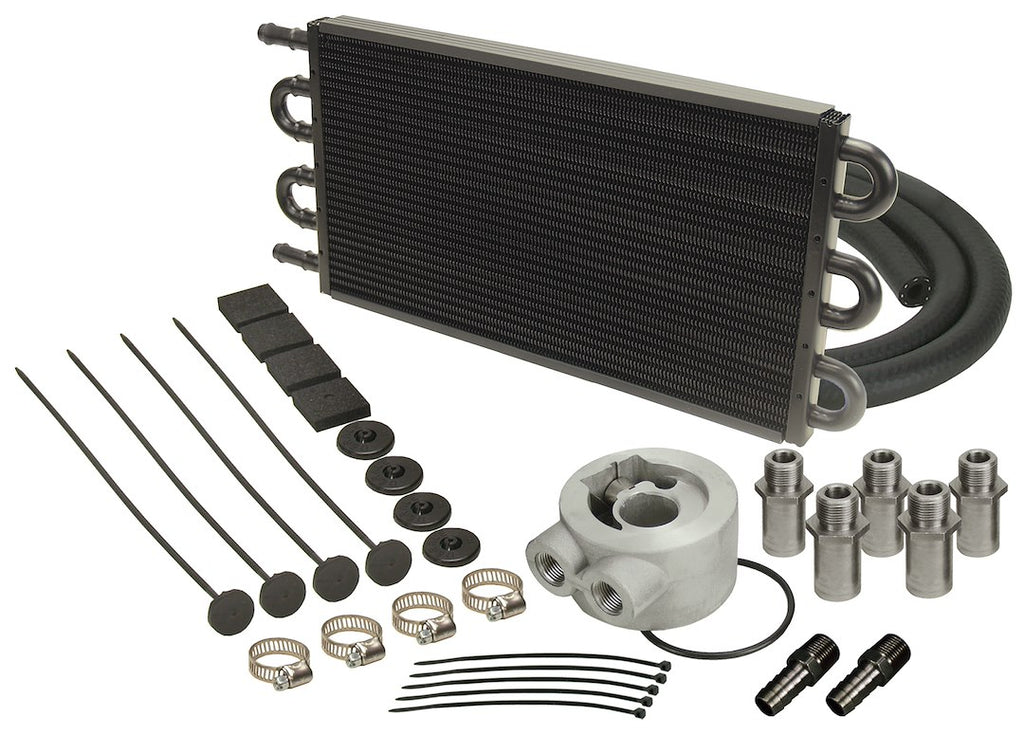

- Complete Hardware Kit Included
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 15502
- Condition: New
- Recommended Use: Engine Oil
- Construction: Tube And Fin

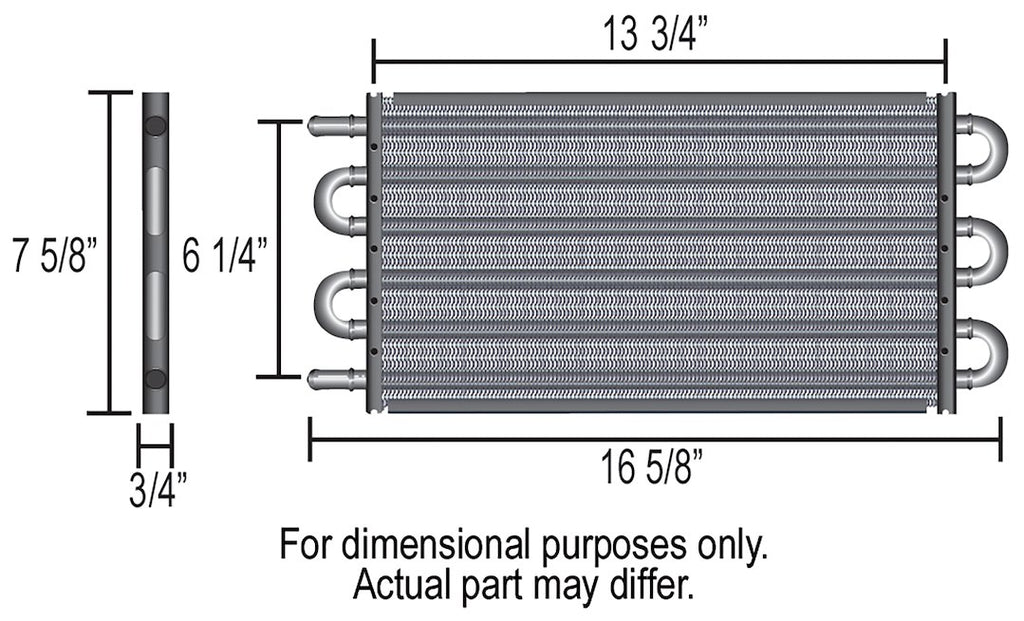

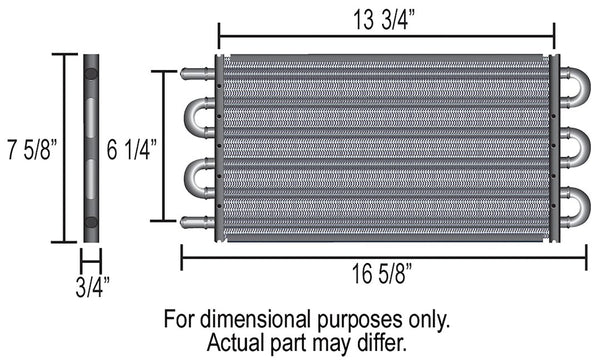

- Overall Height (IN): 7-5/8 Inch
- Overall Width (IN): 16-5/8 Inch
- Overall Depth (IN): 3/4 Inch
- Number Of Cooling Rows: 6
- Inlet Attachment: Hose Barb
- Inlet Size: 1/2 Inch (-8 AN)
- Outlet Attachment: Hose Barb
- Outlet Size: 1/2 Inch (-8 AN)
- Color: Black
- Material: Copper/ Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Height (IN): 7-5/8 Inch
- Core Width (IN): 13-3/4 Inch
- Core Depth (IN): 0.750 Inch
- Finish: Painted
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: Yes
