Derale Electric Cooling Fan (MPN: 16910)

High-performance fan with reversible design for versatile airflow options.

The Derale Electric Cooling Fan is engineered to deliver efficient airflow with a maximum output of 625 Cubic Feet Per Minute. This 10-inch diameter fan features a low profile design and straight blades, allowing it to fit in tight spaces while providing optimal cooling performance. The fan can be used in either a pusher or puller configuration, making it adaptable for various installation needs.

Constructed with 10 durable plastic blades, this fan operates at a maximum RPM of 2460, drawing only 6.4 Amperes of current. The included mounting hardware ensures a straightforward installation process, complete with illustrated instructions. The fan is designed without a shroud, allowing for flexible placement in your cooling system.

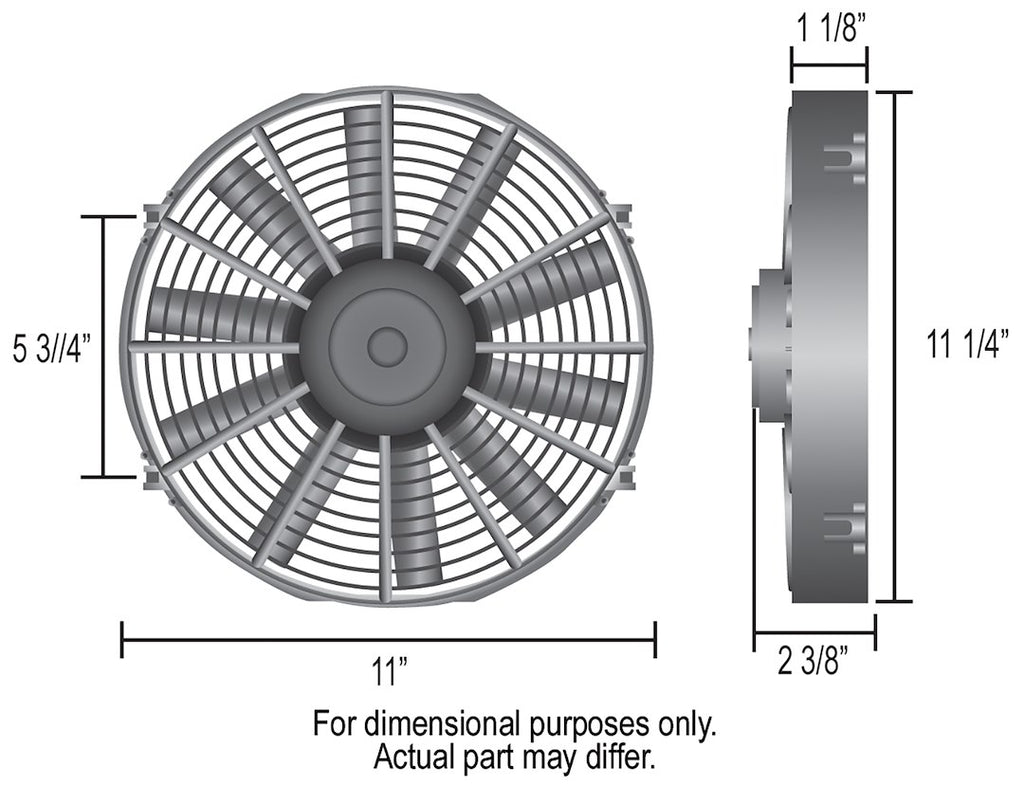

With a fuse rating of 20 Amps and a thermostat controller type, the Derale Electric Cooling Fan is built for reliability and efficiency. Its compact dimensions of 11 inches in width, 11-1/4 inches in height, and 2-3/8 inches in depth make it a versatile choice for various automotive applications.

Features

• Ultra Low Profile Design
• Straight Fan Blades
• Reversible Design Can Be Used As A Pusher Or Puller

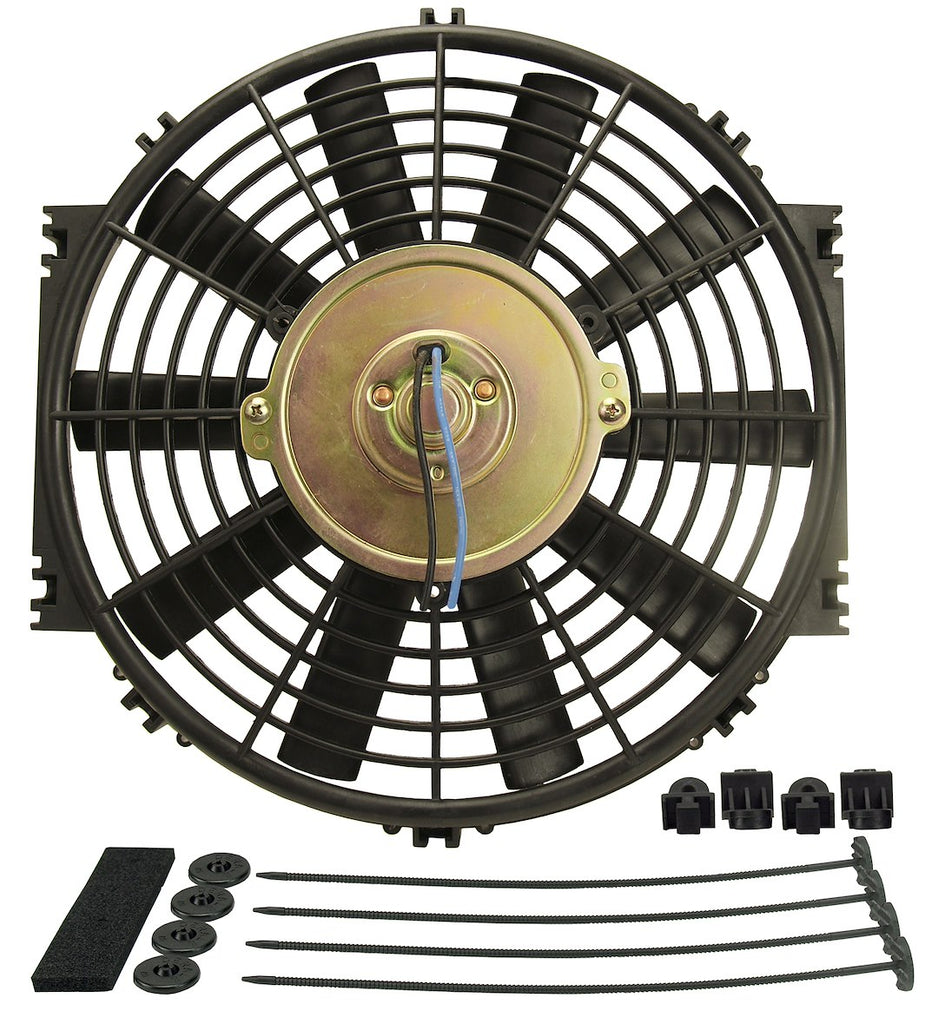

• Mounting Hardware And Illustrated Installation Instructions Included

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 16910
• Condition: New
• Type: Electric
• Diameter: 10 Inch
• Height: 11-1/4 Inch
• Width: 11 Inch
• Depth: 2-3/8 Inch
• Maximum CFM: 625 Cubic Feet Per Minute
• Maximum RPM: 2460 RPM
• Rotation Direction: Pusher/ Puller
• Fuse Rating: 20 Amp
• Controller Type: Thermostat
• Amperage Draw: 6.4 Amp
• Number Of Blades: 10
• Blade Color: Black
• Blade Material: Plastic
• Shroud Material: No Shroud

Technical Documents

• 16910.pdf
