High performance electric fan with efficient cooling capabilities.

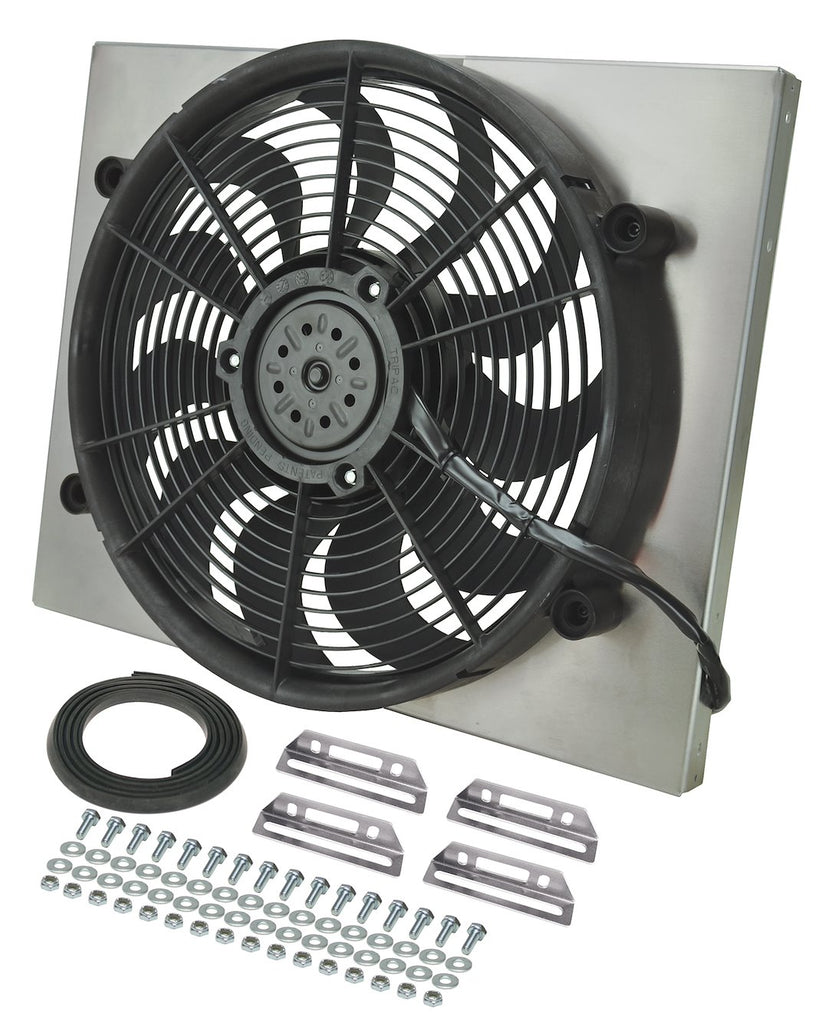

The Derale Electric Cooling Fan is engineered for optimal performance in a variety of domestic and import vehicles. With a diameter of 17 inches and a high output motor rated at 265 watts, this fan delivers impressive airflow of up to 2400 cubic feet per minute at high speed and 1800 cubic feet per minute at low speed. Its patented skewed blade design ensures ultra-quiet operation while maximizing cooling efficiency under high static pressure loads.
Constructed with an aircraft quality natural satin aluminum shroud, this fan module not only provides durability but also allows for customization through polishing, painting, or anodizing. The design includes multiple mounting options and is specifically a puller application, making it suitable for engine side installations. With over 90 percent core coverage efficiency, this fan module outperforms many competitors, offering a reliable solution for those seeking enhanced cooling performance.
The Derale Electric Cooling Fan is compatible with various vehicles and eliminates the need for traditional belt-driven fans, which can rob fuel and horsepower. This innovative cooling solution is designed to meet the demands of modern automotive cooling systems, ensuring that your engine operates at optimal temperatures.
Features
- Powerful, Primary Cooling Fan Eliminates Fuel And Horsepower Robbing Belt Driven Fans. Aircraft Quality Natural Satin Aluminum Finish Can Be Polished, Painted Or Anodized
- High Output 265 Watt Motor
- Designed For Maximum Performance At High Static Pressure Loads For More Effective Cooling
- Ultra Quiet Patented Skewed Blade Design
- Multiple Mounting Options
- Puller (Engine Side) Applications Only
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 16823
- Condition: New
- Type: Electric

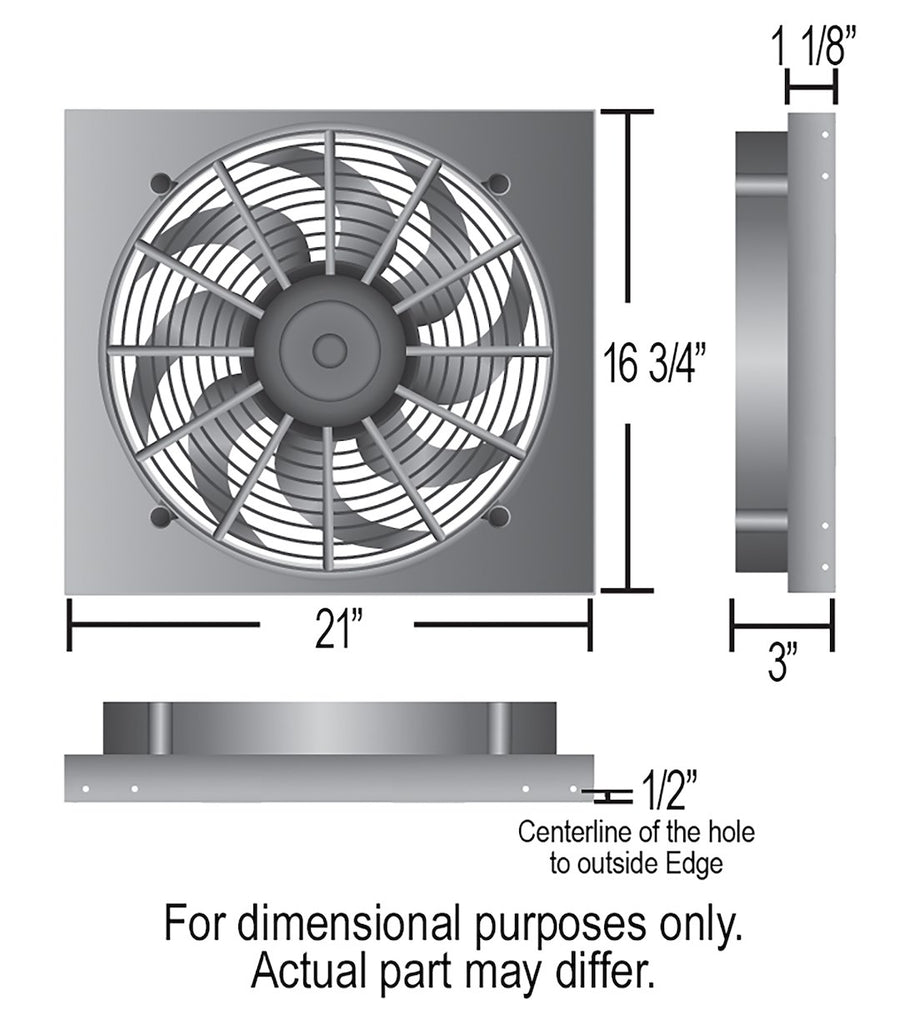

- Diameter: 17 Inch
- Height: 16-3/4 Inch
- Width: 21 Inch
- Depth: 3 Inch
- Maximum CFM: 2400 Cubic Feet Per Minute
- Rotation Direction: Puller
- Fuse Rating: 30 Amp
- Controller Type: Thermostat
- Amperage Draw: 23.5 Amp
- Number Of Blades: 11
- Blade Color: Black
- Shroud Material: Aluminum
- Voltage: 12 Volt
