High output fan with customizable aluminum shroud for effective cooling.
The Derale Electric Cooling Fan is engineered for high performance in demanding applications. With a diameter of 17 inches, this fan delivers an impressive airflow of 2400 cubic feet per minute at high speed, ensuring optimal cooling efficiency. The fan features a two-speed motor, allowing users to select between high and low settings for versatile operation. Designed with an 11-blade configuration and a patented skewed blade design, it operates quietly while maintaining high static pressure loads for effective cooling.

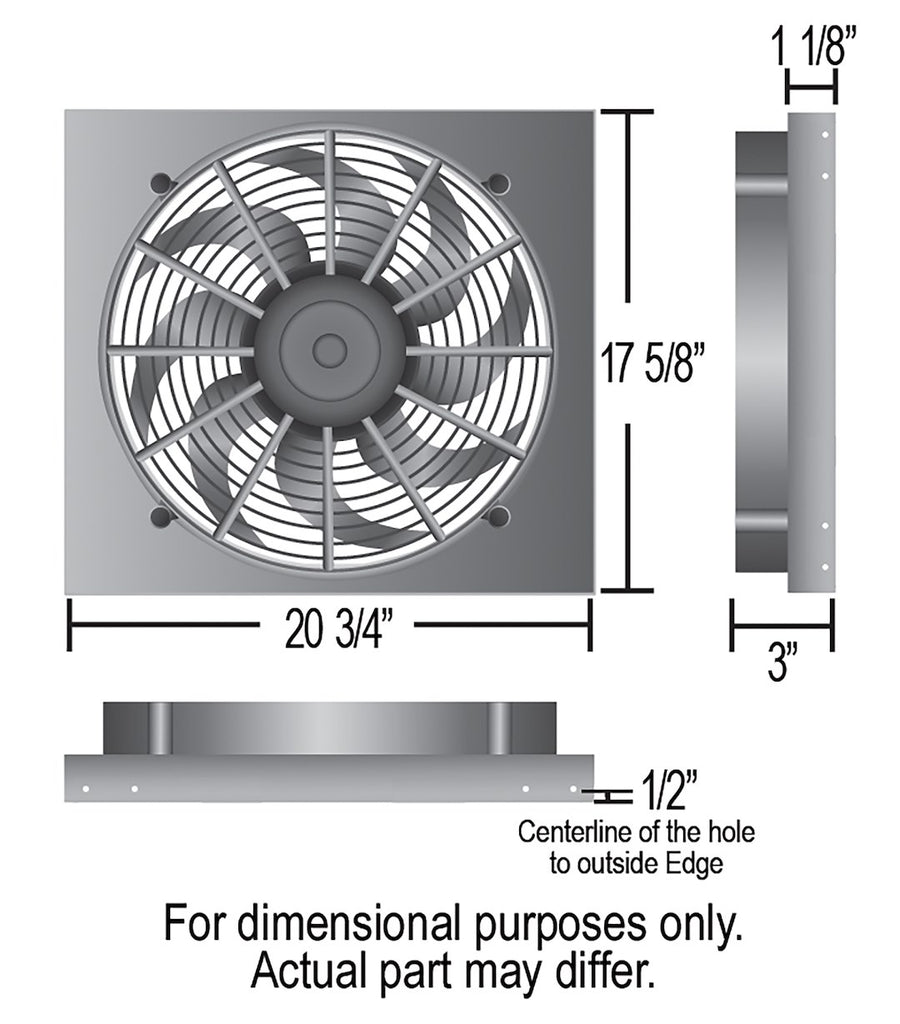

Constructed with a durable aluminum shroud, this fan offers customization options, allowing users to polish, anodize, or paint the surface to match their aesthetic preferences. The compact dimensions of 20-3/4 inches in width, 17-5/8 inches in height, and only 3 inches in depth make it suitable for various installations. The fan is designed for puller applications, ensuring efficient airflow towards the engine, and comes with a comprehensive mounting kit and illustrated installation instructions for easy setup.
With a robust 265-watt motor and a fuse rating of 30 amps, the Derale Electric Cooling Fan is built to handle the demands of high-performance environments. Its versatility and performance make it a reliable choice for those seeking to enhance their cooling systems.
Features
- Powerful Primary Cooling Fan Eliminates Fuel And Horsepower Robbing Belt Driven Fans
- High Output 265 Watt 2 Speed Motor
- Designed For Maximum Performance At High Static Pressure Loads For Effective Cooling
- Ultra Quiet Patented Skewed Blade Design
- Puller (Engine Side) Applications Only
- Aircraft Quality Natural Satin Aluminum Finish Can Be Polished, Painted Or Anodized
- Multiple Mounting Options. All Include Mounting Kit With Illustrated Installation Instructions
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 16821
- Condition: New
- Type: Electric
- Diameter: 17 Inch
- Height: 17-5/8 Inch
- Width: 20-3/4 Inch
- Depth: 3 Inch
- Maximum CFM: 2400 Cubic Feet Per Minute
- Rotation Direction: Puller
- Fuse Rating: 30 Amp
- Controller Type: Thermostat
- Amperage Draw: 23.5 Amp/ 17.4 Amp
- Number Of Blades: 11
- Blade Color: Black
- Blade Material: Plastic
- Shroud Material: Aluminum
- Voltage: 12 Volt
