High output fan with customizable aluminum shroud for effective cooling.

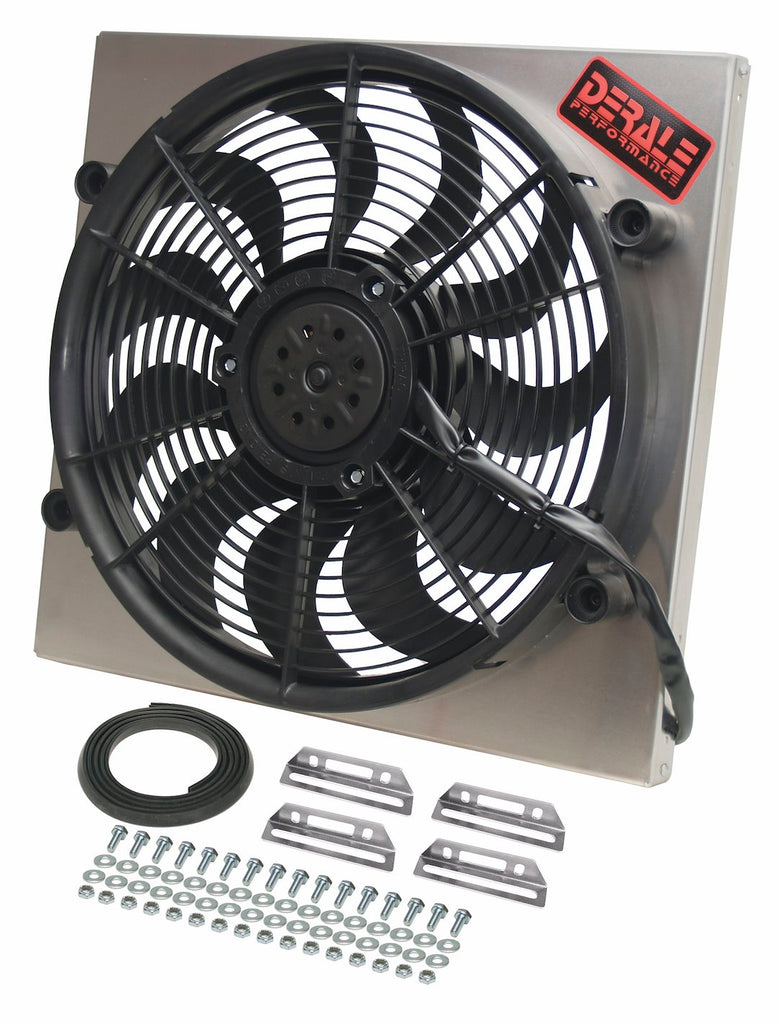

The Derale Electric Cooling Fan is engineered for high performance in demanding applications. With a diameter of 17 inches, this fan delivers an impressive airflow of 2400 cubic feet per minute at high speed, ensuring efficient cooling in compact spaces. The fan features a two-speed motor, allowing users to select the optimal speed for their cooling needs, while its patented skewed blade design minimizes noise during operation.
Constructed with an aircraft quality natural satin aluminum shroud, this fan not only provides durability but also offers customization options. Users can choose to polish, anodize, or paint the shroud to match their specific aesthetic preferences. The fan is designed for puller applications, making it suitable for installation on the engine side, and includes multiple mounting options for versatile installation.
With a robust 265-watt motor and a total of 11 blades, the Derale Electric Cooling Fan is built to handle high static pressure loads, making it an effective solution for cooling in various automotive and industrial settings. The included mounting kit comes with illustrated installation instructions, ensuring a straightforward setup process.
Features
- Powerful Primary Cooling Fan Eliminates Fuel And Horsepower Robbing Belt Driven Fans
- High Output 265 Watt 2 Speed Motor
- Designed For Maximum Performance At High Static Pressure Loads For Effective Cooling
- Ultra Quiet Patented Skewed Blade Design
- Puller (Engine Side) Applications Only
- Aircraft Quality Natural Satin Aluminum Finish Can Be Polished, Painted Or Anodized
- Multiple Mounting Options. All Include Mounting Kit With Illustrated Installation Instructions
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 16819
- Condition: New
- Type: Electric

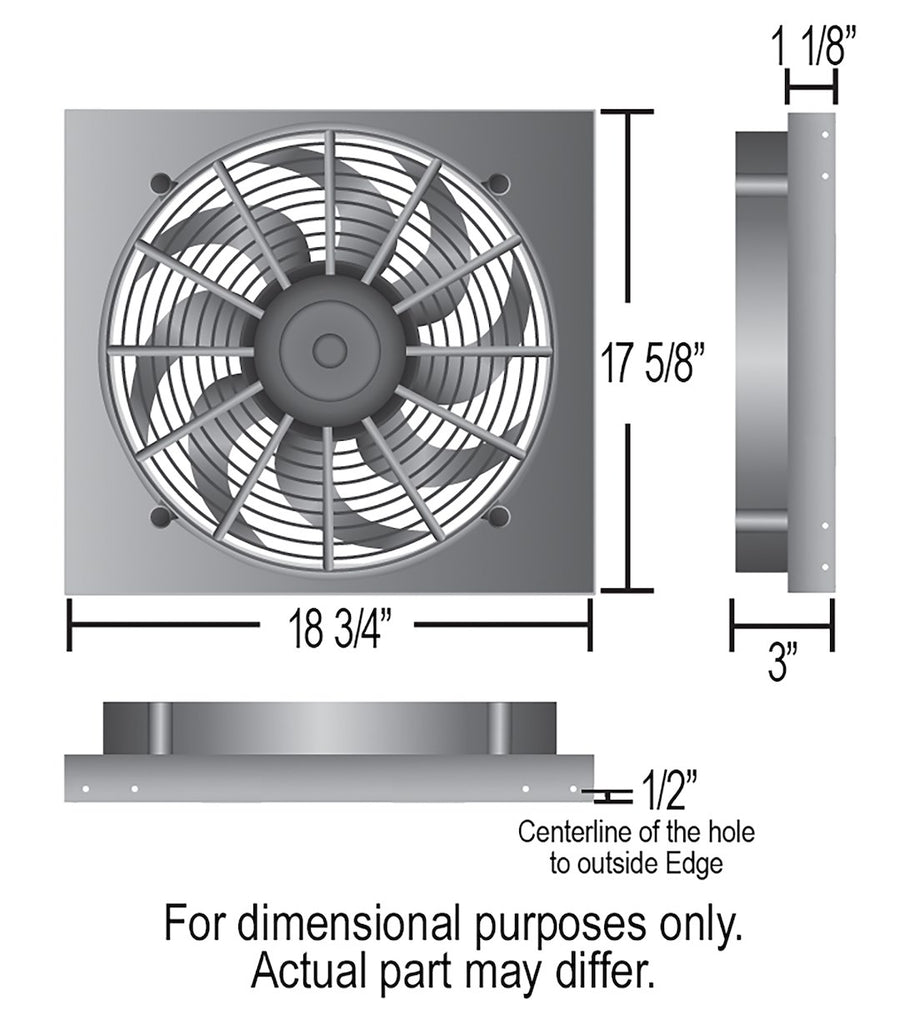

- Diameter: 17 Inch
- Height: 17-5/8 Inch
- Width: 18-3/4 Inch
- Depth: 3 Inch
- Maximum CFM: 2400 Cubic Feet Per Minute
- Rotation Direction: Puller
- Fuse Rating: 30 Amp
- Controller Type: Thermostat
- Amperage Draw: 23.5 Amp/ 17.4 Amp
- Number Of Blades: 11
- Blade Color: Black
- Blade Material: Plastic
- Shroud Material: Aluminum
- Voltage: 12 Volt
