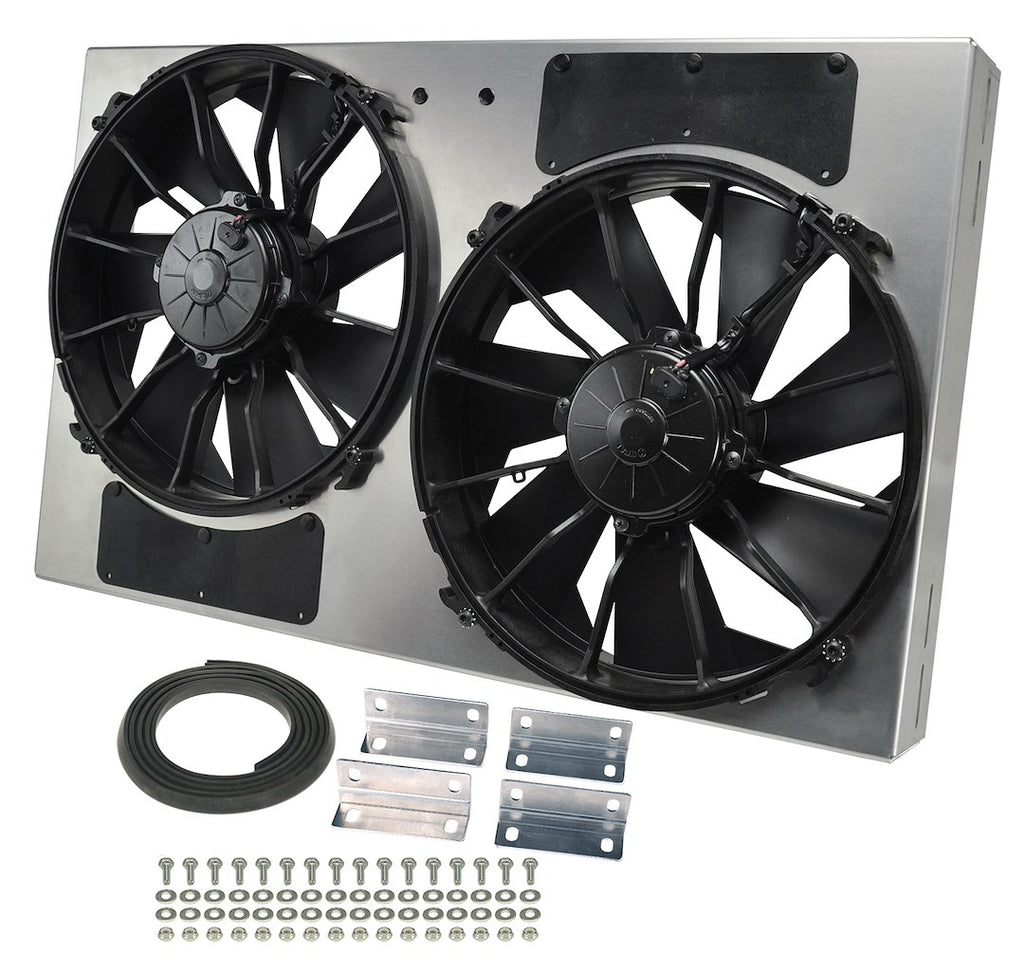

Derale Dual High Output Electric Fan Assembly (MPN: 16836)

High performance cooling with customizable aluminum shroud design.

The Derale Dual High Output Electric Fan Assembly is engineered for effective primary cooling applications. Featuring dual 12 inch high output electric fans, this assembly delivers an impressive airflow of 4000 Cubic Feet Per Minute, making it one of the most efficient cooling solutions available. The raw aluminum shroud allows for customization, enabling users to polish, anodize, or paint the surface to match their specific aesthetic preferences.

This fan assembly is equipped with a powerful 300 Watt motor and utilizes a patented skewed blade design that ensures ultra-quiet operation while maximizing airflow. With multiple mounting options, it can be easily integrated into various setups, providing versatility for different cooling needs. The puller configuration enhances airflow efficiency, making it suitable for a range of applications.

Constructed with durability in mind, the aluminum shroud not only contributes to the fan's lightweight design but also offers resistance to corrosion. The assembly is designed to operate at a maximum RPM of 4000, drawing 24.8 amps, ensuring reliable performance under demanding conditions. This fan assembly is a practical choice for those seeking high airflow in a compact form factor.

Features

• Designed For Primary Cooling
• Raw Aluminum Shroud Construction Can Be Polished, Painted Or Anodized
• High Output 300 Watt Motor
• Ultra-Quiet Patented Skewed Blade Design
• Multiple Mounting Options

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 16836
• Condition: New
• Type: Electric

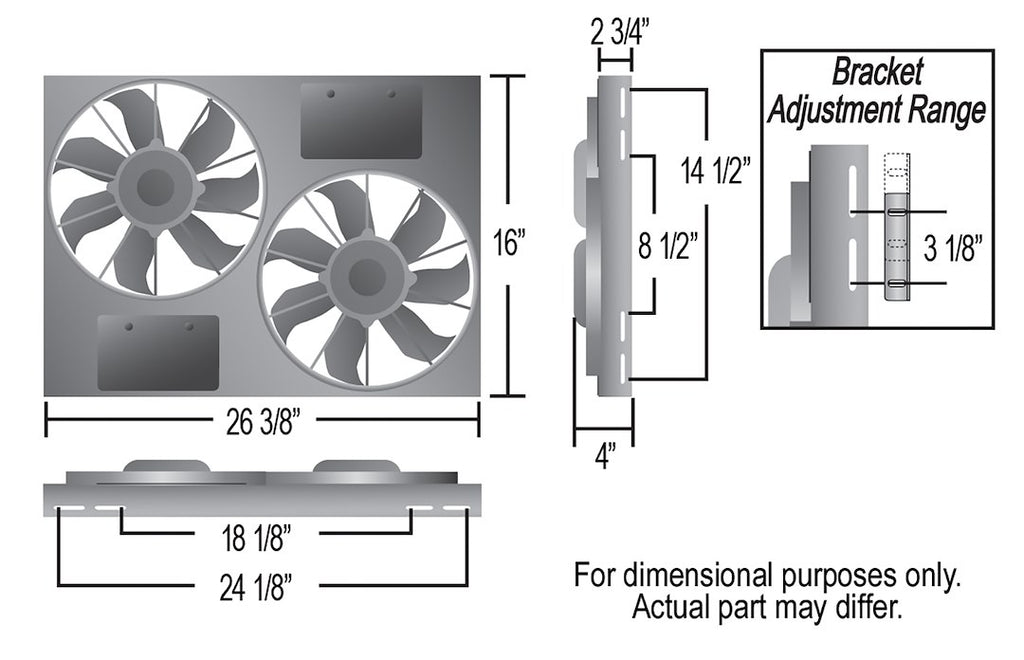

• Diameter: 12 Inch
• Height: 16 Inch
• Width: 26-3/8 Inch
• Depth: 4 Inch
• Maximum CFM: 4000 Cubic Feet Per Minute
• Maximum RPM: 4000 RPM
• Rotation Direction: Puller
• Amperage Draw: 24.8 Amp
• Blade Color: Black
• Shroud Material: Aluminum

Technical Documents

• 16836_REV_B.pdf
