Derale Auto Transmission Oil Pan (MPN: 14204)

Enhanced capacity and cooling for GM 700R4 and 4L60E transmissions.

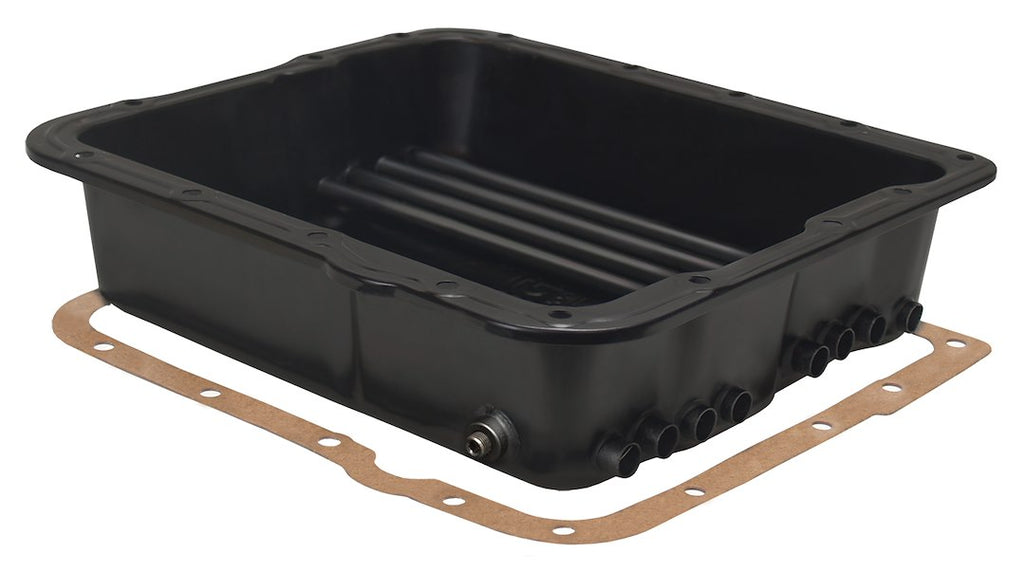

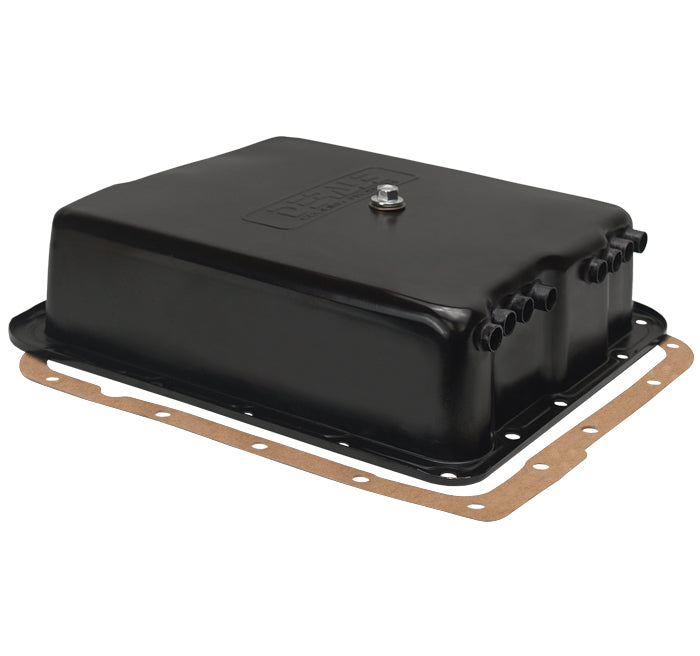

The Derale Auto Transmission Oil Pan is engineered for GM 700R4 and 4L60E transmissions, providing an additional 2 quarts and 4 ounces of fluid capacity. This pan features a robust magnetic drain plug that enhances fluid retention and a reusable rubber/steel washer for improved sealing. An integrated 1/8 inch NPT bung allows for easy installation of a temperature sender, facilitating better monitoring of fluid temperatures.

Constructed from durable steel and finished with a two-stage heat dissipating black powder coat, this oil pan is designed to reduce fluid temperatures and improve overall transmission performance. The increased capacity not only aids in cooling but also extends the life of the transmission by maintaining optimal fluid levels. The pan includes a gasket for a secure fit, ensuring a reliable installation without leaks.

Features

• 1/8 Inch NPT Bung In Side For Temperature Sender

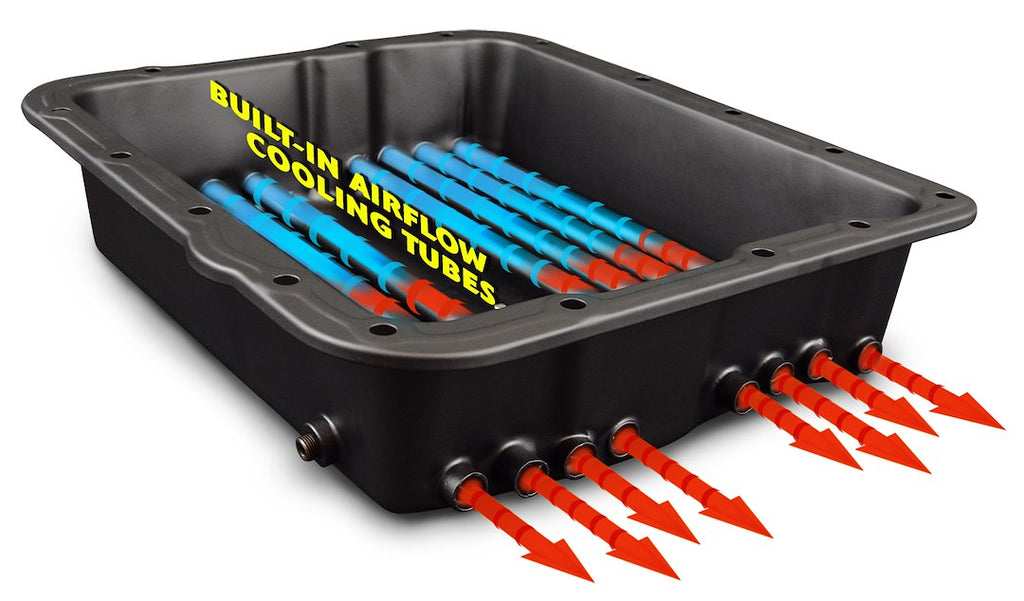

• Reduces Fluid Temperatures
• Increases Fluid Capacity
• Two Stage Heat Dissipating Black Finish
• Drain Plug With Increased Magnetic Strength And Rubber/Steel Washer
• Includes Gasket

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 14204
• Transmission Model: 700R4/ 4L60/ 4L60E
• Capacity Increase Over OEM (QT): 2 Quart 4 Ounce
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Includes Drain Plug: Yes
• Includes Filter: No
• Includes Filter Extension: No
• Includes Gaskets: Yes
• Includes Bolts: No
• Pan Quart Capacity (QT): 7 Quart 4 Ounce

Compatibility / Fit

• 1982-1986 GMC C1500
• 1988-1999 GMC C1500
• 1982-1986 GMC C1500 Suburban
• 1992-1999 GMC C1500 Suburban
• 1982-1986 GMC C2500
• 1988-1998 GMC C2500
• 1982-1986 GMC C2500 Suburban
• 1992-1996 GMC C2500 Suburban
• 1982-1986 GMC C3500
• 1988-1991 GMC C3500
• 1984-1987 GMC Caballero
• 1983-1995 GMC G1500
• 1983-1995 GMC G2500
• 1983-1995 GMC G3500
• 1982-1999 GMC Jimmy
• 1982-1986 GMC K1500
• 1988-1999 GMC K1500
• 1982-1986 GMC K1500 Suburban
• 1992-1999 GMC K1500 Suburban
• 1982-1986 GMC K2500
• 1988-1995 GMC K2500
• 1997-1998 GMC K2500
• 1982-1986 GMC K2500 Suburban
• 1992-1996 GMC K2500 Suburban
• 1982-1986 GMC K3500
• 1988-1991 GMC K3500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1987-1989 GMC R2500
• 1987-1991 GMC R2500 Suburban
• 1987-1991 GMC R3500
• 1983-1990 GMC S15
• 1983-1991 GMC S15 Jimmy
• 1985-1999 GMC Safari
• 1996-1999 GMC Savana 1500
• 1996-1999 GMC Savana 2500
• 1999-1999 GMC Sierra 1500
• 1999-1999 GMC Sierra 2500
• 1991-1999 GMC Sonoma
• 1991-1991 GMC Syclone
• 1992-1993 GMC Typhoon
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 1987-1991 GMC V3500
• 1992-1999 GMC Yukon

Technical Documents

• 14204.pdf

Product Videos
