Enhanced capacity and cooling for GM Turbo 400 transmissions.

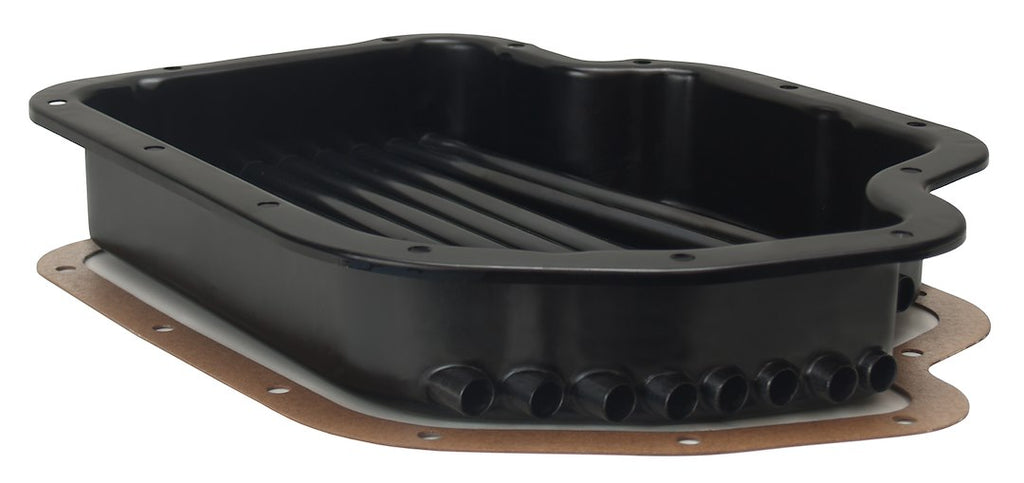

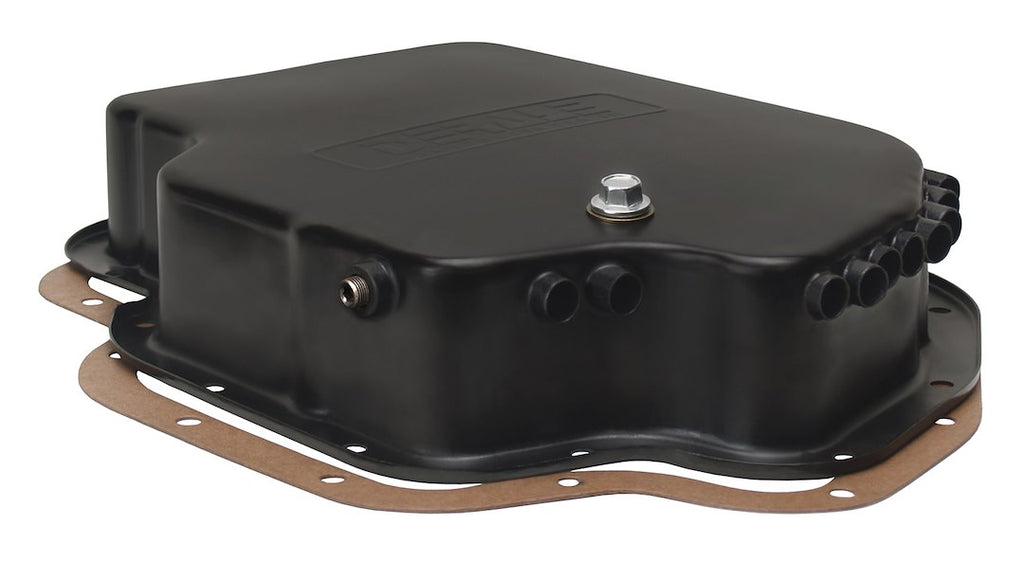

The Derale Auto Transmission Oil Pan is engineered specifically for GM Turbo 400 transmissions, offering an increased capacity of 1 quart and 17 ounces over OEM specifications. This pan is constructed from durable steel and features a robust black powder-coated finish that enhances heat dissipation and longevity. A key feature is the integrated 1/8 inch NPT bung for a temperature sender, allowing for precise monitoring of fluid temperatures.
Designed with a stronger magnetic drain plug, this oil pan effectively captures metal particles, ensuring cleaner fluid and improved transmission performance. The included rubber/steel reusable washer enhances the sealing capability of the drain plug, reducing the risk of leaks. Additionally, the pan comes with a gasket for easy installation, making it a practical choice for those looking to maintain optimal transmission health.
With its thoughtful design and quality materials, the Derale Auto Transmission Oil Pan not only increases fluid capacity but also contributes to lower operating temperatures, which can extend the life of your transmission. This product is a reliable solution for automotive enthusiasts and professionals seeking to enhance their vehicle's transmission system.
Features
- 1/8 Inch NPT Bung In Side For Temperature Sender

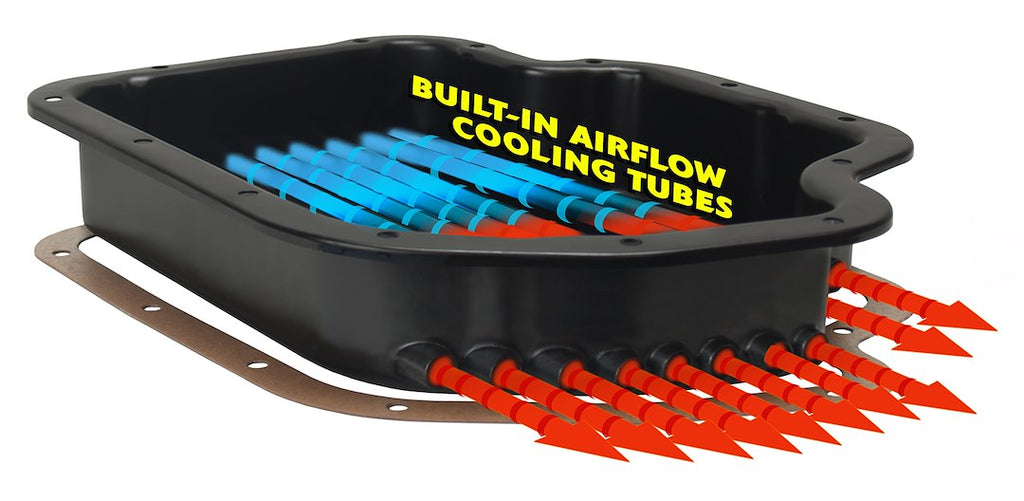

- Reduces Fluid Temperatures
- Increases Fluid Capacity
- Two Stage Heat Dissipating Black Finish
- Drain Plug With Increased Magnetic Strength And Rubber/Steel Washer
- Includes Gasket
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 14201
- Transmission Model: TH400
- Capacity Increase Over OEM (QT): 1 Quart 17 Ounce
- Finish: Powder Coated
- Color: Black
- Material: Steel
- Includes Drain Plug: Yes
- Includes Filter: No
- Includes Filter Extension: No
- Includes Gaskets: Yes
- Includes Bolts: No
- Pan Quart Capacity (QT): 8 Quart 16 Ounce
Compatibility / Fit
- 1975-1978 GMC C15
- 1975-1978 GMC C15 Suburban
- 1968-1974 GMC C15/C1500 Pickup
- 1968-1974 GMC C15/C1500 Suburban
- 1979-1986 GMC C1500
- 1988-1990 GMC C1500
- 1979-1984 GMC C1500 Suburban
- 1975-1978 GMC C25
- 1975-1978 GMC C25 Suburban
- 1967-1974 GMC C25/C2500 Pickup
- 1968-1974 GMC C25/C2500 Suburban
- 1979-1986 GMC C2500
- 1988-1990 GMC C2500
- 1979-1986 GMC C2500 Suburban
- 1975-1978 GMC C35
- 1968-1974 GMC C35/C3500 Pickup
- 1979-1986 GMC C3500
- 1988-1990 GMC C3500
- 1977-1978 GMC G15
- 1979-1990 GMC G1500
- 1975-1978 GMC G25
- 1979-1990 GMC G2500
- 1975-1978 GMC G35
- 1970-1971 GMC G35/G3500 Van
- 1974-1974 GMC G35/G3500 Van
- 1979-1990 GMC G3500
- 1970-1974 GMC Jimmy
- 1977-1990 GMC Jimmy
- 1977-1978 GMC K15
- 1977-1978 GMC K15 Suburban
- 1966-1974 GMC K15/K1500 Pickup
- 1967-1974 GMC K15/K1500 Suburban
- 1979-1986 GMC K1500
- 1988-1990 GMC K1500
- 1979-1984 GMC K1500 Suburban
- 1975-1978 GMC K25
- 1975-1978 GMC K25 Suburban
- 1967-1974 GMC K25/K2500 Pickup
- 1968-1974 GMC K25/K2500 Suburban
- 1979-1986 GMC K2500
- 1988-1990 GMC K2500
- 1979-1986 GMC K2500 Suburban
- 1977-1978 GMC K35
- 1970-1974 GMC K35/K3500 Pickup
- 1979-1986 GMC K3500
- 1988-1990 GMC K3500
- 1976-1978 GMC P15
- 1979-1980 GMC P1500
- 1975-1978 GMC P25
- 1979-1989 GMC P2500
- 1975-1978 GMC P35
- 1979-1990 GMC P3500
- 1987-1987 GMC R1500
- 1990-1990 GMC R1500 Suburban
- 1987-1989 GMC R2500
- 1987-1990 GMC R2500 Suburban
- 1987-1990 GMC R3500
- 1971-1975 GMC Sprint
- 1987-1987 GMC V1500
- 1990-1990 GMC V1500 Suburban
- 1987-1987 GMC V2500
- 1987-1990 GMC V2500 Suburban
- 1987-1990 GMC V3500
