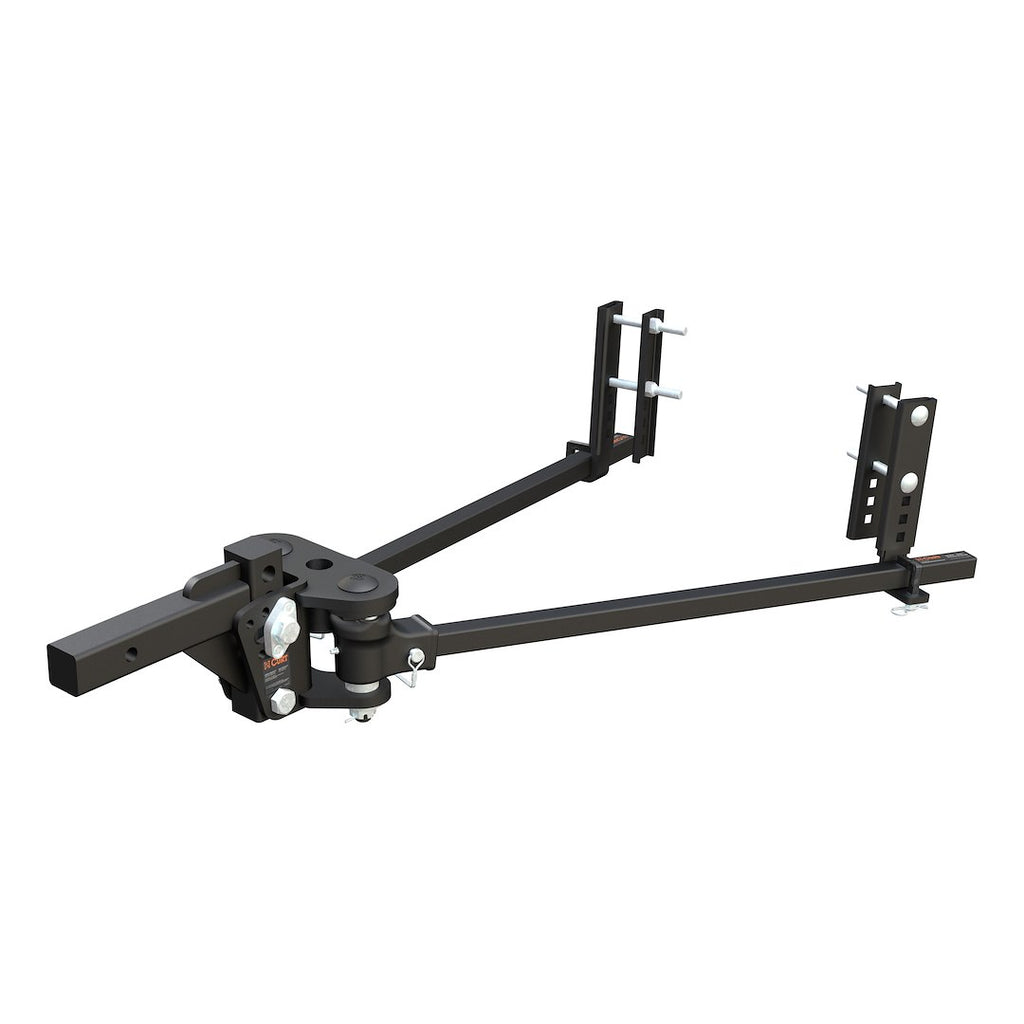

CURT TruTrack Weight Distribution Hitch (MPN: 17499)

Advanced design integrates sway control for enhanced towing stability.

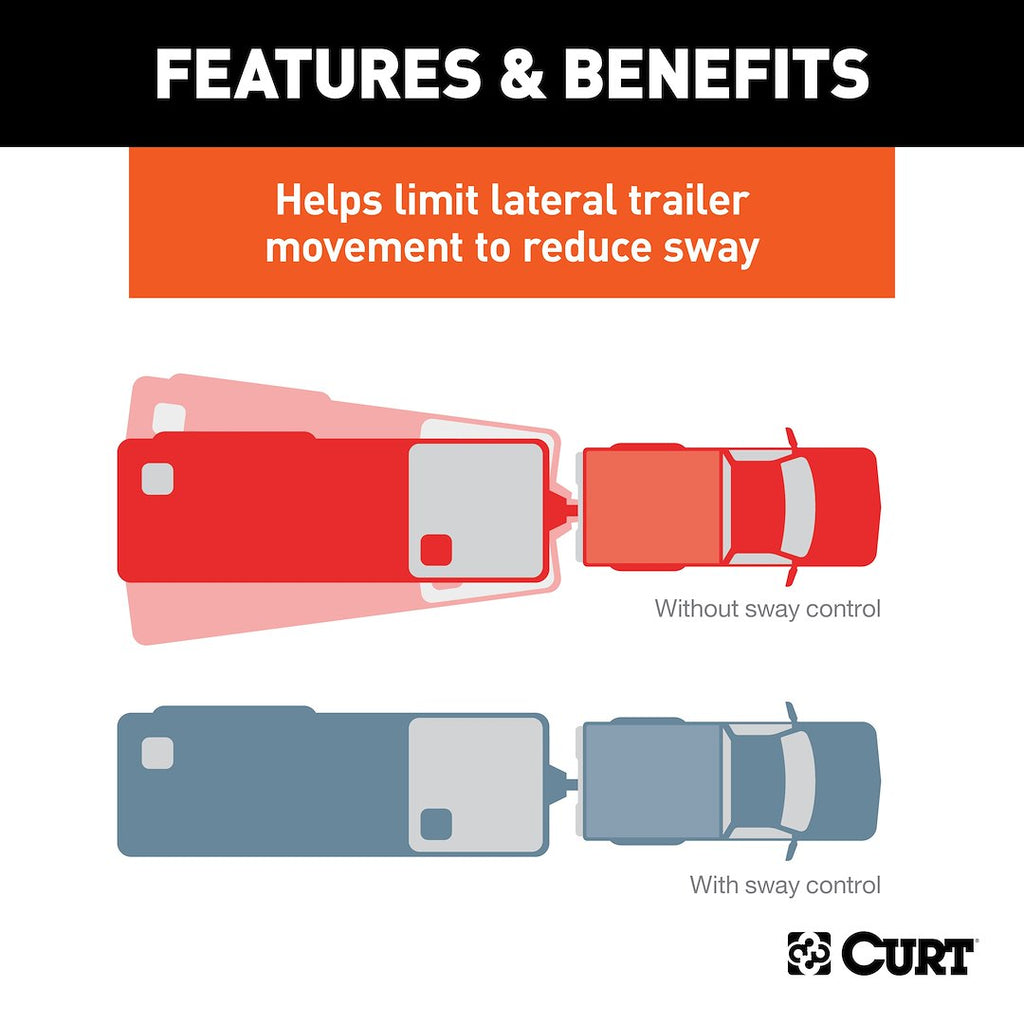

The CURT TruTrack Weight Distribution Hitch is engineered to provide superior towing stability and safety. This innovative hitch features an integrated sway control system that actively resists sway, ensuring a smooth and level ride for both the vehicle and trailer. The design utilizes heavy-duty, adjustable support brackets that secure the spring bars in place, enhancing lateral and vertical stability while eliminating the need for traditional spring bar chains.

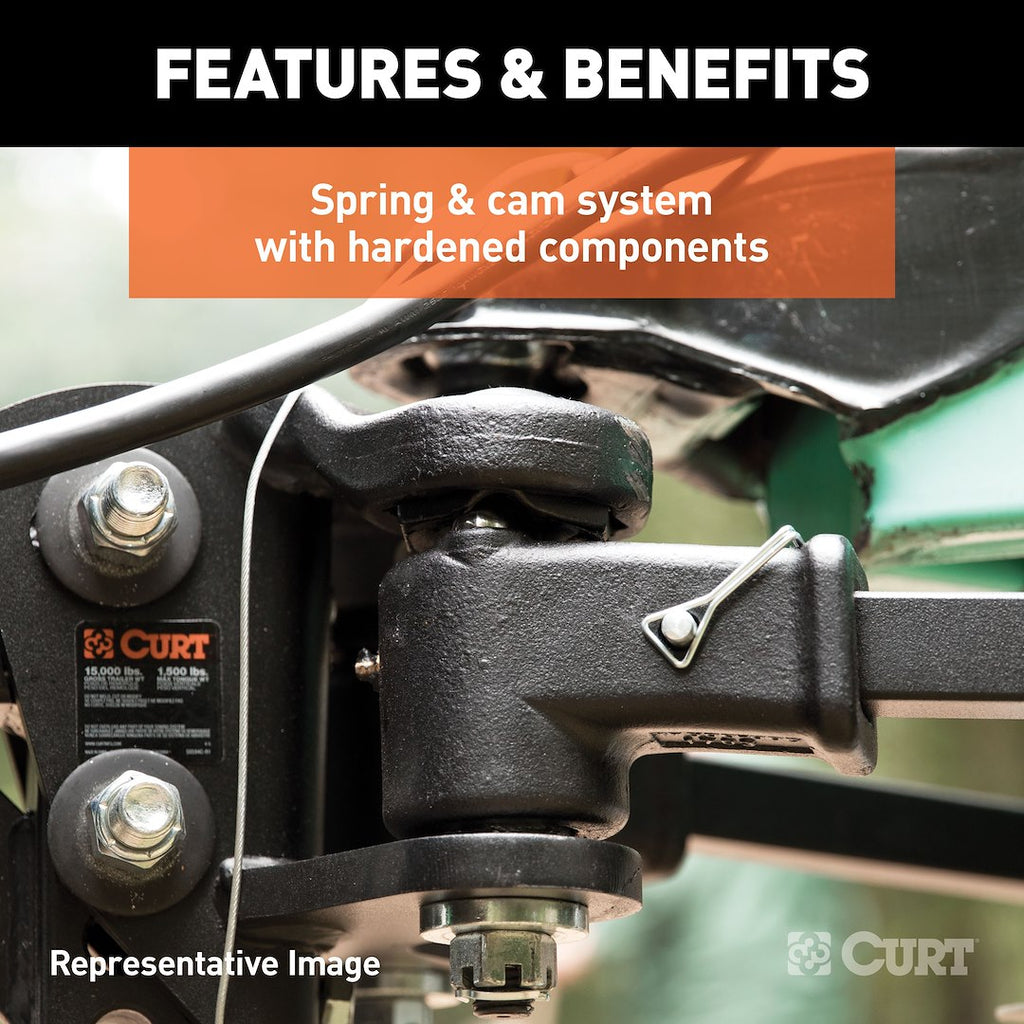

The TruTrack's unique spring and cam system builds up pressure to counteract sway, allowing for smooth turns and improved handling. Constructed with hardened components, this hitch is designed for durability and longevity, outperforming many competitor models. The setup process is streamlined with interlocking nuts and preset holes for tilt adjustment, making it easier to achieve the desired angle without disassembling the hitch head.

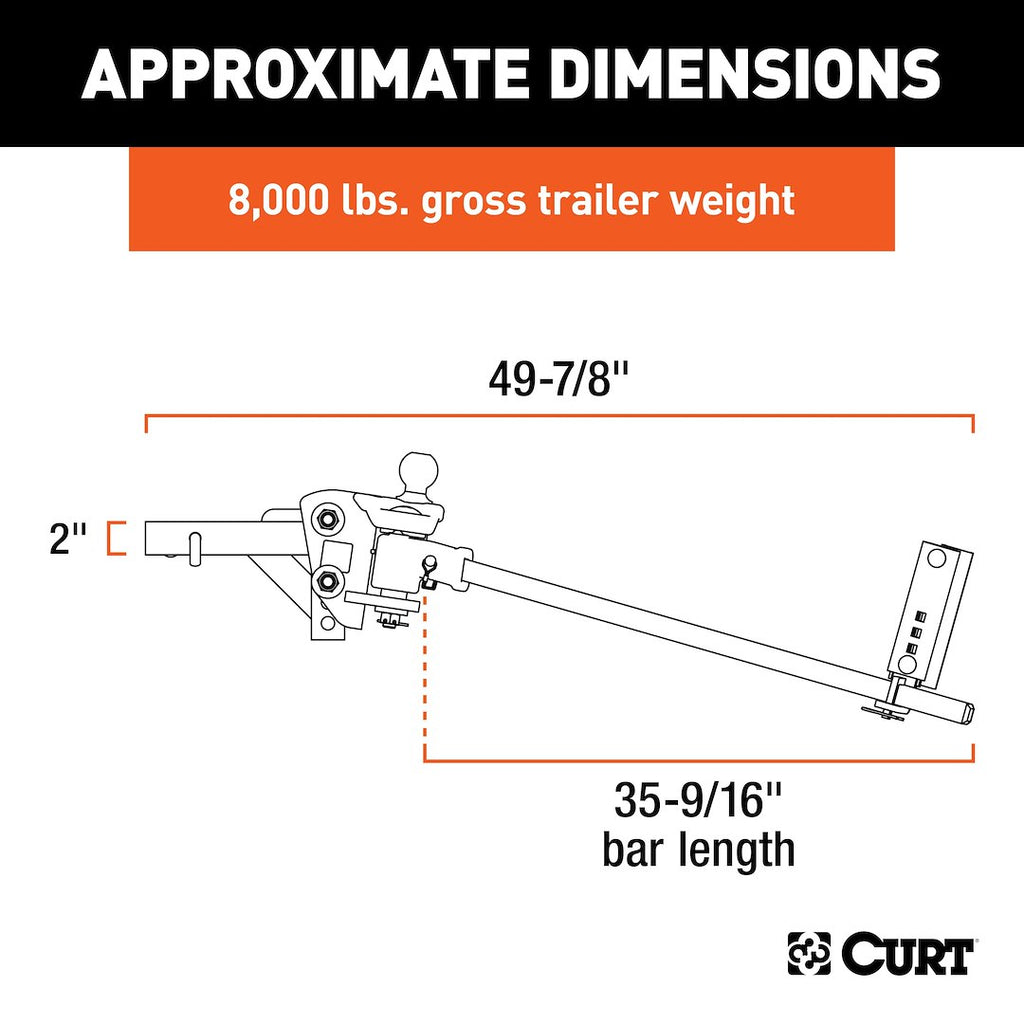

With a gross trailer weight capacity of up to 8000 pounds and a tongue weight capacity of 800 pounds, the CURT TruTrack is suitable for a wide range of towing applications. Its 12-inch adjustable shank fits standard 2-inch receiver tubes, providing versatility for various trailers. The black powder-coated finish adds an extra layer of protection against wear and corrosion, ensuring reliable performance over time.

Features

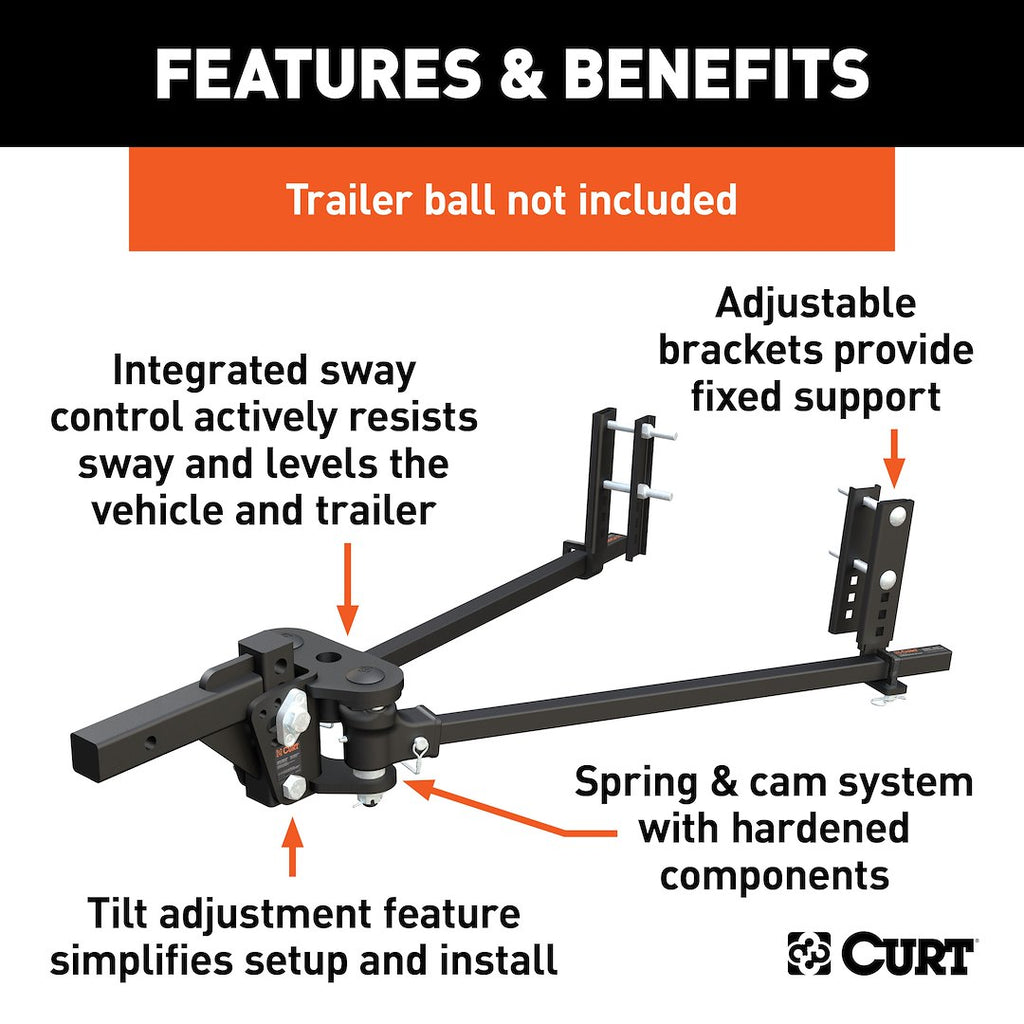

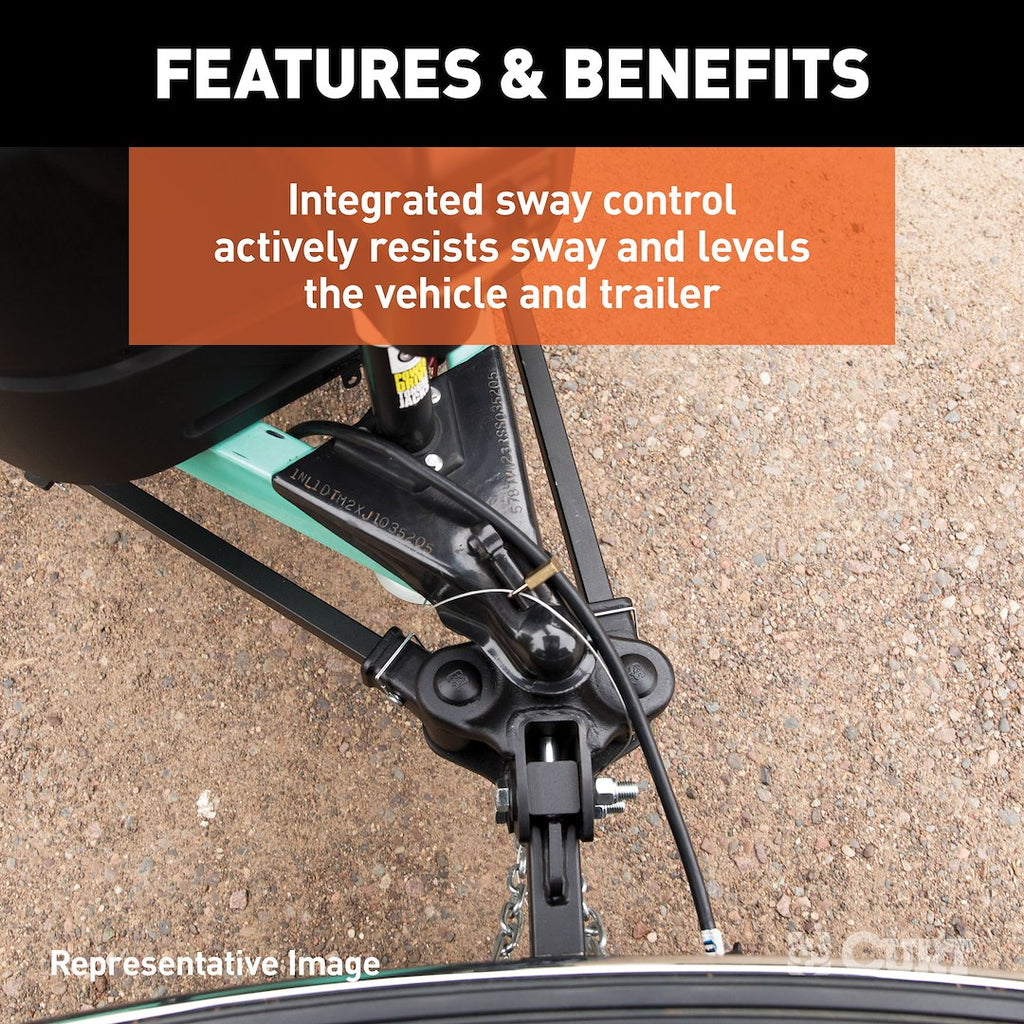

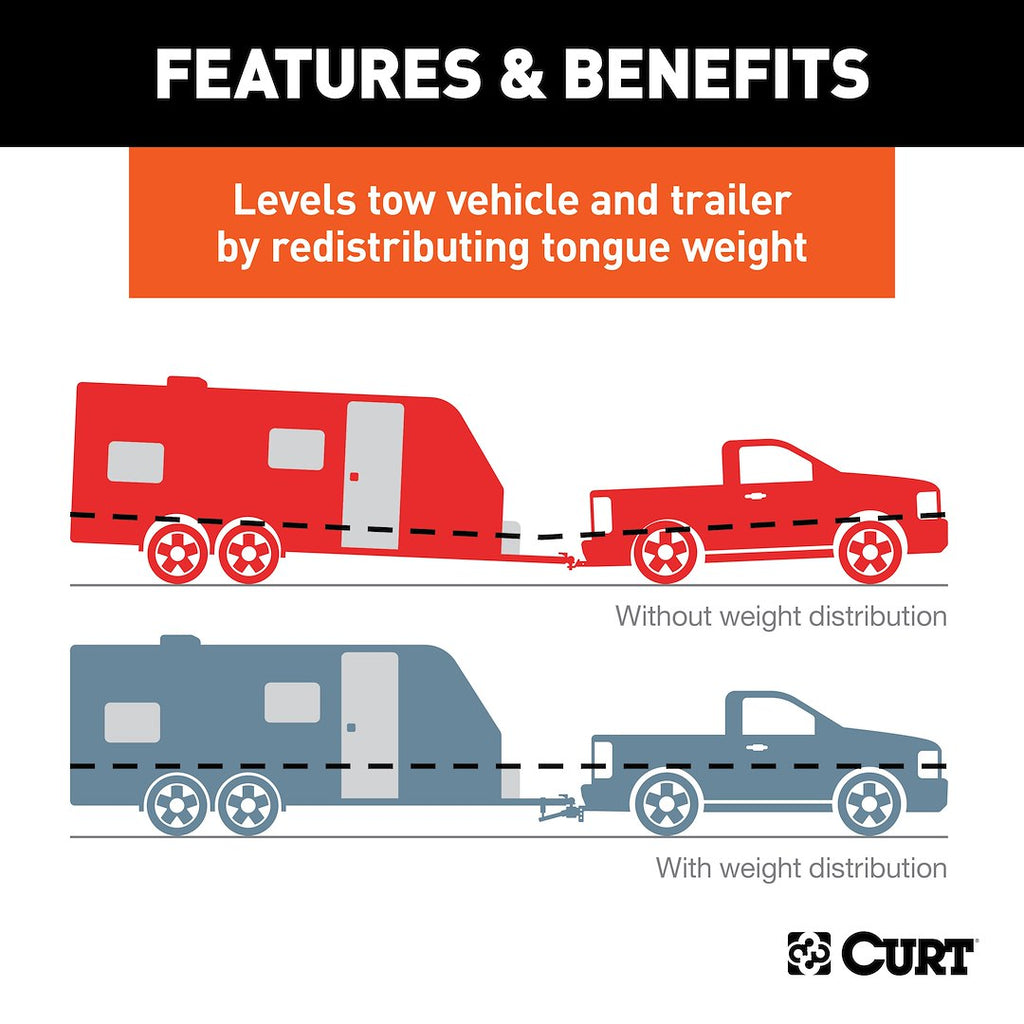

• Integrated Sway Control Actively Resists Sway And Levels The Vehicle And Trailer
• Welded Head With Cast Pieces Provides Solid Spring Bar Attachment
• Cam Springs Build Up Pressure For Integrated Sway Control

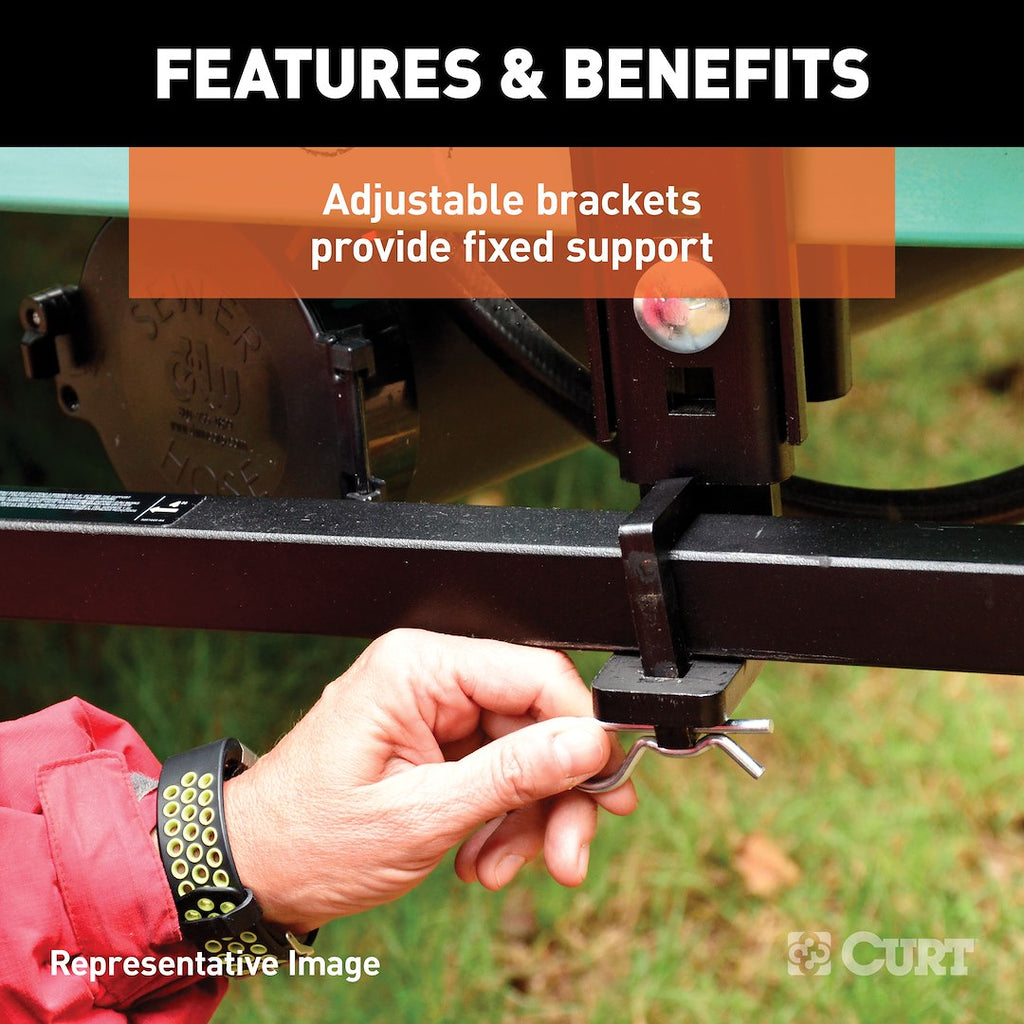

• Fixed Support Brackets Hold The Spring Bars In Place Laterally And Vertically
• Brackets Use Friction To Resist Lateral Movement, Replacing A Sway Control
• Equipped With Trunnion-Style, Forged Steel Spring Bars
• 12 Inch Adjustable Shank Fits 2 Inch X 2 Inch Receiver Tube Openings
• Hex Castle Nut Allows For Easy Adjustment For Different Trailers

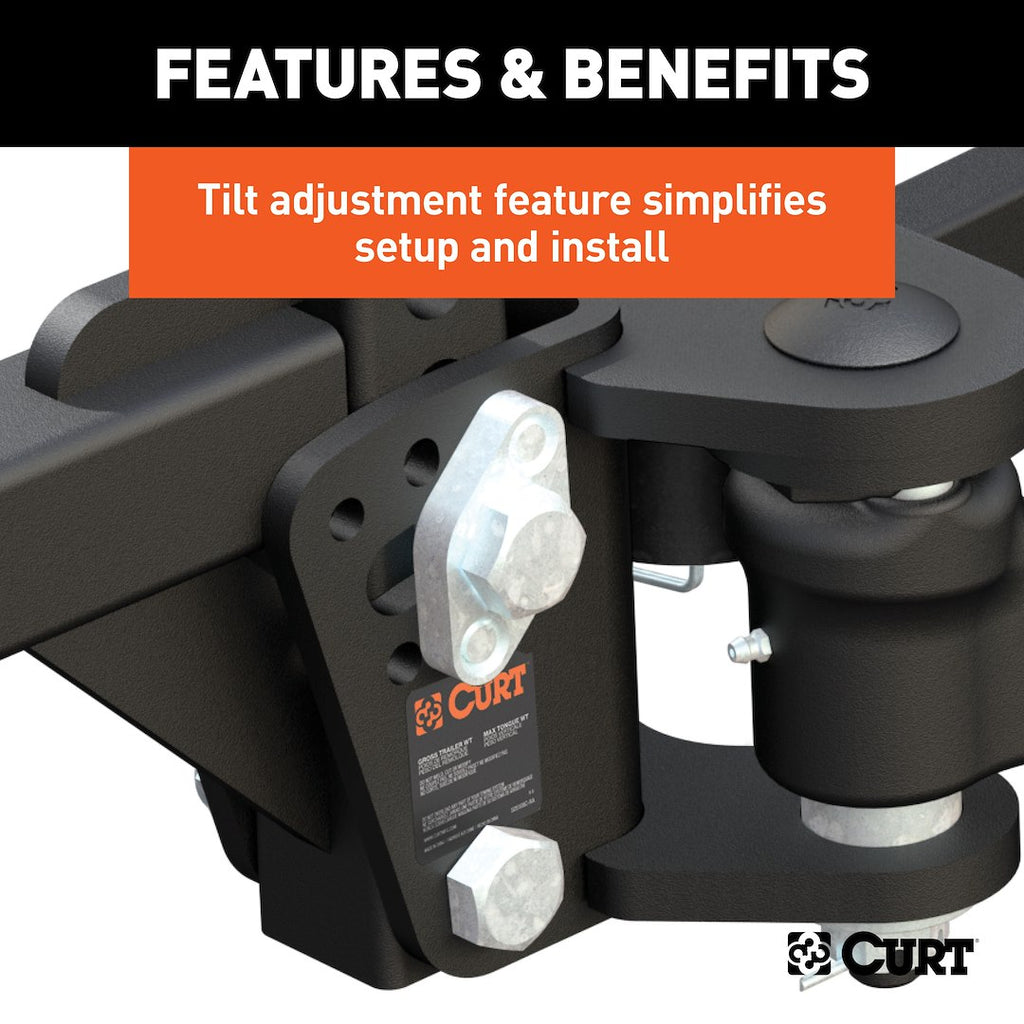

• Tilt Adjustment Feature Simplifies Setup And Installation

Specifications

• Manufacturer: CURT
• Manufacturer Part Number: 17499
• Type: Trunnion Bar
• Gross Trailer Weight (LB): 8000 Pound
• Gross Tongue Weight (LB): 800 Pound
• Color/ Finish: Black Powder Coated
• Drop (IN): 2 Inch
• Rise (IN): 2 Inch
• Includes Sway Control: With Built-In Sway Control
• Includes Shank: Yes
• Shank Length: 12 Inch
• Includes Ballmount: Yes
• Includes Ball: No
• Universality: Fully Universal
• Material: Steel

Technical Documents

• 17499_INS.pdf
