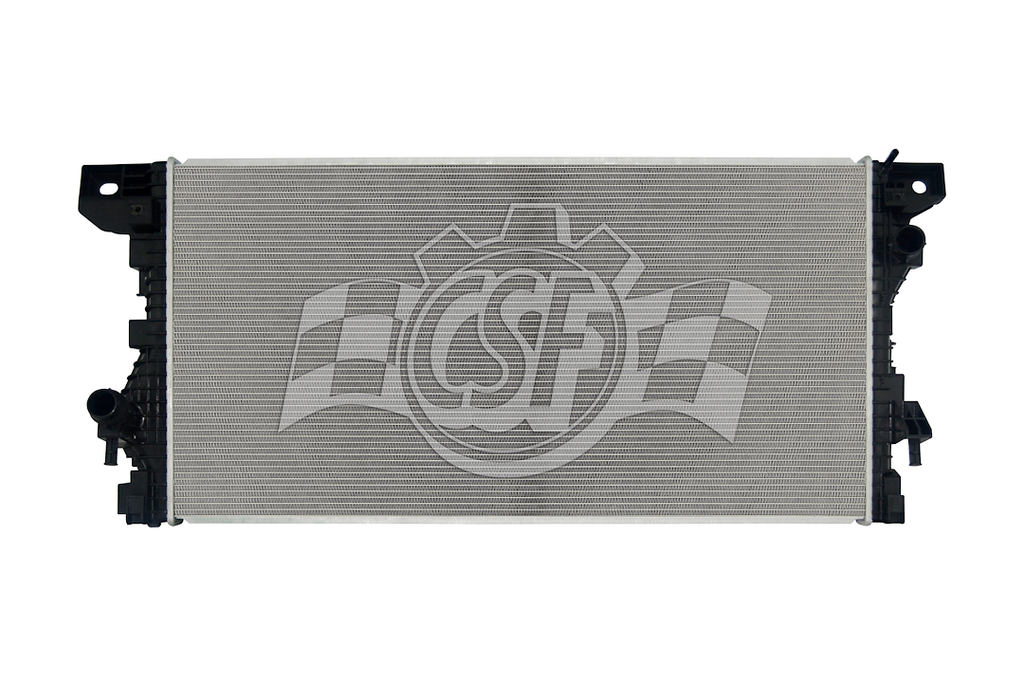

CSF Radiator With Transmission Cooler (MPN: 3945)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance and durability, featuring a core made of aluminum with plastic tanks. With dimensions of 34-5/8 inches in length, 17-11/16 inches in height, and 1-1/4 inches in depth, this radiator is designed to fit a variety of vehicles. It includes a high performance transmission cooler and an engine oil cooler, ensuring efficient heat dissipation under demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, making it suitable for a wide range of applications. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance.

CSF has over 50 years of experience in manufacturing radiators, with a commitment to high performance standards. The multi-louvered fin design and welded tube construction contribute to superior cooling efficiency. This radiator is packaged to withstand rigorous handling, meeting industry best standards for drop tests, ensuring it arrives in optimal condition for installation.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degree Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins Are High Performance "Multi-Louvered Design": OEM Specification
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• Industry Best Packaging: "10 Foot Drop Test" Standard And Drop-In Fit
• High Performance Transmission Cooler With Special Built-In Turbulator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3945
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 34-5/8 Inch
• Core Height (IN): 17-11/16 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2021-2026 Ford F-150
• 2022-2024 Lincoln Navigator
