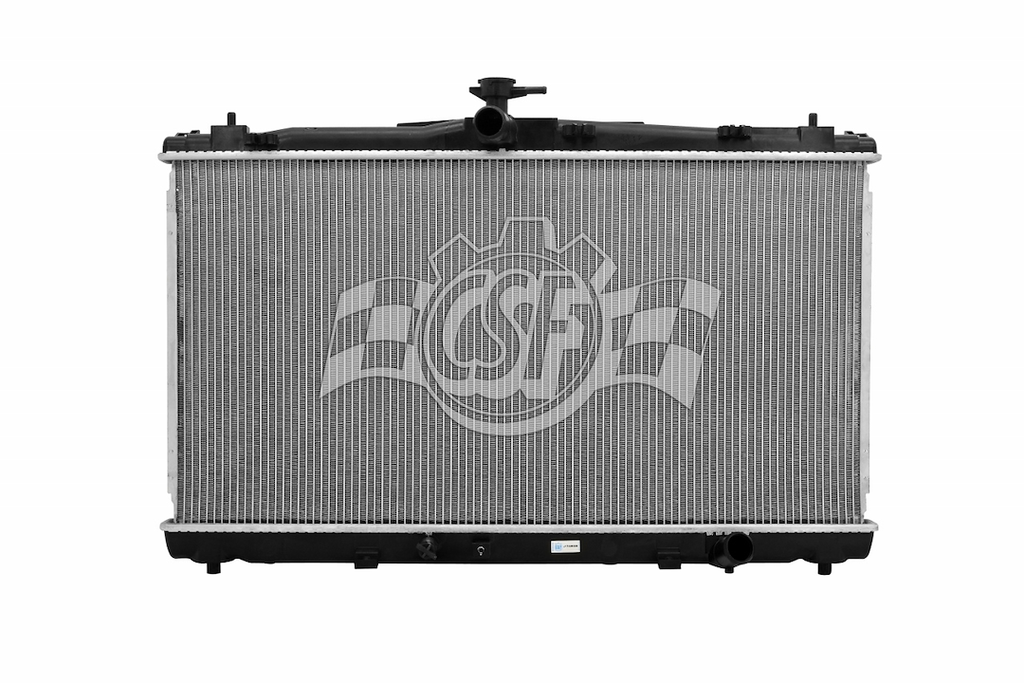

CSF Radiator With Transmission Cooler (MPN: 3763)

High performance aluminum core radiator designed for efficient cooling.

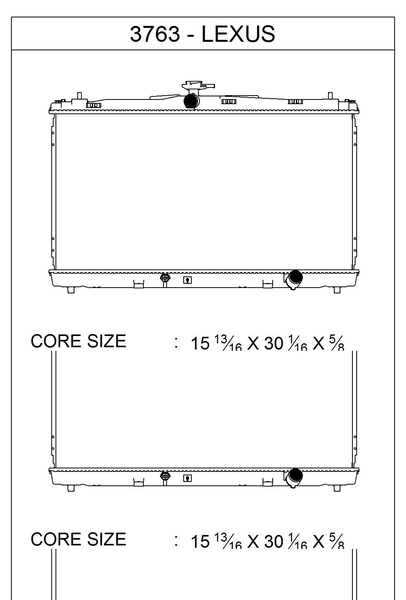

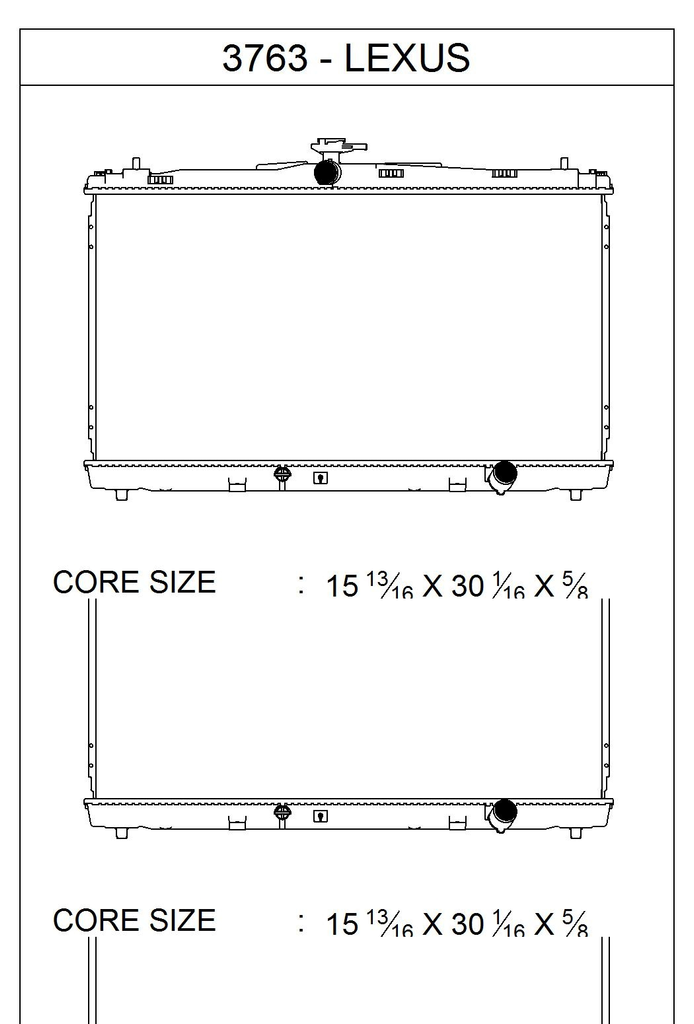

The CSF Radiator is engineered for optimal cooling performance, featuring a robust aluminum core with plastic tanks. With core dimensions of 15-13/16 inches in length, 30-1/16 inches in height, and a depth of 5/8 inches, this radiator is designed for downflow applications. It includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and heat dissipation.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for added strength and durability. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, ensuring reliability in various operating conditions. Each unit is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring high quality and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. This radiator is designed to meet high performance standards and is wind tunnel tested for effective cooling. The welded type or latest generation B-tube design, along with a high performance multi-louvered fin design, contributes to its efficiency and effectiveness in maintaining optimal engine temperatures.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3763
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Center
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 15-13/16 Inch
• Core Height (IN): 30-1/16 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2013-2018 Lexus ES300h
• 2013-2018 Lexus ES350
• 2013-2018 Toyota Avalon
• 2012-2017 Toyota Camry
