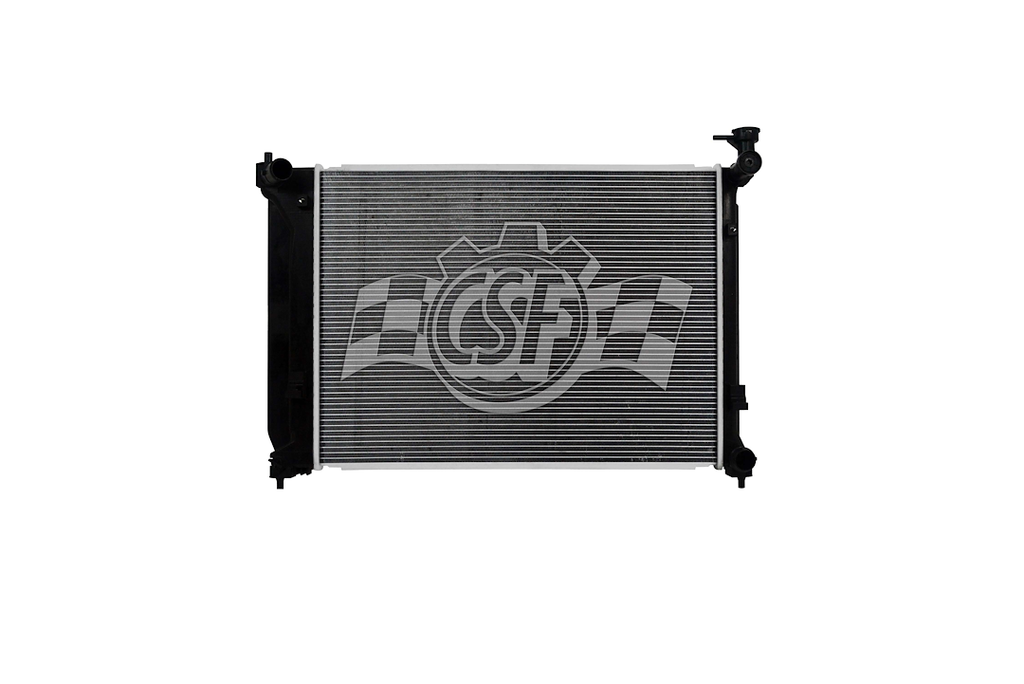

High performance aluminum core radiator designed for durability and efficiency.
The CSF Radiator features a robust aluminum core construction with OEM specified plastic tanks, ensuring optimal performance and longevity. Engineered with virgin grade engineered plastic resins that are glass filled, this radiator is built to withstand extreme temperatures, making it suitable for a variety of applications. The crossflow design enhances cooling efficiency, while the high performance multi-louvered fins provide superior heat dissipation. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and durability in demanding conditions. This radiator is equipped with a built-in transmission cooler, enhancing its functionality for vehicles requiring additional cooling support.
Features
- OEM Specified Plastic Tank-Aluminum Core Construction
- Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
- Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
- Tubes: Welded Type Or Latest Generation "B-Tube" Design
- Fins: High Performance "Multi-Louvered Design" - OEM Spec
- 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
- High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
- All Components Are Installed, Torqued, And Tested On Radiator During Assembly

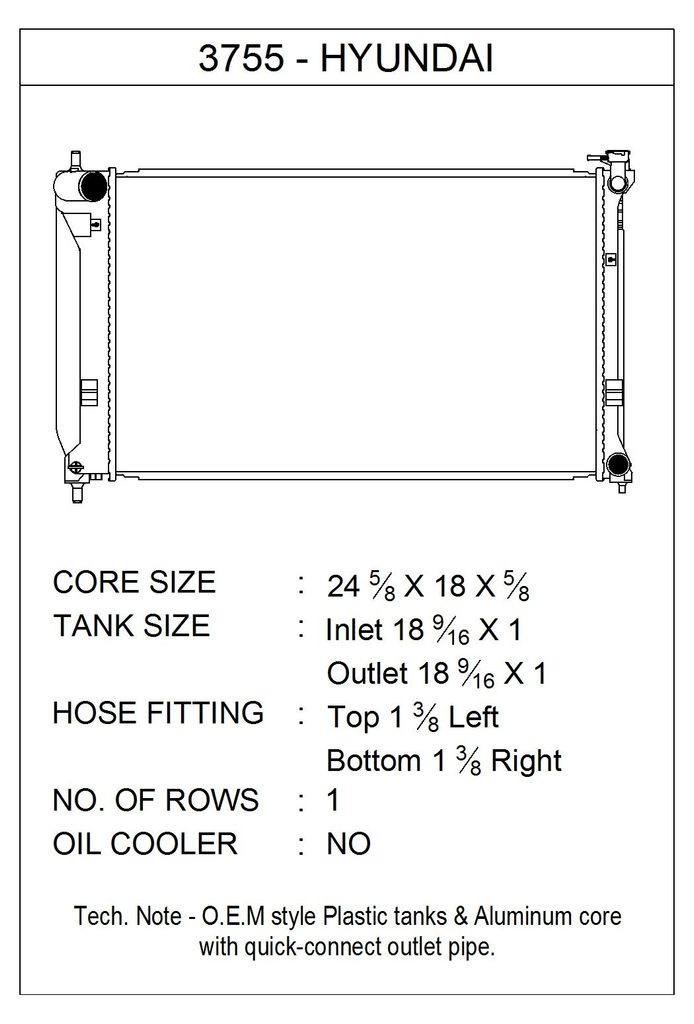

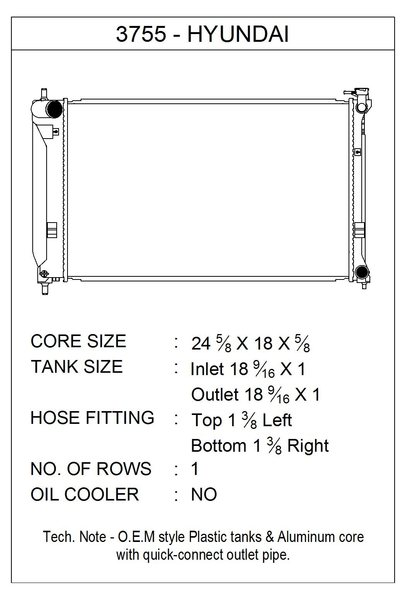

Specifications
- Manufacturer: CSF
- Manufacturer Part Number: 3755
- Flow Direction: Crossflow
- Overall Length (IN): OEM
- Overall Height (IN): OEM
- Overall Depth (IN): OEM
- Core Rows: Single
- Core Material: Aluminum
- Inlet Hose Location: Top Left
- Inlet Size (IN): 1-3/8 Inch
- Outlet Hose Location: Bottom Right
- Outlet Size (IN): 1-3/8 Inch
- Finish: Natural
- Color: Black/ Silver
- Core Length (IN): 24-5/8 Inch
- Core Height (IN): 18 Inch
- Core Depth (IN): 5/8 Inch
- Tank Material: Plastic
- With Radiator Cap: No
- With Transmission Cooler: Yes
- With Engine Oil Cooler: No
- Includes Fittings: No
- Includes Mounting Hardware: No
Compatibility / Fit
- 2015-2019 Hyundai Sonata
