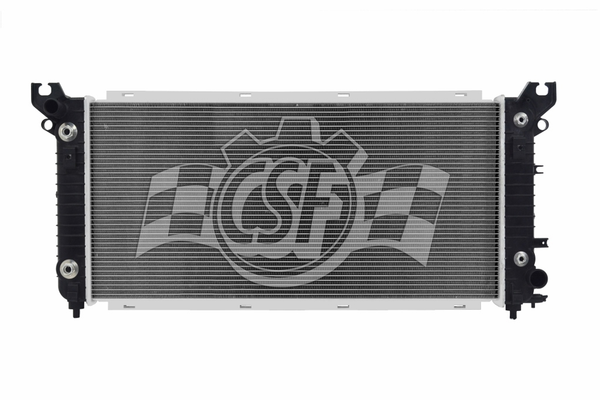

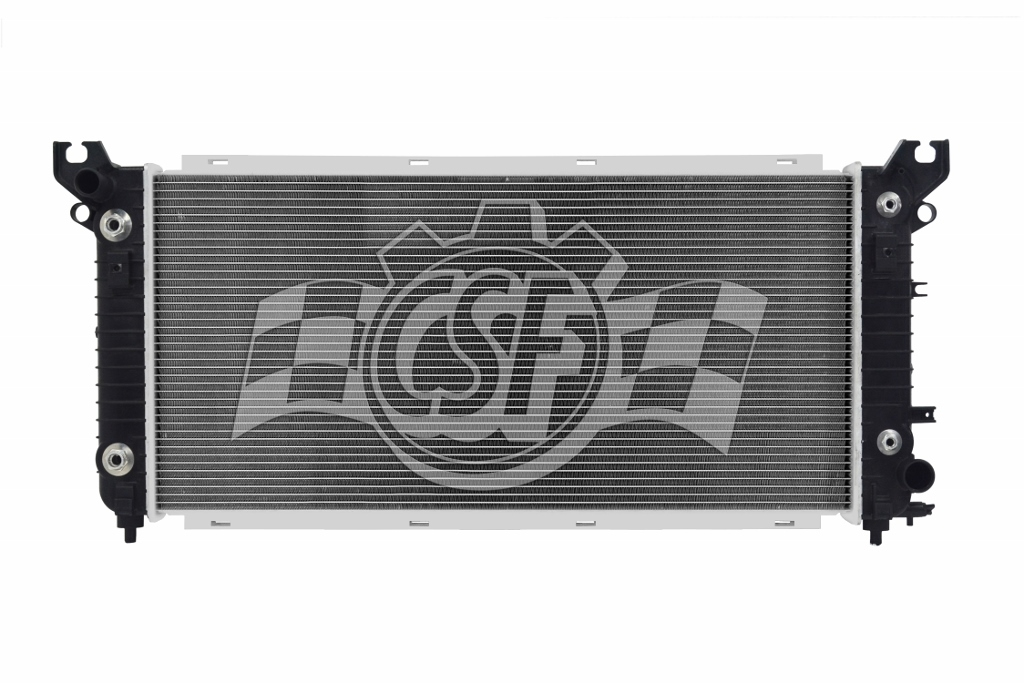

CSF Radiator With Transmission Cooler (MPN: 3729)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance cooling, featuring a robust aluminum core with plastic tanks. With core dimensions of 34 inches in length, 16-7/16 inches in height, and 7/8 inch in depth, this radiator is designed to fit a variety of applications. It includes a high performance transmission cooler and an engine oil cooler, ensuring efficient heat dissipation under demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength and durability. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, making it suitable for a wide range of environments. Each unit is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

The design incorporates a welded type or latest generation B-tube design for optimal fluid flow, complemented by a high performance multi-louvered fin design that meets OEM specifications. The inlet and outlet hose connections are strategically located for easy installation, with sizes of 1-5/16 inch for the top left inlet and 1-9/16 inch for the bottom right outlet. This radiator is a dependable choice for those seeking efficient cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3729
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-5/16 Inch
• Finish: Natural
• Color: Black/ Silver

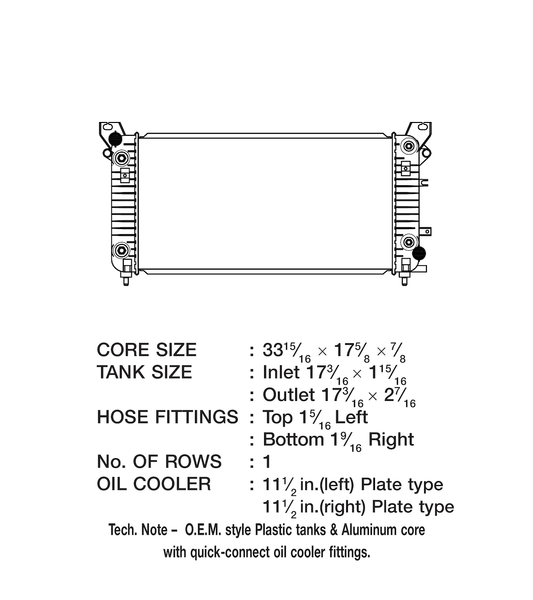

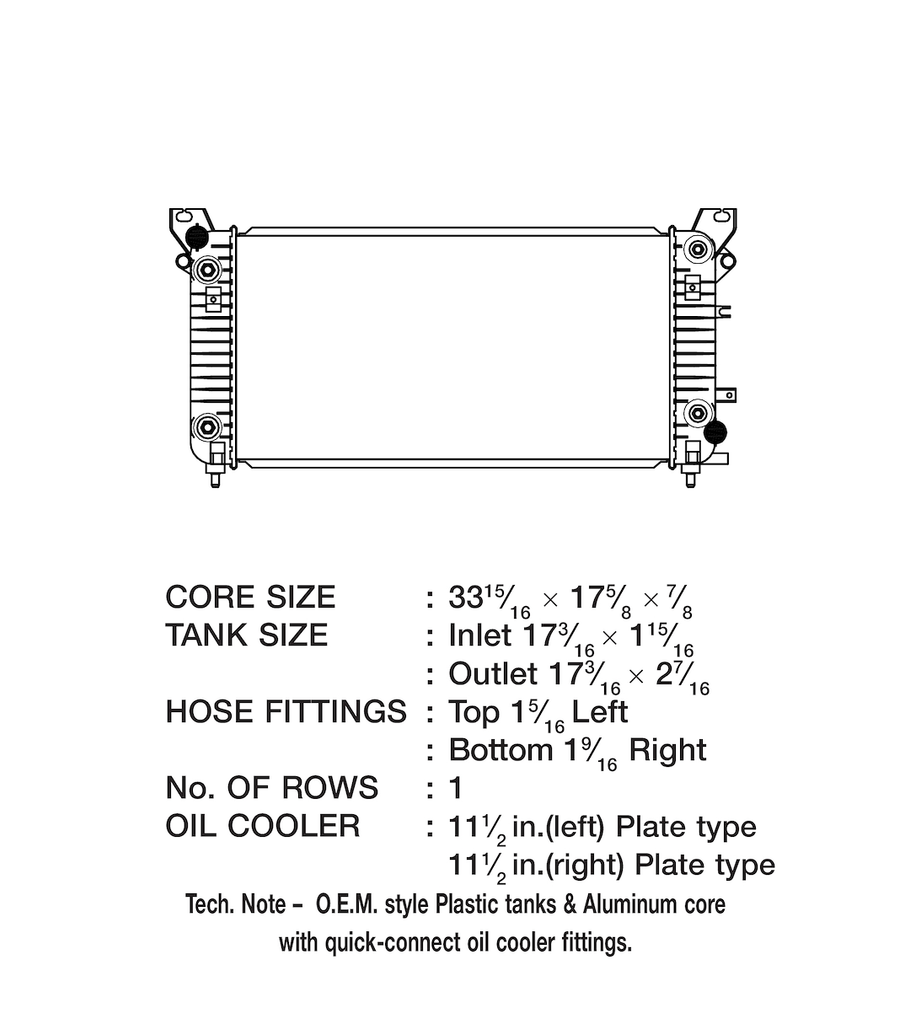

• Core Length (IN): 34 Inch
• Core Height (IN): 16-7/16 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2014-2018 Chevrolet Silverado 1500
• 2014-2018 GMC Sierra 1500
