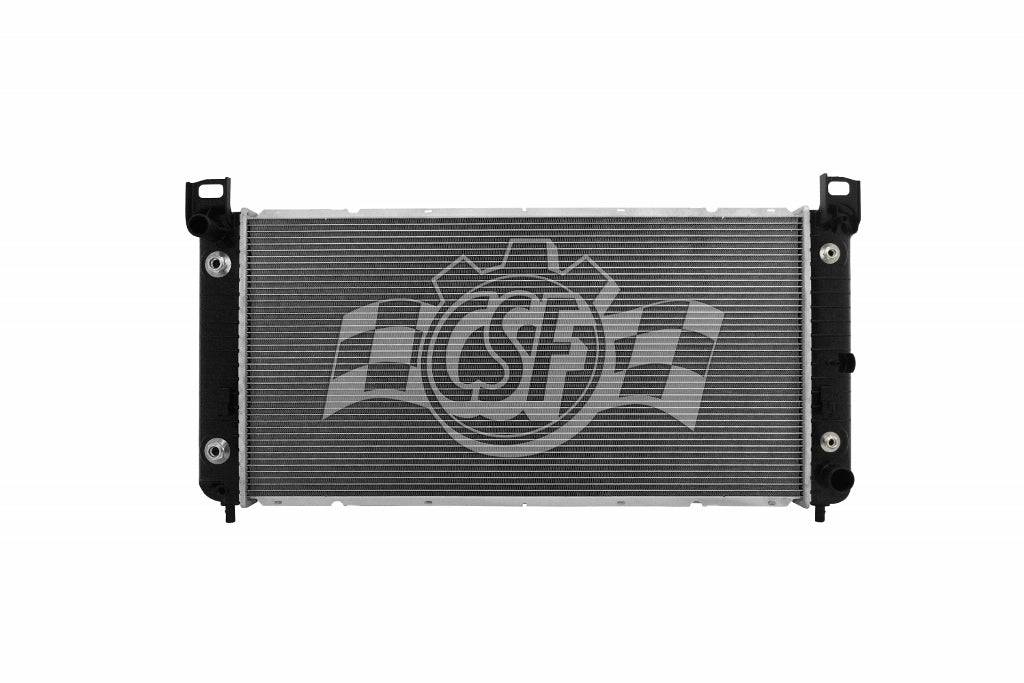

CSF Radiator With Transmission Cooler (MPN: 3728)

High performance aluminum radiator designed for optimal cooling efficiency.

CSF Radiators are engineered to meet high performance standards, ensuring effective cooling for various vehicle models. This radiator features a crossflow design with a core made of durable aluminum, providing a robust solution for heat dissipation. The construction includes OEM specified plastic tanks made from virgin grade engineered plastic resins, which are glass filled for enhanced strength and durability.

The radiator is equipped with a high performance transmission cooler that includes a built-in turbulator, optimizing fluid flow and cooling efficiency. It is designed for a drop-in fit, making installation straightforward. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance in demanding conditions.

With a core dimension of 17-1/4 inches in width, 34 inches in length, and 1-1/4 inches in depth, this radiator is suitable for a variety of applications. The inlet and outlet sizes are designed to accommodate standard hose connections, facilitating compatibility with existing systems. CSF's commitment to quality and performance is evident in every aspect of this radiator's design.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3728
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-9/16 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 34 Inch
• Core Height (IN): 17-1/4 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2009-2014 Cadillac Escalade
• 2003-2010 Chevrolet Silverado 1500
• 2007-2007 Chevrolet Silverado 1500 Classic
• 2008-2009 Chevrolet Tahoe
• 2007-2010 GMC Sierra 1500
• 2007-2014 GMC Yukon
• 2007-2014 GMC Yukon XL 1500
• 2003-2007 Hummer H2
