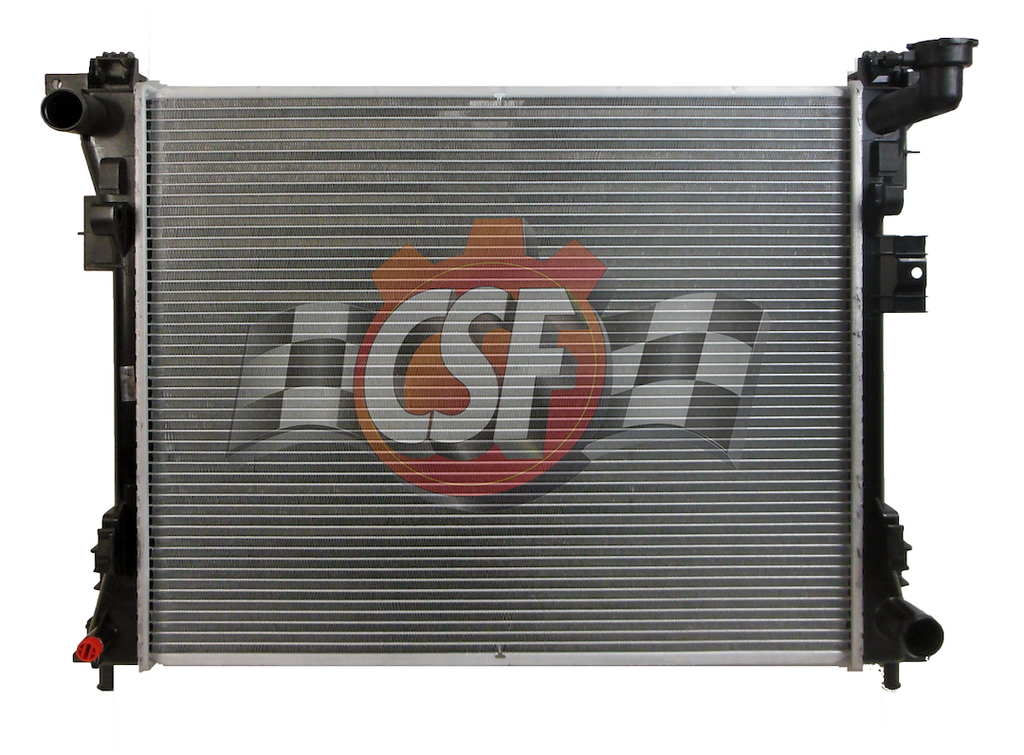

CSF Radiator With Transmission Cooler (MPN: 3659)

High performance aluminum core radiator designed for durability and efficiency.

The CSF Radiator features a robust aluminum core construction with OEM specified plastic tanks, ensuring optimal performance and longevity. Engineered with virgin grade engineered plastic resins, the tanks are glass filled for enhanced strength and durability, making them capable of withstanding extreme temperatures. This radiator is designed with a crossflow flow direction and includes a high performance transmission cooler with a built-in turbulator, when applicable, to improve cooling efficiency.

Each radiator undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance. The welded type or latest generation B-tube design, combined with a high performance multi-louvered fin design, maximizes heat dissipation. With a core dimension of 24-1/8 inches in length, 20-1/2 inches in height, and 1-1/4 inches in depth, this single row radiator is engineered for a precise fit and optimal cooling capacity.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. Their commitment to high performance standards and ISO/TSO certification guarantees that each radiator is built to meet the demands of modern vehicles. This radiator is an essential component for maintaining engine temperature and performance.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3659
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 24-1/8 Inch
• Core Height (IN): 20-1/2 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2008-2016 Chrysler Town & Country
• 2008-2020 Dodge Grand Caravan
• 2009-2012 Volkswagen Routan
