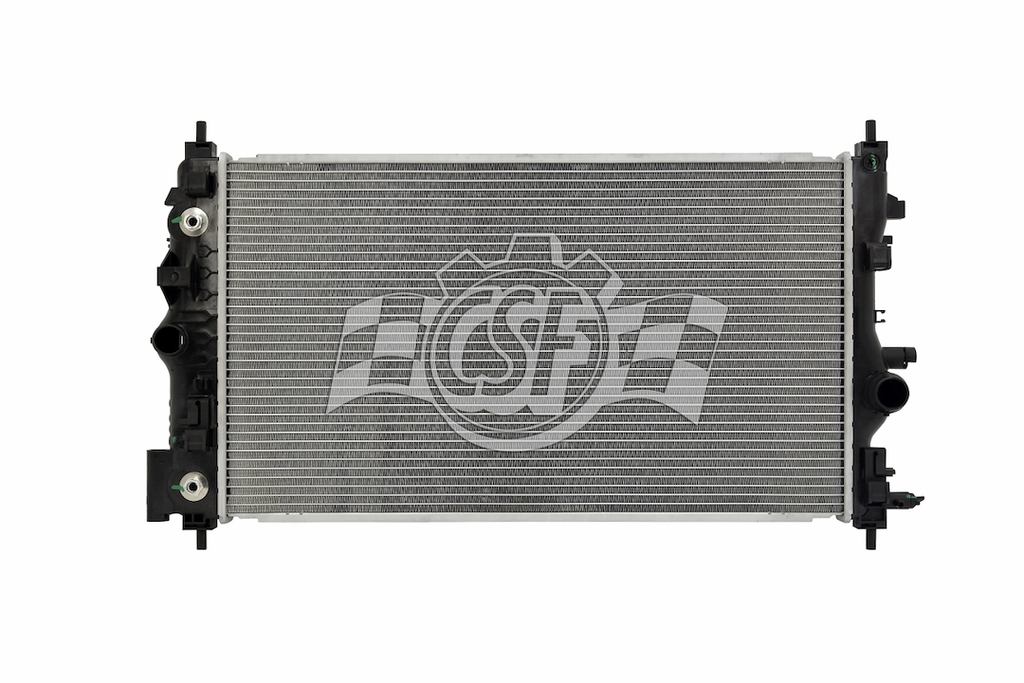

CSF Radiator With Transmission Cooler (MPN: 3523)

High performance aluminum radiator designed for optimal cooling efficiency.

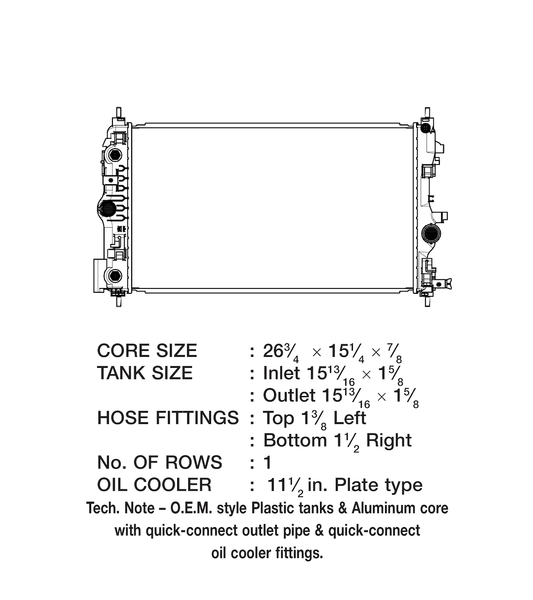

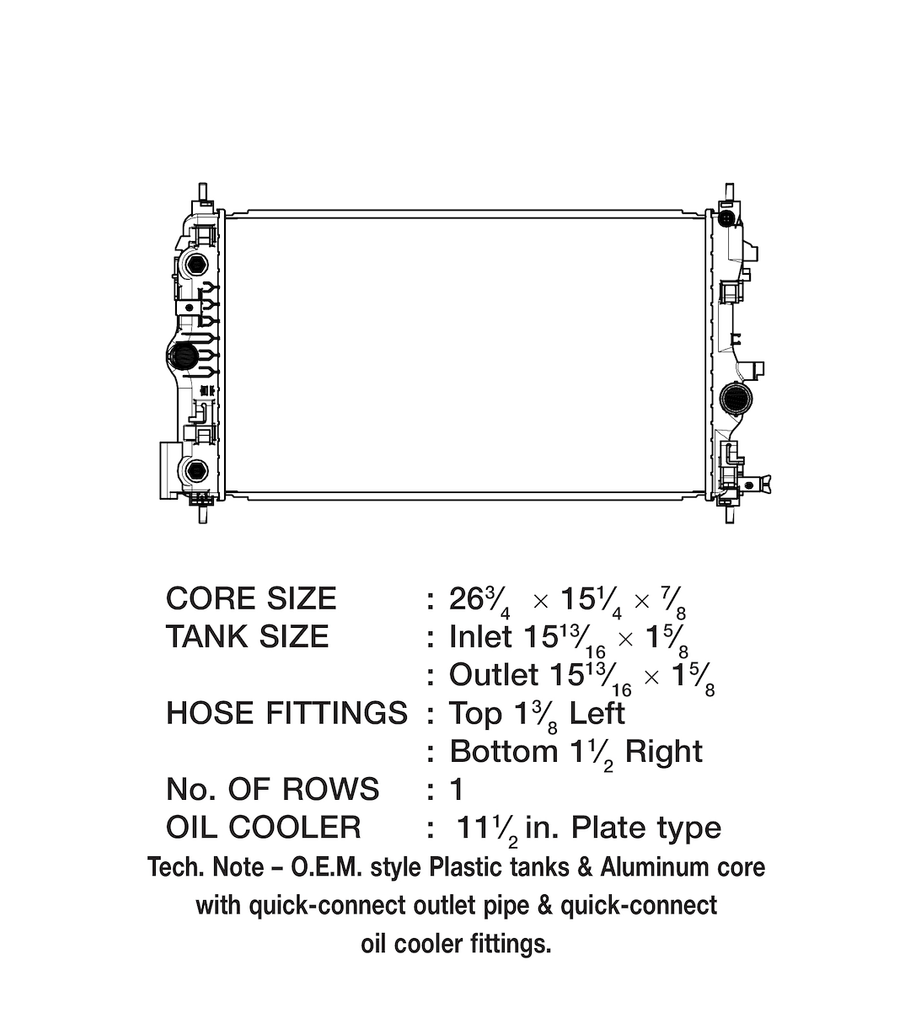

The CSF Radiator is engineered for high performance and durability, featuring a core made of aluminum with plastic tanks. With dimensions of 26-3/4 inches in length, 15-1/4 inches in height, and 7/8 inch in depth, this radiator is designed to fit a variety of applications. It includes a built-in transmission cooler and engine oil cooler, enhancing the overall cooling system efficiency. The radiator is constructed with OEM specified plastic tank-aluminum core technology, ensuring strength and longevity under extreme conditions.

This radiator is equipped with 1-3/8 inch top left and 1-1/2 inch bottom right hose connections, facilitating easy installation. The components are rigorously tested, with a 100 percent leak test conducted at 150 percent of operating pressure before leaving the factory. The high performance multi-louvered design of the fins maximizes airflow, contributing to effective heat dissipation. Additionally, the use of virgin grade engineered plastic resins in the tanks provides added strength and durability, making it suitable for demanding environments.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. Each radiator is carefully engineered and wind tunnel tested to ensure optimal performance. The gaskets are made from special grade EPDM rubber, capable of withstanding extreme temperatures, ensuring reliability in various operating conditions. This radiator is a robust solution for maintaining engine temperature and performance.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3523
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 26-3/4 Inch
• Core Height (IN): 15-1/4 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2011-2015 Chevrolet Cruze
• 2016-2016 Chevrolet Cruze Limited
