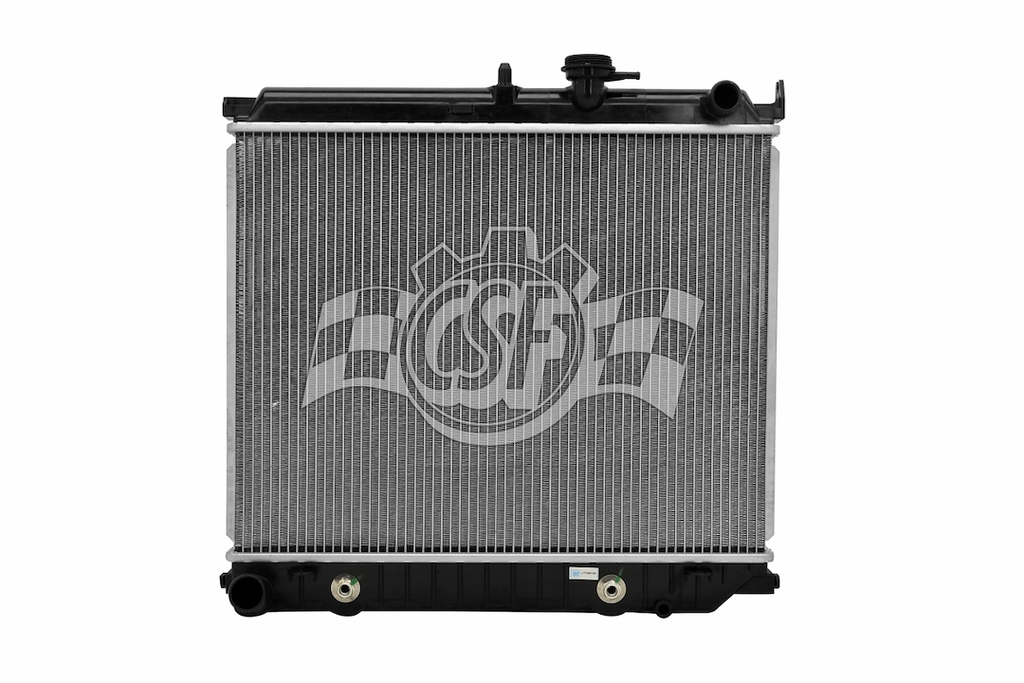

CSF Radiator With Transmission Cooler (MPN: 3471)

High performance aluminum core radiator designed for efficient cooling and durability.

The CSF Radiator is engineered for optimal performance with a core dimension of 18-1/8 inches in length, 22-3/4 inches in height, and 7/8 inches in depth. This downflow radiator features a single row design with an aluminum core and robust plastic tanks made from virgin grade engineered plastic resins, ensuring strength and durability. The radiator is equipped with 1-5/16 inch top right and 1-9/16 inch bottom left hose connections, facilitating easy installation and compatibility with various vehicle models.

Designed to meet high performance standards, the CSF Radiator includes a built-in transmission cooler and engine oil cooler, enhancing the cooling efficiency of your vehicle. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance. The high-performance multi-louvered fin design maximizes airflow, contributing to effective heat dissipation.

With over 50 years of experience and more than 30 million units sold worldwide, CSF radiators are recognized for their quality and performance. The use of special grade EPDM rubber gaskets allows the radiator to withstand extreme temperatures, making it a durable choice for demanding conditions. This radiator is a practical solution for those seeking a reliable and efficient cooling system.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

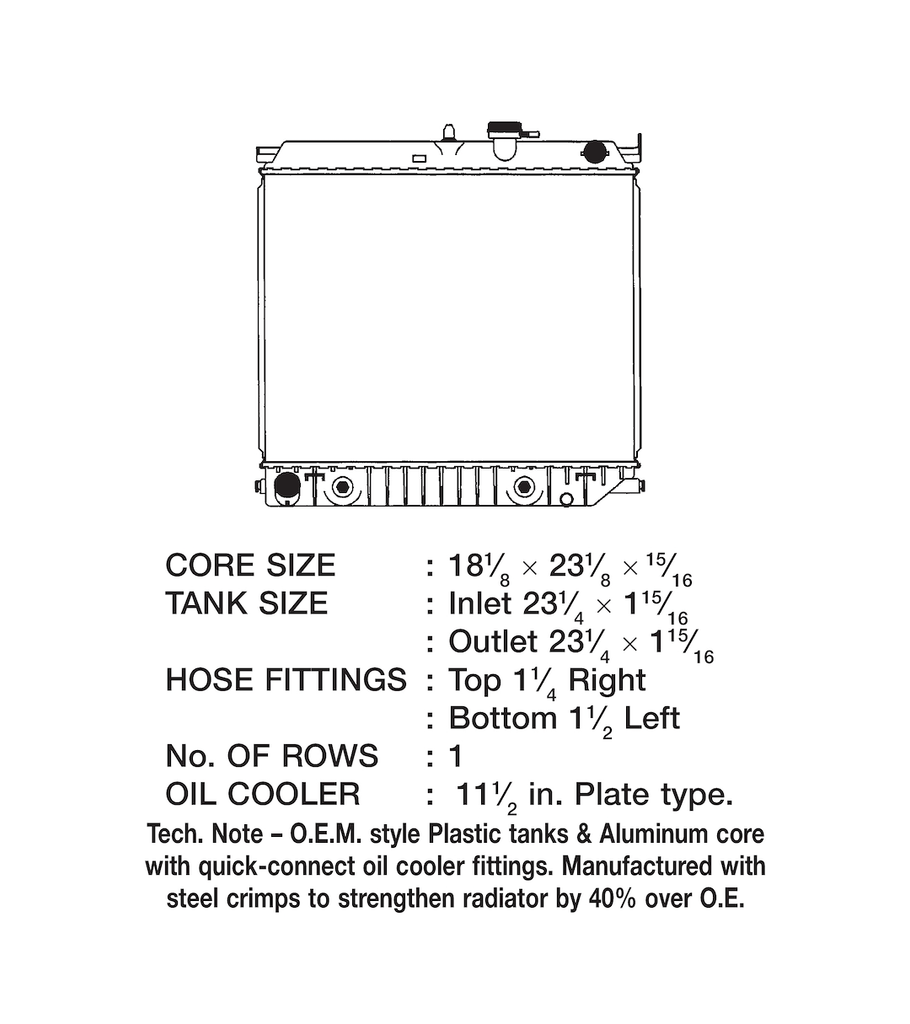

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3471
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-5/16 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-5/16 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 18-1/8 Inch
• Core Height (IN): 22-3/4 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2004-2012 Chevrolet Colorado
• 2004-2012 GMC Canyon
• 2006-2006 Isuzu i-280
• 2007-2008 Isuzu i-290
• 2006-2006 Isuzu i-350
• 2007-2008 Isuzu i-370
