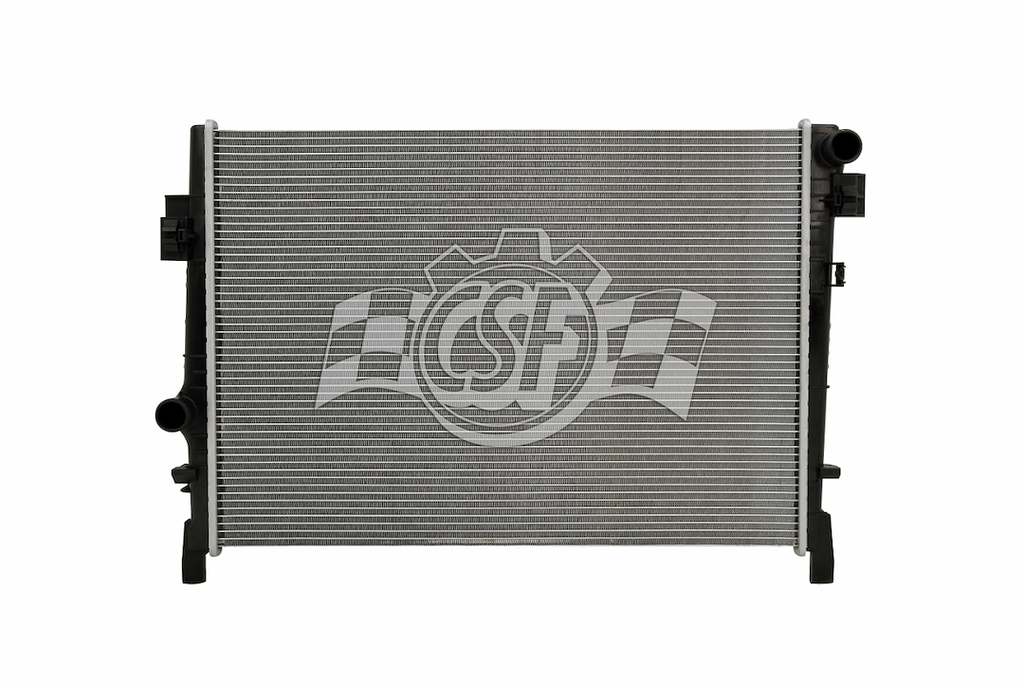

CSF Radiator With Transmission Cooler (MPN: 3455)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance cooling, featuring a robust aluminum core with plastic tanks. With core dimensions of 25-3/16 inches in length, 18 inches in height, and a depth of 5/8 inches, this radiator is designed to fit a variety of applications. The crossflow design ensures efficient heat dissipation, while the single row construction maximizes airflow for improved cooling performance.

Constructed with OEM specified plastic tank-aluminum core technology, the CSF Radiator utilizes virgin grade engineered plastic resins that are glass filled for enhanced strength and durability. The high performance multi-louvered fins are designed to meet OEM specifications, ensuring optimal heat transfer and cooling efficiency. Each unit is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, guaranteeing reliability and performance.

This radiator includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and cooling capabilities. The gaskets are made from special grade EPDM rubber, capable of withstanding extreme temperatures up to -120 degrees Fahrenheit. With its rigorous testing and quality assurance processes, the CSF Radiator is a dependable choice for maintaining engine temperature and performance.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3455
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver

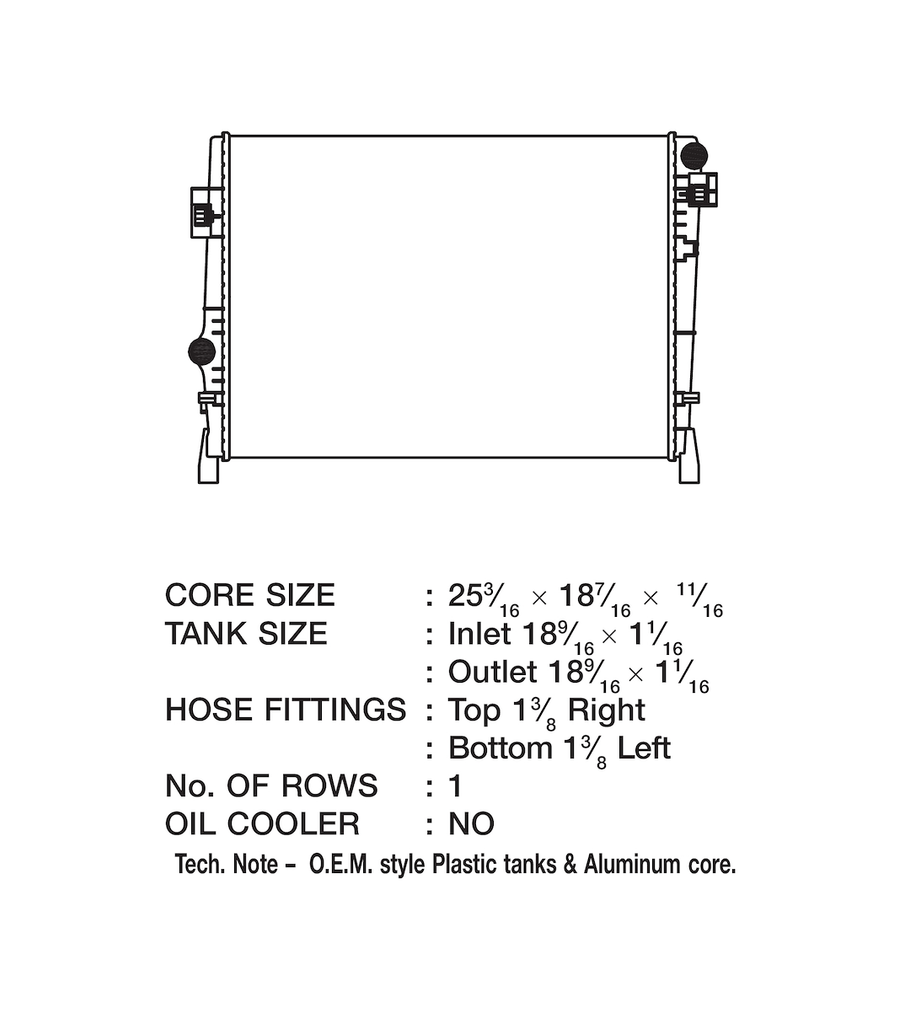

• Core Length (IN): 25-3/16 Inch
• Core Height (IN): 18 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2009-2020 Dodge Journey
