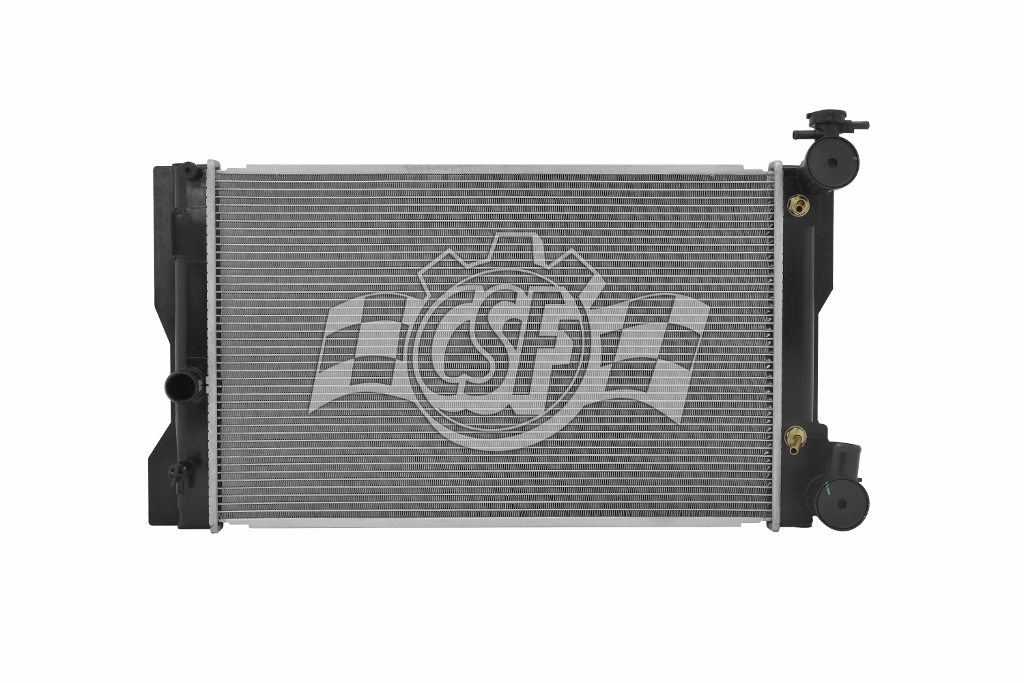

CSF Radiator With Transmission Cooler (MPN: 3445)

High performance aluminum radiator designed for optimal cooling efficiency.

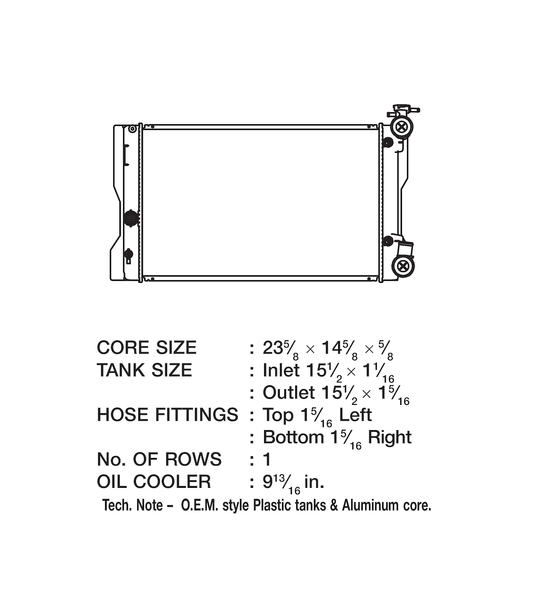

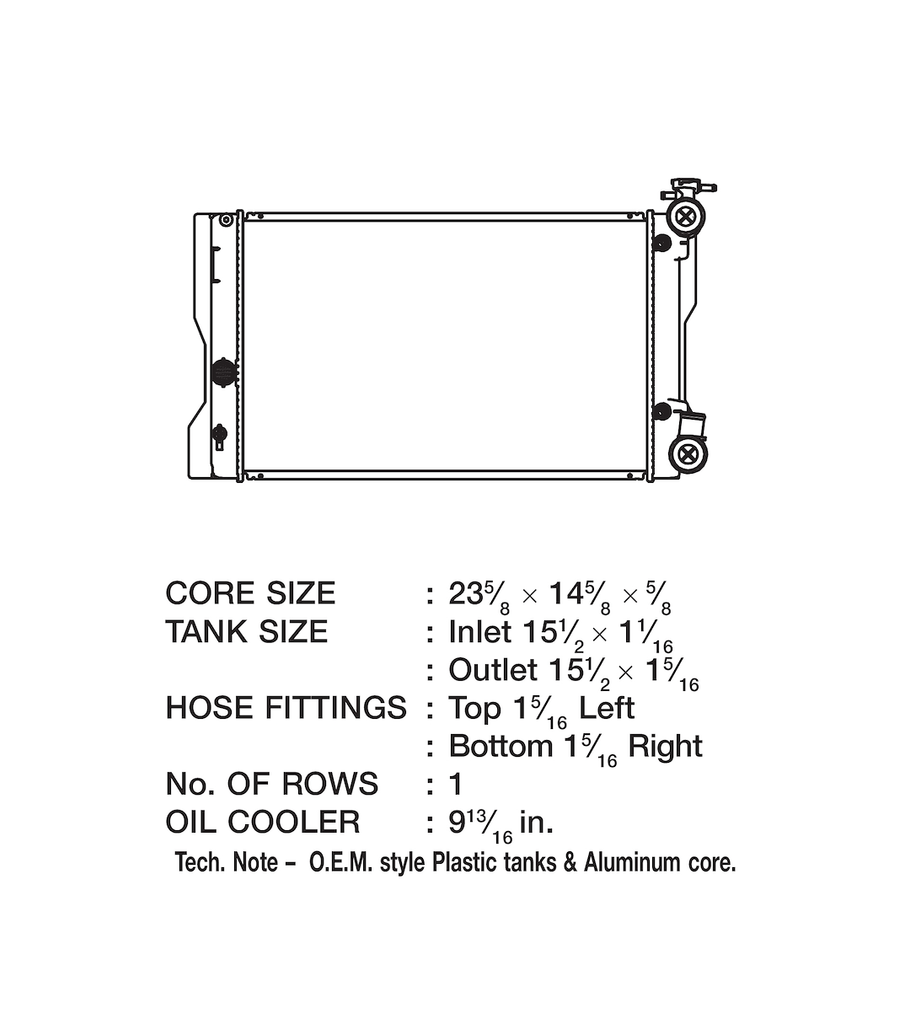

The CSF Radiator is engineered for high performance and durability, featuring a core made of aluminum with plastic tanks. With core dimensions of 23-5/8 inches in length, 14-5/8 inches in height, and 5/8 inches in depth, this radiator is designed to fit a variety of applications. It includes a high performance transmission cooler and an engine oil cooler, ensuring efficient heat dissipation under demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the CSF Radiator utilizes virgin grade engineered plastic resins that are glass filled for enhanced strength and longevity. The design incorporates welded tubes or the latest generation B-tube design, along with a high performance multi-louvered fin configuration that meets OEM specifications. Each unit is rigorously leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

The radiator features 1-5/16 inch hose connections located at the top left and bottom right, facilitating easy installation. Gaskets made from special grade EPDM rubber are included to withstand extreme temperatures, making this radiator suitable for a wide range of environments. With over 50 years of experience and more than 30 million units sold worldwide, CSF continues to set high performance standards in radiator manufacturing.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3445
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-5/16 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 23-5/8 Inch
• Core Height (IN): 14-5/8 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2009-2010 Pontiac Vibe
• 2009-2019 Toyota Corolla
• 2009-2013 Toyota Matrix
