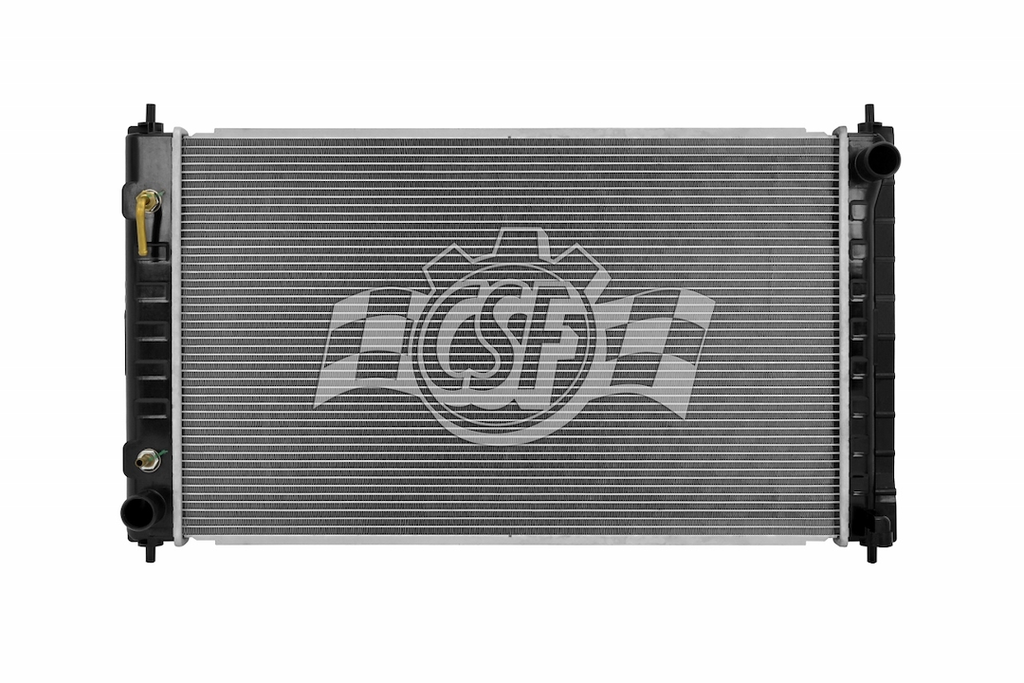

CSF Radiator With Transmission Cooler (MPN: 3433)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance cooling, featuring a robust aluminum core with plastic tanks. With core dimensions of 26-9/16 inches in length, 16 inches in height, and a depth of 5/8 inches, this radiator is designed to fit a variety of applications. It includes a high performance transmission cooler and an engine oil cooler, ensuring efficient heat dissipation under demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the radiator is built to withstand extreme temperatures, thanks to its virgin grade engineered plastic resins and special grade EPDM rubber gaskets. The welded type or latest generation B-tube design enhances fluid flow, while the multi-louvered fins provide superior heat transfer.

Each CSF Radiator undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and durability. The top right inlet and bottom left outlet hose connections are designed for easy installation, making this radiator a practical choice for automotive applications requiring efficient cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3433
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver

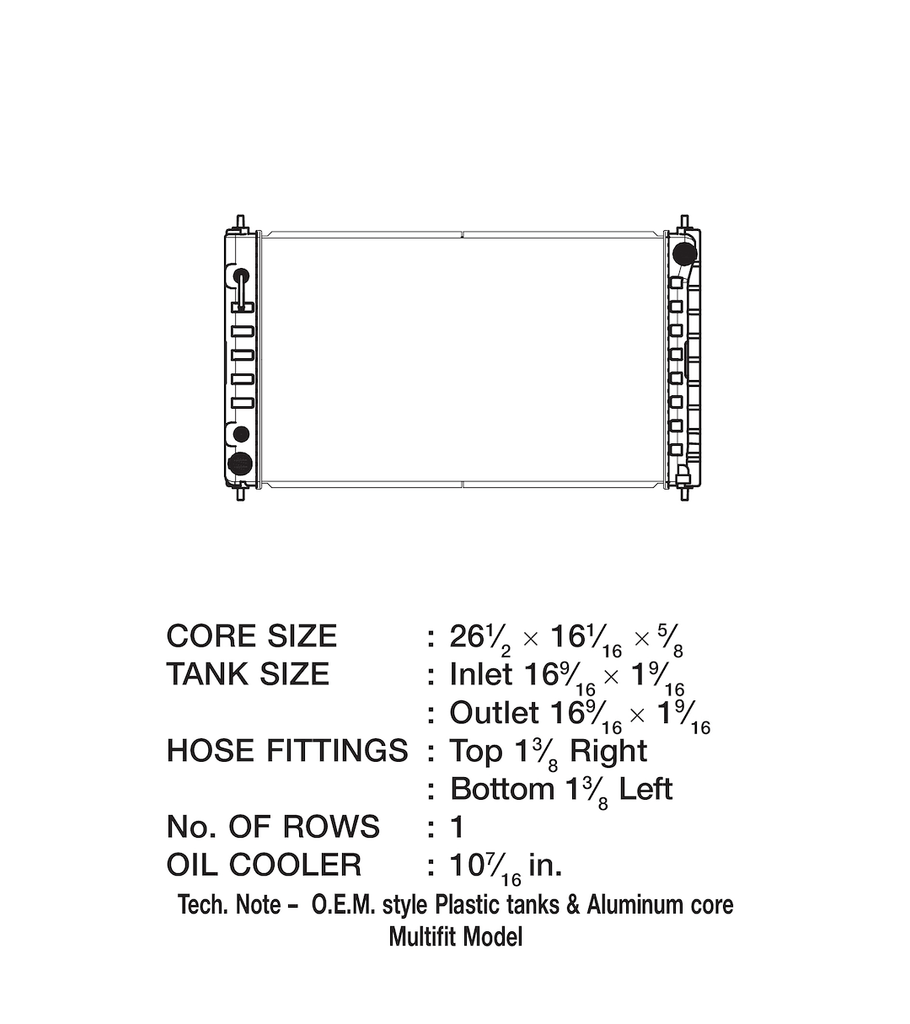

• Core Length (IN): 26-9/16 Inch
• Core Height (IN): 16 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2007-2018 Nissan Altima
• 2009-2014 Nissan Maxima
• 2016-2023 Nissan Maxima
