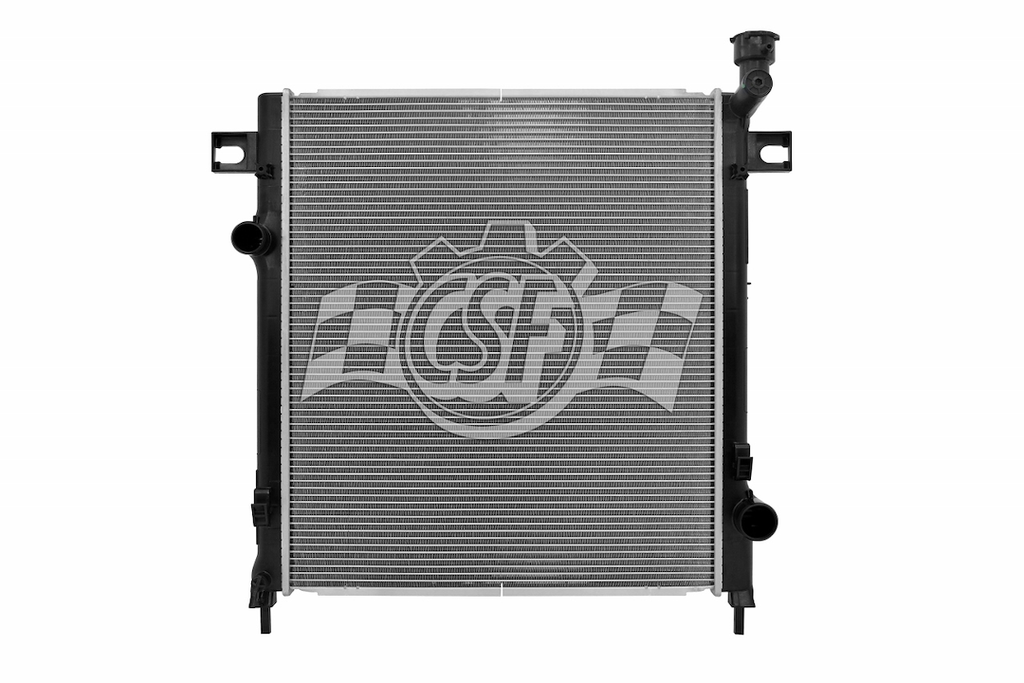

CSF Radiator With Transmission Cooler (MPN: 3425)

High performance aluminum radiator designed for optimal cooling efficiency.

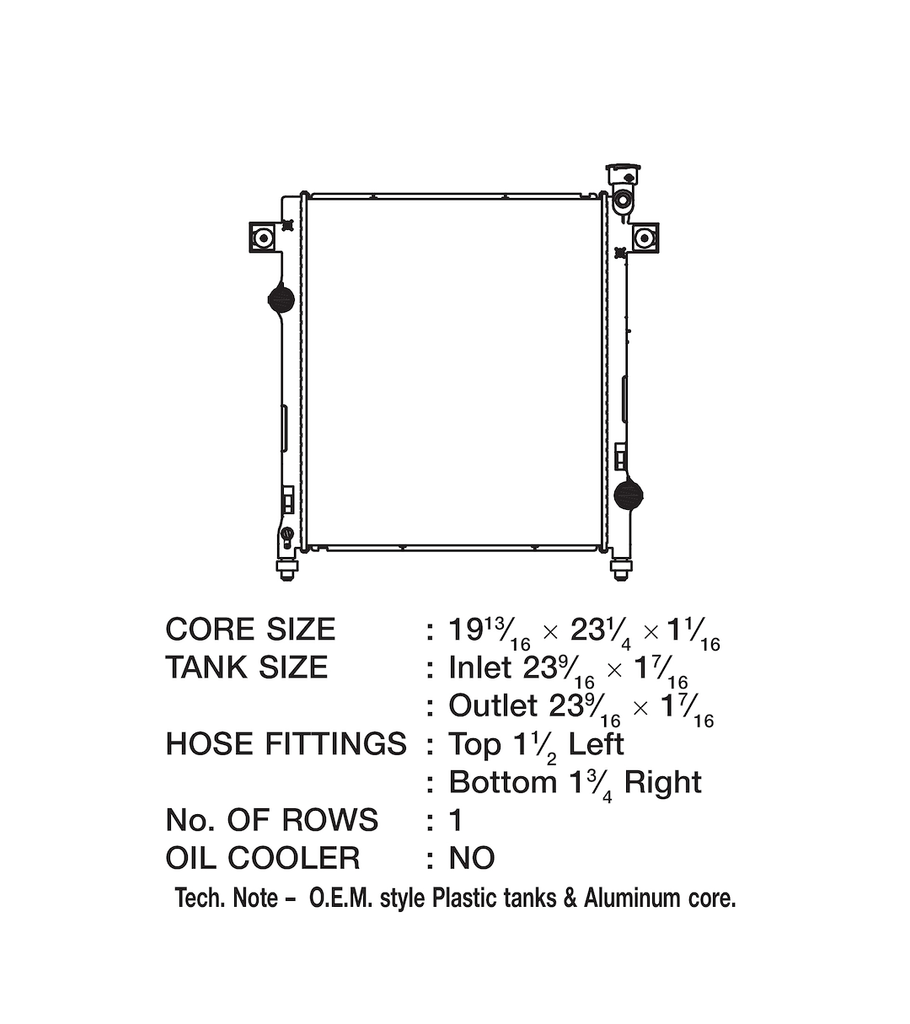

The CSF Radiator is engineered for high performance cooling, featuring a robust aluminum core with plastic tanks. With core dimensions of 19-13/16 inches in length, 23 inches in height, and 7/8 inch in depth, this radiator is designed to fit a variety of applications. It includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and heat dissipation. The construction utilizes OEM specified plastic tank-aluminum core design, ensuring durability and strength under extreme conditions.

This radiator is equipped with 1-1/2 inch top left and 1-3/4 inch bottom right hose connections, facilitating easy installation and compatibility with existing systems. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance. The multi-louvered fin design maximizes airflow, contributing to efficient cooling and engine performance.

CSF has over 50 years of experience in manufacturing radiators, with a commitment to high performance standards. The use of virgin grade engineered plastic resins in the tanks provides added strength, while special grade EPDM rubber gaskets withstand extreme temperatures. This radiator is a testament to CSF's dedication to quality and innovation in automotive cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3425
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-3/4 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/4 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 19-13/16 Inch
• Core Height (IN): 23 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2008-2012 Jeep Liberty
