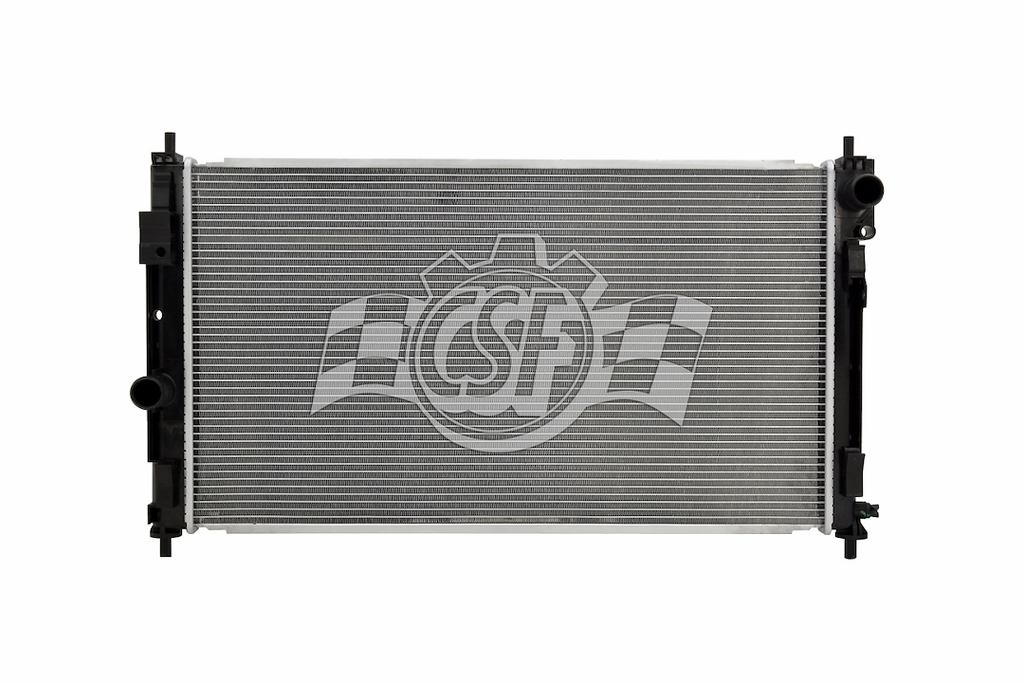

CSF Radiator With Transmission Cooler (MPN: 3415)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance and durability, featuring a robust aluminum core with OEM specified plastic tanks. This radiator is designed with a crossflow configuration, ensuring efficient coolant flow and heat dissipation. The construction utilizes virgin grade engineered plastic resins that are glass filled for enhanced strength, making it suitable for extreme temperature conditions.

This model includes a high performance transmission cooler with a built-in turbulator, optimizing fluid dynamics for improved cooling efficiency. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance. The radiator is designed to fit seamlessly with 1-3/8 inch hose connections located at the top right and bottom left, making installation straightforward.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. Their products are ISO/TSO certified, reflecting a commitment to high performance standards. The multi-louvered fin design enhances airflow, contributing to the overall cooling performance of the vehicle.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3415
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 27-9/16 Inch
• Core Height (IN): 15-5/8 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2011-2014 Chrysler 200
• 2007-2010 Chrysler Sebring
• 2008-2014 Dodge Avenger
• 2007-2012 Dodge Caliber
• 2007-2017 Jeep Compass
• 2007-2017 Jeep Patriot
