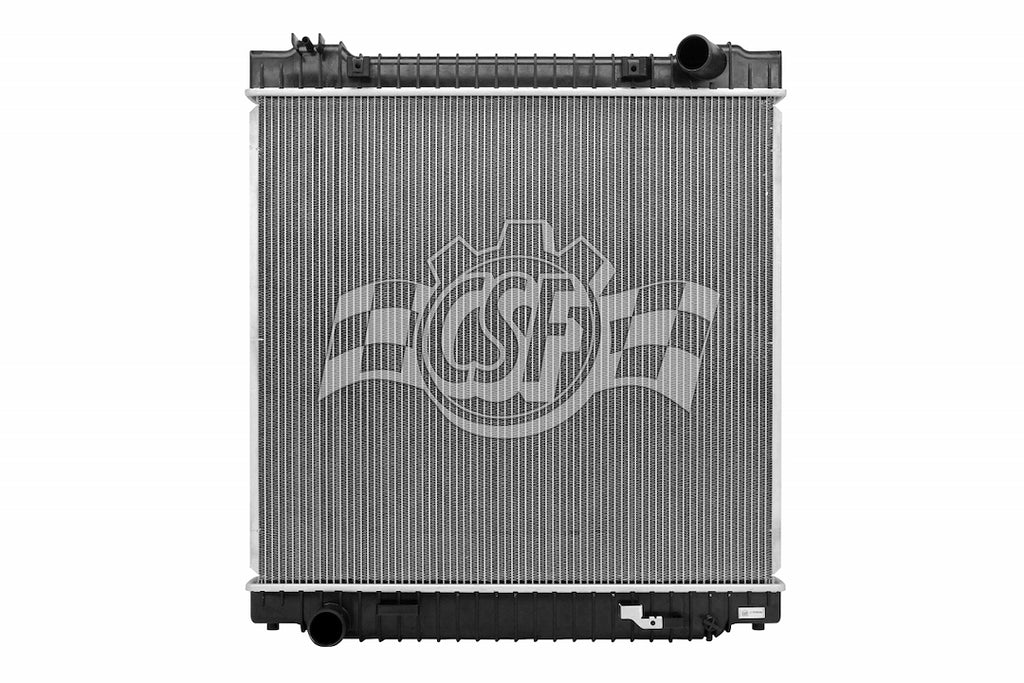

CSF Radiator with Transmission Cooler (MPN: 3396)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered to meet high performance standards, ensuring effective cooling for a variety of vehicles. With core dimensions of 24-15/16 inches in width, 25-7/8 inches in length, and a depth of 1-5/8 inches, this radiator features a two-row design that enhances cooling capacity. Constructed from aluminum with OEM specified plastic tanks, it combines durability with lightweight performance, making it suitable for demanding applications.

This radiator is equipped with a high performance transmission cooler that includes a built-in turbulator, optimizing fluid flow and heat dissipation. The design incorporates advanced features such as glass-filled plastic tanks for added strength and EPDM rubber gaskets that withstand extreme temperatures. Each unit undergoes rigorous testing, ensuring it is leak-free and capable of handling 150 percent of operating pressure before leaving the factory.

The CSF Radiator is designed for a drop-in fit, simplifying installation while maintaining compatibility with various vehicle models. Its multi-louvered fin design maximizes airflow, contributing to superior cooling performance. This radiator is an essential component for maintaining engine efficiency and longevity.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes - Welded Type Or Latest Generation "B-Tube" Design
• Fins High Performance "Multi-Louvered Design" OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• Drop-In Fit
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3396
• Flow Direction: Downflow
• Core Rows: Two
• Core Material: Aluminum

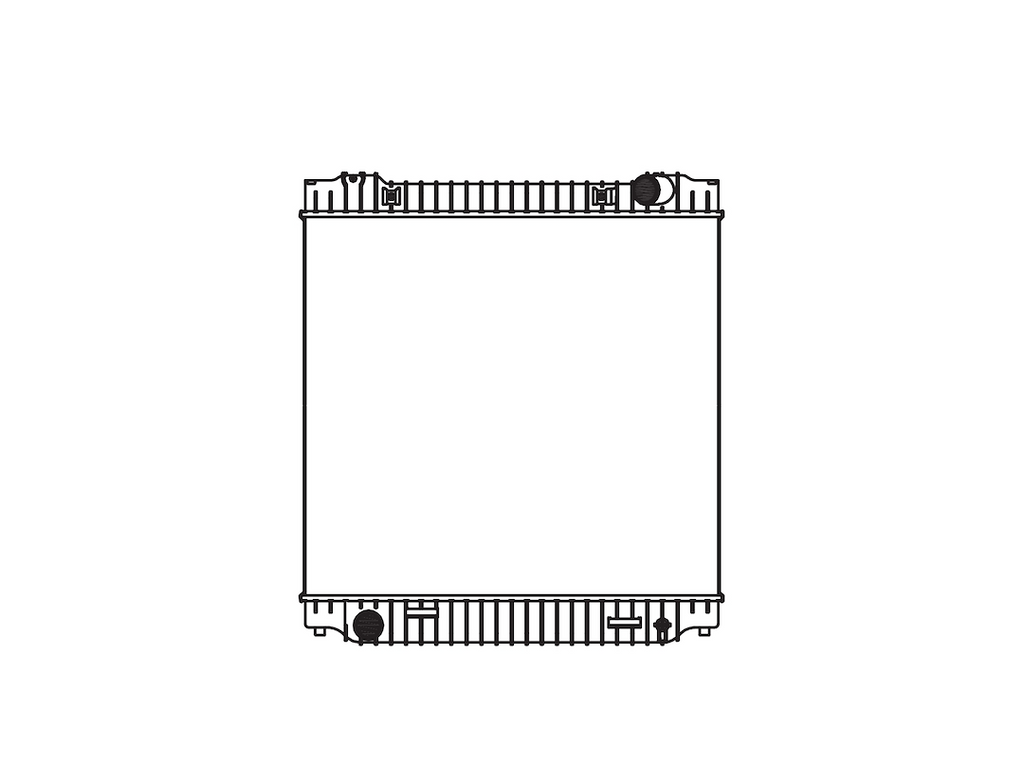

• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-3/4 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-3/4 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 23-5/8 Inch
• Core Height (IN): 24-15/16 Inch
• Core Depth (IN): 1-5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2004-2005 Ford E-350 Club Wagon
• 2004-2010 Ford E-350 Super Duty
• 2004-2010 Ford E-450 Super Duty
