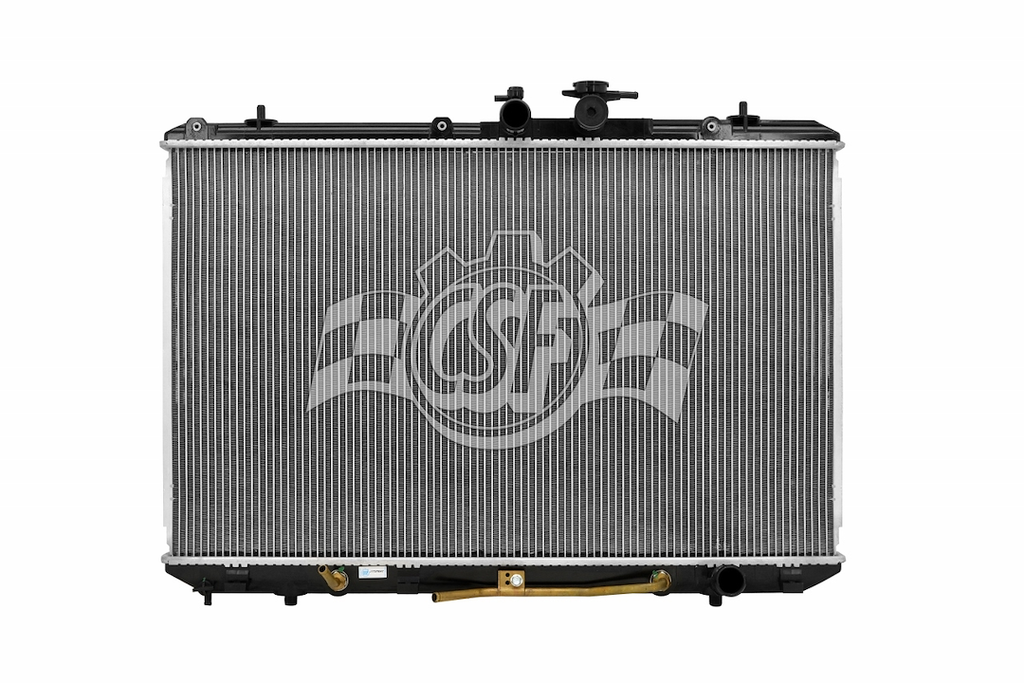

CSF Radiator With Transmission Cooler (MPN: 3375)

High performance aluminum core radiator designed for efficient cooling and durability.

The CSF Radiator is engineered for optimal cooling performance, featuring a robust aluminum core with plastic tanks. This radiator is designed with a downflow configuration and includes a high performance transmission cooler, ensuring effective heat dissipation for various automotive applications. The construction utilizes OEM specified plastic tank-aluminum core technology, enhancing strength and longevity under extreme conditions.

Manufactured with virgin grade engineered plastic resins, the tanks are glass filled for added durability. The radiator is equipped with special grade EPDM rubber gaskets that can withstand temperatures as low as -120 degrees Fahrenheit. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance.

The design incorporates advanced features such as welded type or the latest generation B-tube design for the tubes, and a high performance multi-louvered fin design that meets OEM specifications. With over 50 years of experience and more than 30 million units sold worldwide, CSF continues to set high performance standards in radiator manufacturing.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

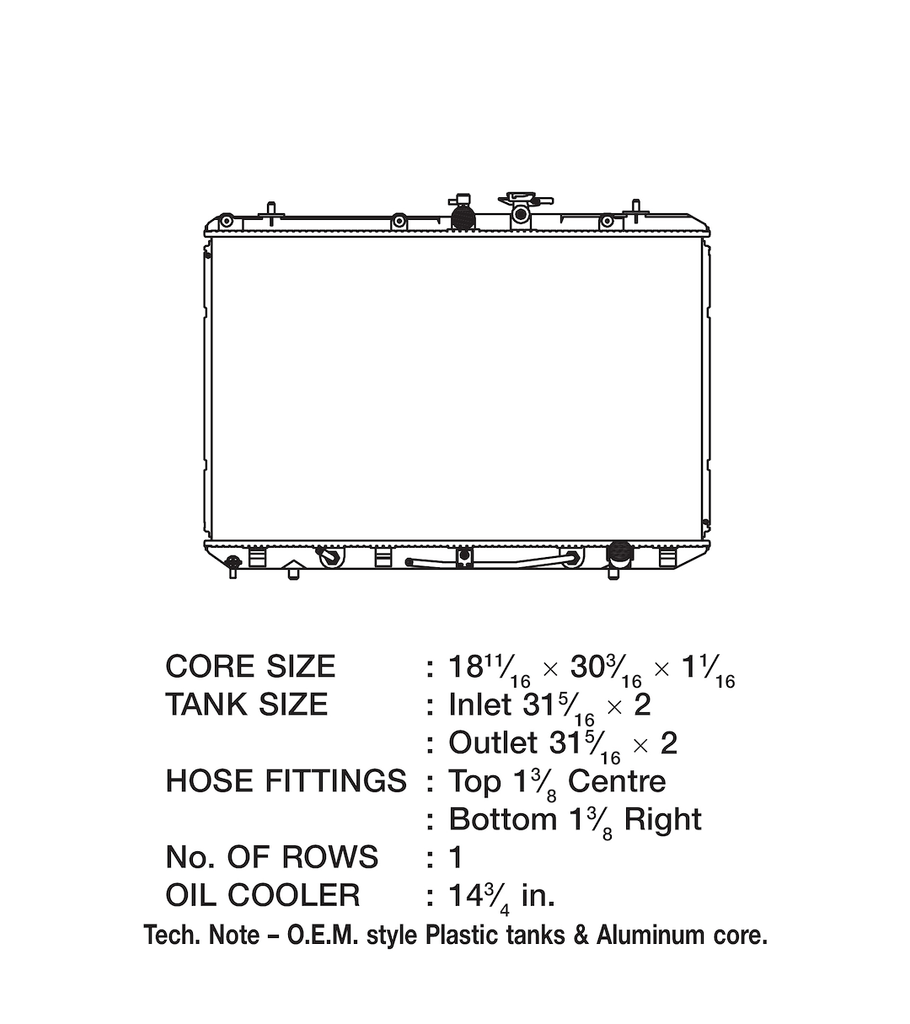

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3375
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Center
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 18-11/16 Inch
• Core Height (IN): 30-5/16 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2008-2013 Toyota Highlander
