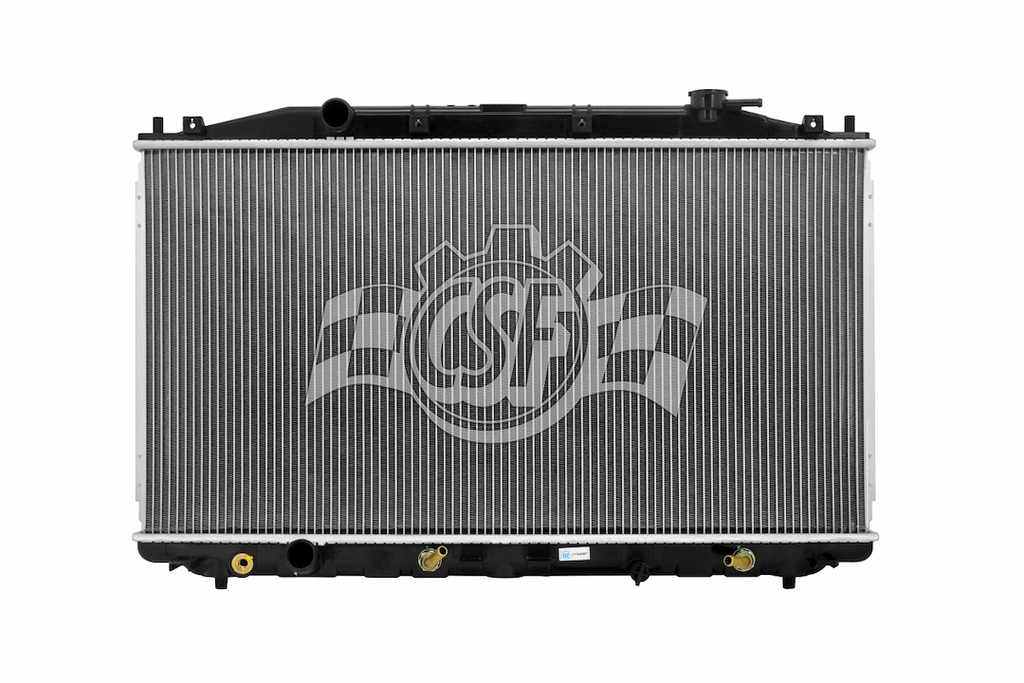

CSF Radiator With Transmission Cooler (MPN: 3368)

High performance aluminum core radiator designed for efficient cooling and durability.

The CSF Radiator is engineered for optimal performance with a core dimension of 15-13/16 inches in length, 29-11/16 inches in height, and a depth of 5/8 inches. This single-row downflow radiator features an aluminum core with robust plastic tanks, ensuring a lightweight yet durable construction. The tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength, while the gaskets are crafted from special grade EPDM rubber to withstand extreme temperatures up to -120 degrees Fahrenheit.

Designed with high performance in mind, the radiator incorporates a multi-louvered fin design that meets OEM specifications, providing efficient heat dissipation. It is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance. Additionally, the radiator includes a built-in transmission cooler with a special turbulator for improved fluid dynamics, making it suitable for various automotive applications.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. Each radiator is carefully engineered and wind tunnel tested to meet high performance standards, making it a trusted choice for automotive cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

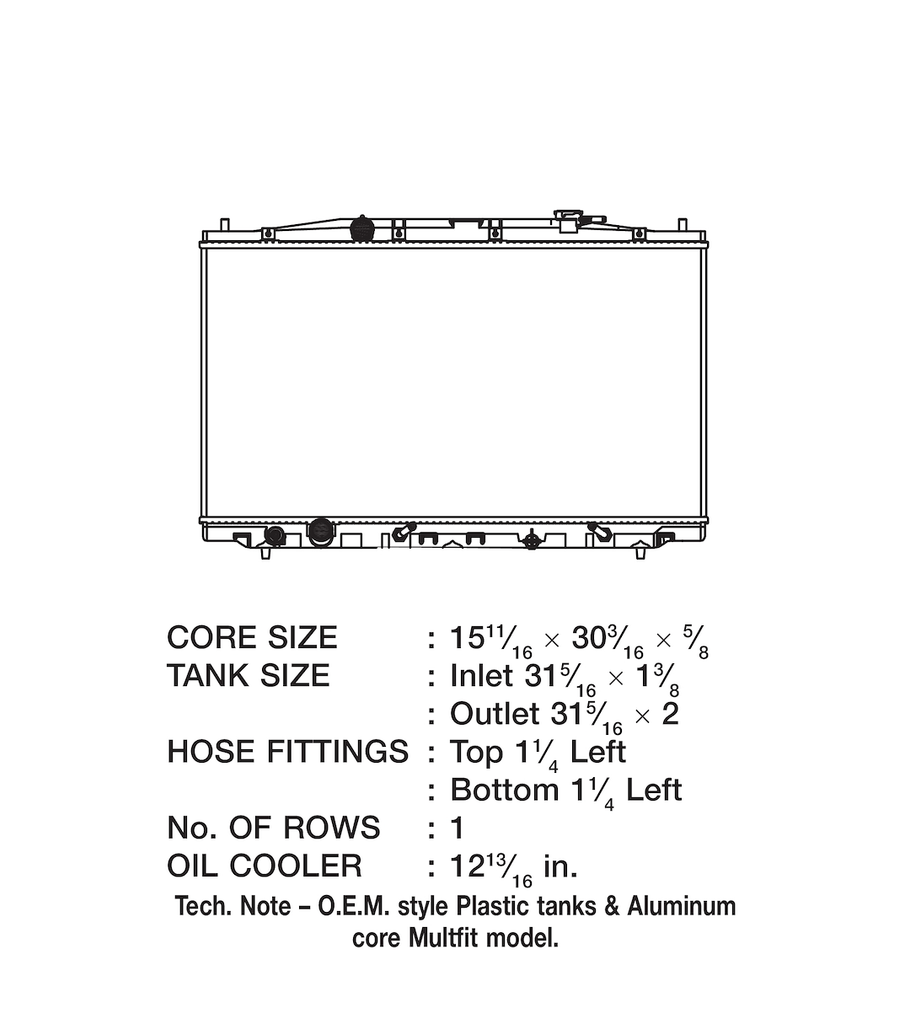

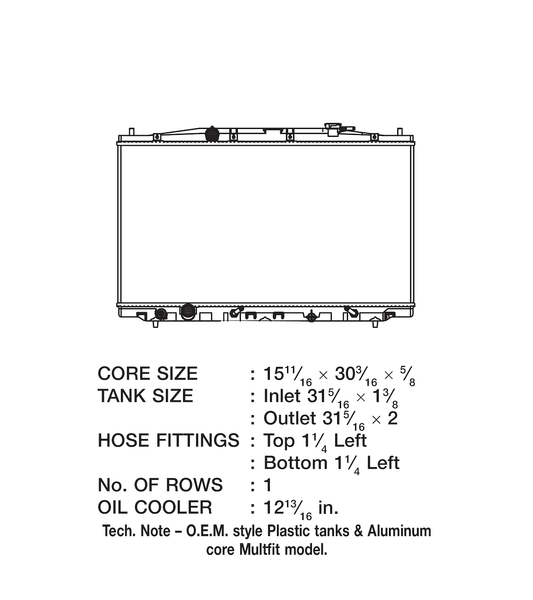

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3368
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/4 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/4 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 15-13/16 Inch
• Core Height (IN): 29-11/16 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2008-2012 Honda Accord
