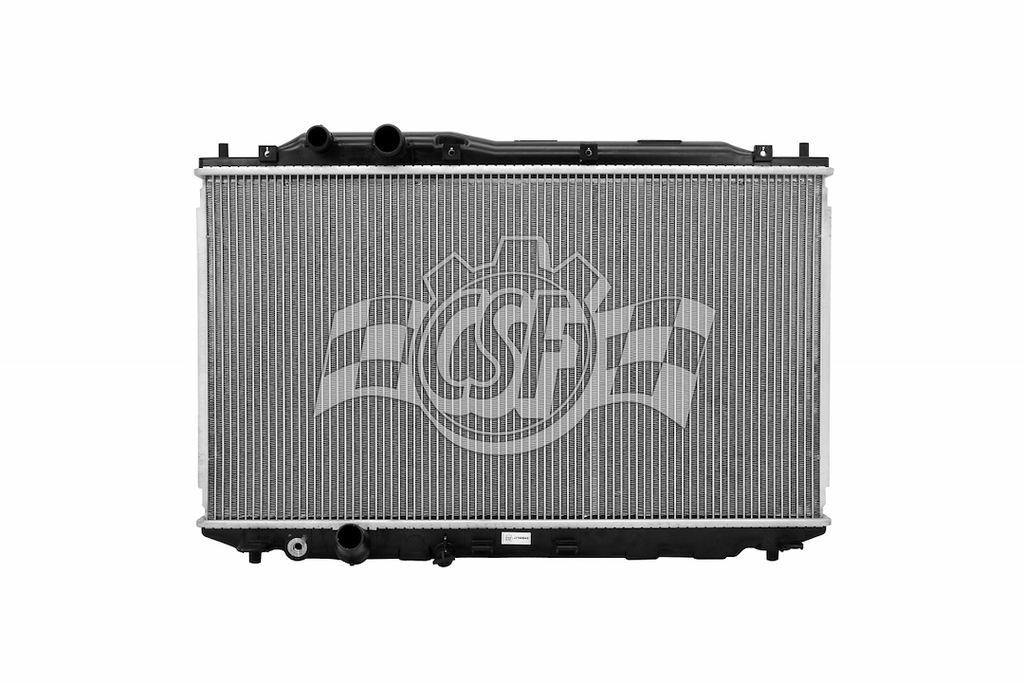

CSF Radiator With Transmission Cooler (MPN: 3362)

High performance aluminum core radiator designed for efficient cooling.

The CSF Radiator features a robust aluminum core construction with OEM specified plastic tanks, ensuring durability and efficiency. Designed for downflow applications, this radiator measures 14-3/4 inches in length, 26-11/16 inches in height, and 5/8 inch in depth, making it suitable for various vehicle models. It includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and cooling efficiency.

Engineered with virgin grade engineered plastic resins, the tanks are glass filled for added strength, while special grade EPDM rubber gaskets withstand extreme temperatures up to -120 degrees Fahrenheit. The radiator is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

With a single core row and a multi-louvered fin design, this radiator is optimized for heat dissipation. The inlet and outlet hose connections are conveniently located at the top left and bottom left, respectively, accommodating various installation needs. CSF has over 50 years of experience in manufacturing high performance radiators, making this product a trusted choice for effective engine cooling.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3362
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/4/ 1-1/16 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/4 Inch
• Finish: Natural
• Color: Black/ Silver

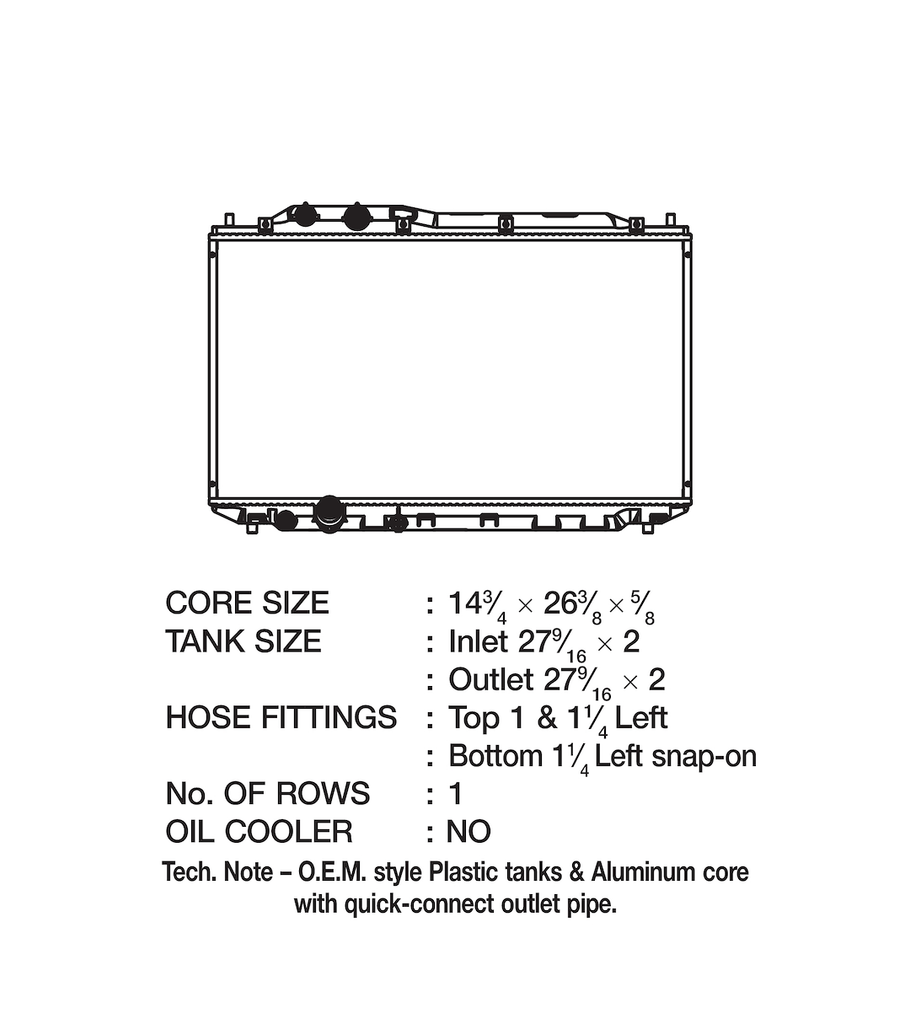

• Core Length (IN): 14-3/4 Inch
• Core Height (IN): 26-11/16 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2006-2011 Honda Civic
