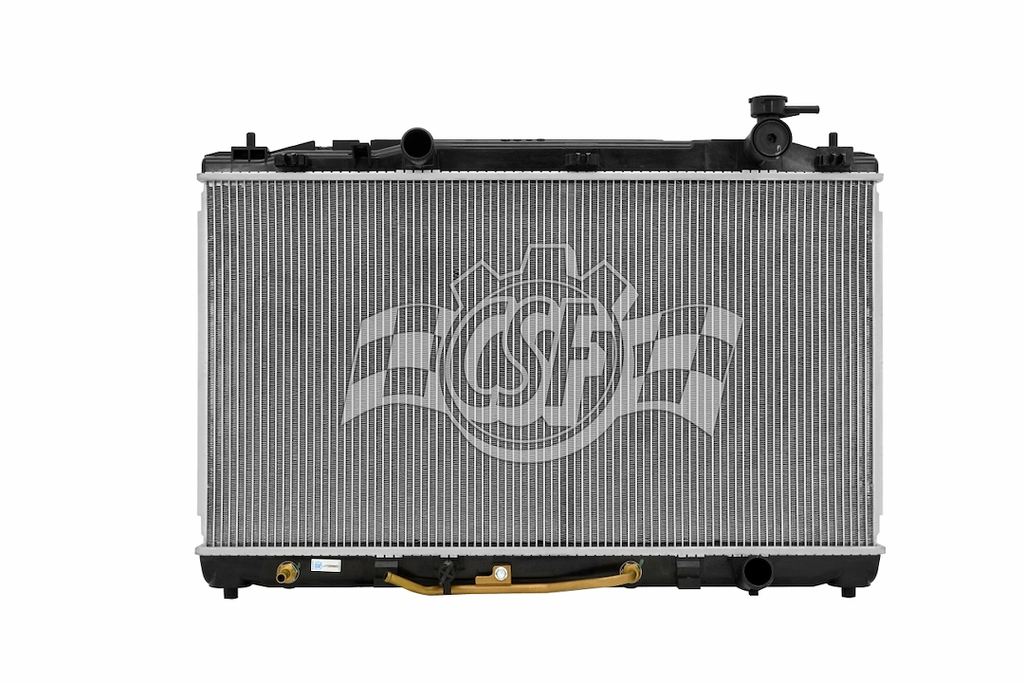

CSF Radiator With Transmission Cooler (MPN: 3312)

High performance aluminum core radiator designed for durability and efficiency.

The CSF Radiator is engineered for optimal cooling performance with a robust aluminum core and plastic tanks. Measuring 15-3/4 inches in length, 29-1/16 inches in height, and 5/8 inches in depth, this downflow radiator features a single core row design that ensures efficient heat dissipation. The unit is equipped with 1-3/8 inch hose connections located at the top left and bottom right, facilitating easy installation and compatibility with various vehicle models.

Constructed from virgin grade engineered plastic resins, the tanks are glass filled for enhanced strength and durability. The radiator is designed to withstand extreme temperatures, with gaskets made from special grade EPDM rubber that can endure conditions as low as -120 degrees Fahrenheit. Each radiator undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance.

Additionally, the CSF Radiator includes a high performance transmission cooler with a built-in turbulator, optimizing fluid flow and cooling efficiency. This product is a testament to over 50 years of engineering excellence, with more than 30 million units sold worldwide, making it a trusted choice for automotive cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

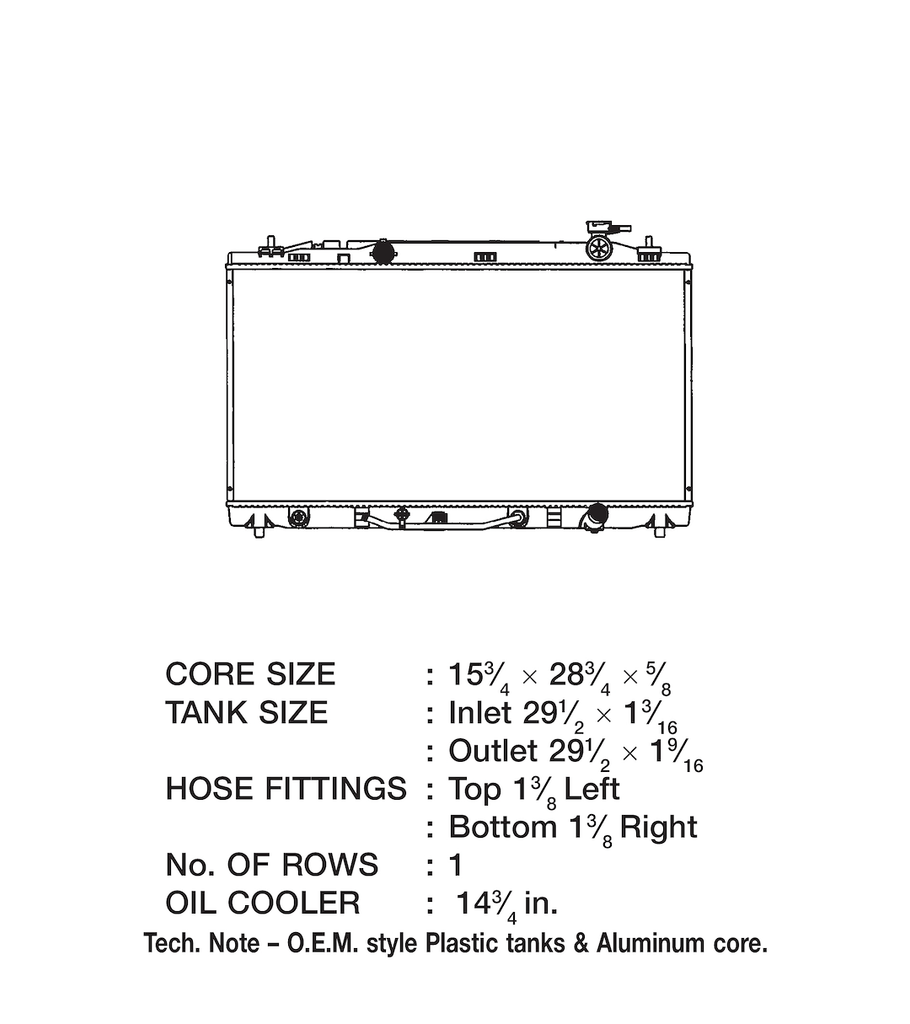

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3312
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 15-3/4 Inch
• Core Height (IN): 29-1/16 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2007-2011 Toyota Camry
