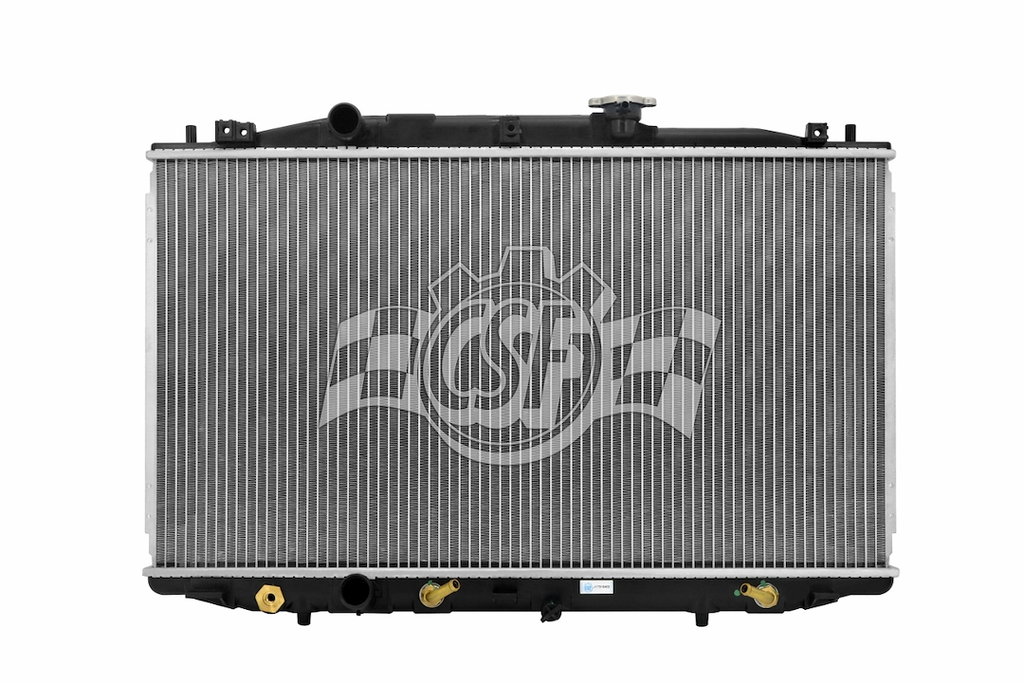

CSF Radiator With Transmission Cooler (MPN: 3185)

High performance aluminum core radiator designed for efficient cooling and durability.

The CSF Radiator is engineered for optimal performance with a downflow design, featuring a robust aluminum core and durable plastic tanks. Measuring 15-13/16 inches in length, 28-1/4 inches in height, and 5/8 inch in depth, this radiator is built to meet OEM specifications and withstand extreme temperatures. It includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and cooling efficiency.

Constructed with virgin grade engineered plastic resins, the tanks are glass filled for added strength and longevity. The radiator is equipped with EPDM rubber gaskets that can endure temperatures as low as -120 degrees Fahrenheit, ensuring reliability in various conditions. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory.

With a single core row and a multi-louvered fin design, the CSF Radiator maximizes heat dissipation while maintaining structural integrity. The inlet and outlet hose connections are strategically placed for easy installation, making it a practical choice for automotive applications. This radiator is a testament to over 50 years of engineering excellence and is trusted by professionals worldwide.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3185
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/8 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/4 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 15-13/16 Inch
• Core Height (IN): 28-1/4 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: Yes
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2003-2007 Honda Accord
