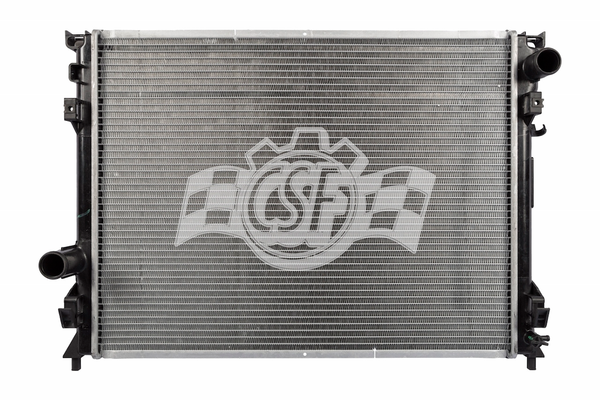

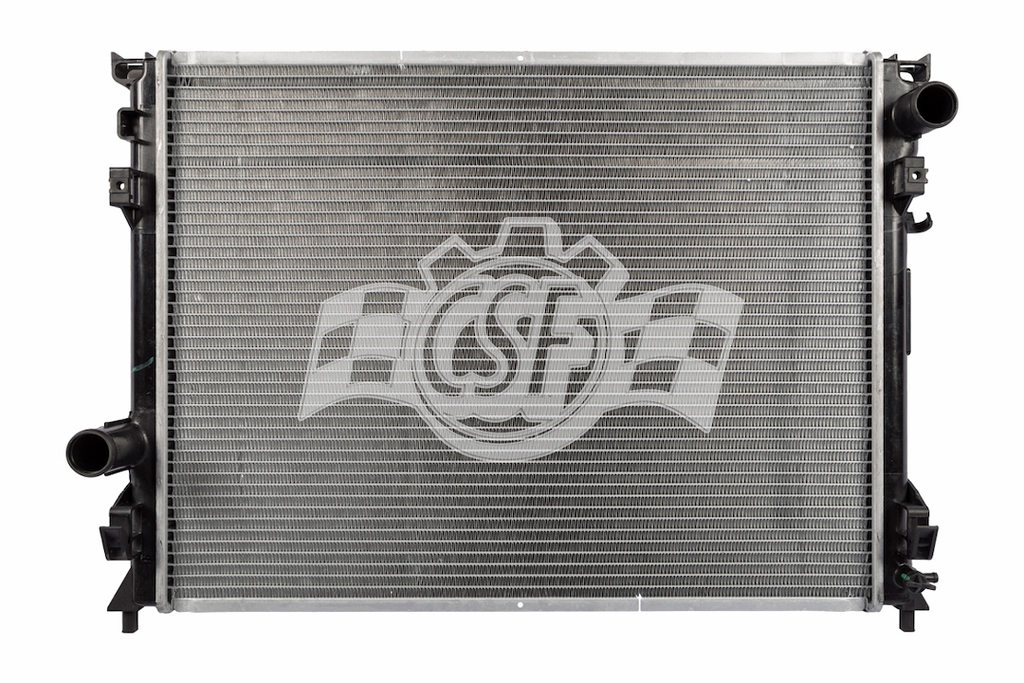

CSF Radiator With Transmission Cooler (MPN: 3174)

High performance aluminum core radiator designed for durability and efficiency.

The CSF Radiator features a robust aluminum core construction with OEM specified plastic tanks, ensuring optimal performance and longevity. Engineered with virgin grade engineered plastic resins that are glass filled, the tanks provide enhanced strength and durability under extreme conditions. This radiator is designed with a crossflow flow direction and includes a high performance transmission cooler with a built-in turbulator, maximizing cooling efficiency for your vehicle.

With dimensions of 24-1/8 inches in length, 18-7/16 inches in height, and a depth of 1-1/4 inches, this single row radiator is suitable for various applications. The inlet and outlet hose connections are conveniently located at the top right and bottom left, respectively, both measuring 1-1/2 inches. Each unit undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

CSF has over 50 years of experience in manufacturing radiators, with more than 30 million units sold worldwide. Their commitment to high performance standards is evident in the meticulous engineering and wind tunnel testing of their products. This radiator is designed to withstand extreme temperatures, with gaskets made from special grade EPDM rubber, making it a dependable choice for maintaining optimal engine temperatures.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3174
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Left
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Black/ Silver

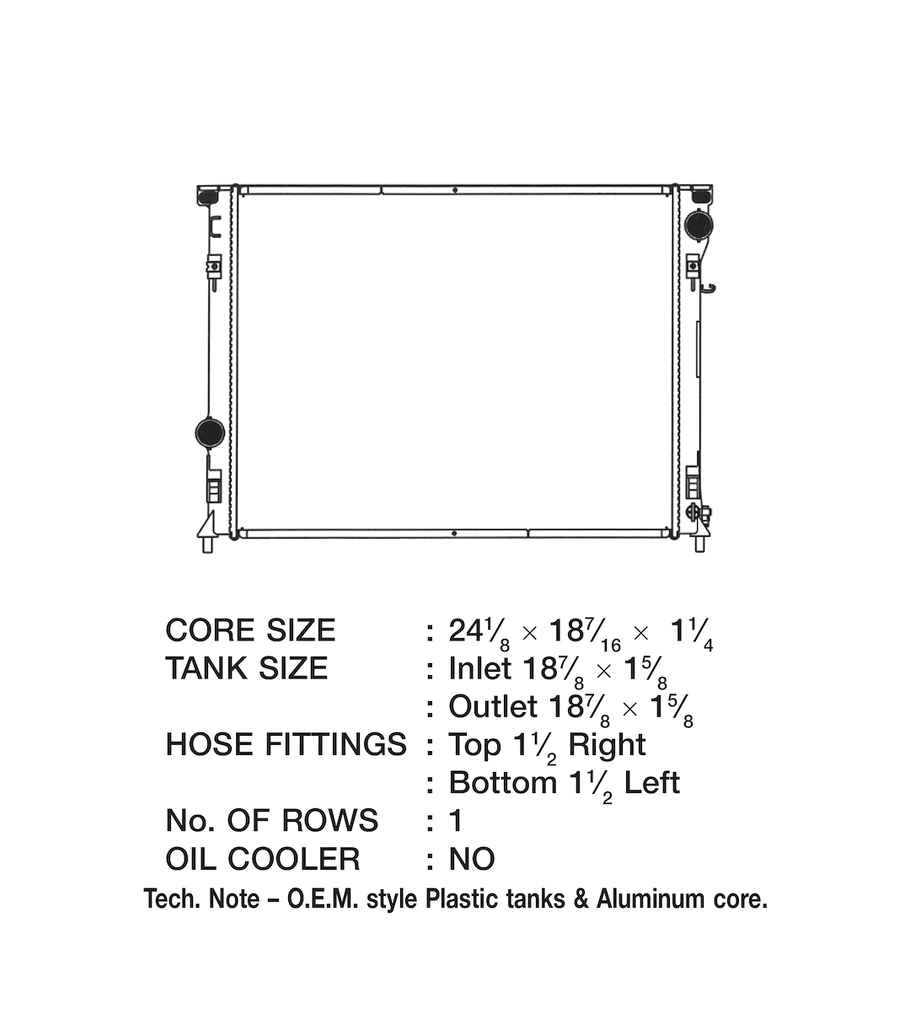

• Core Length (IN): 24-1/8 Inch
• Core Height (IN): 18-7/16 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2005-2008 Chrysler 300
• 2011-2020 Chrysler 300
• 2008-2009 Dodge Challenger
• 2011-2023 Dodge Challenger
• 2006-2010 Dodge Charger
• 2012-2023 Dodge Charger
• 2005-2008 Dodge Magnum
