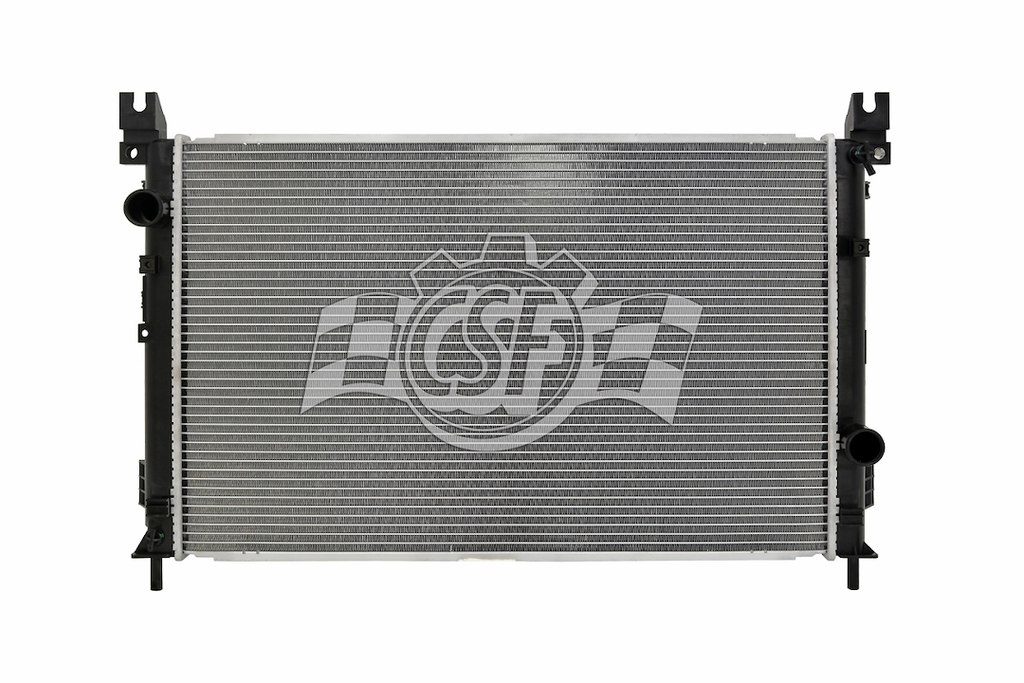

CSF Radiator With Transmission Cooler (MPN: 3173)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance and durability, featuring a robust aluminum core with plastic tanks. This radiator is designed to fit seamlessly into a variety of vehicles, ensuring efficient cooling through its crossflow design. With dimensions of 27-9/16 inches in length, 17-5/8 inches in height, and 7/8 inch in depth, it is built to meet OEM specifications while providing superior cooling performance.

Constructed from virgin grade engineered plastic resins, the tanks are glass filled for enhanced strength and longevity. The radiator includes a high performance transmission cooler with a built-in turbulator, which optimizes fluid flow and cooling efficiency. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance under extreme conditions.

CSF has over 50 years of experience in manufacturing radiators, with a commitment to quality and performance. This radiator is designed to withstand extreme temperatures, making it suitable for a wide range of applications. The drop-in fit design simplifies installation, allowing for quick and easy replacement of existing radiators.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are Glass Filled For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degree Fahrenheit
• Tubes: Welded Type Or Latest Generation B-Tube Design
• Fins: High Performance Multi-Louvered Design
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• Drop-In Fit
• High Performance Transmission Cooler With Special Built-In Turbulator
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

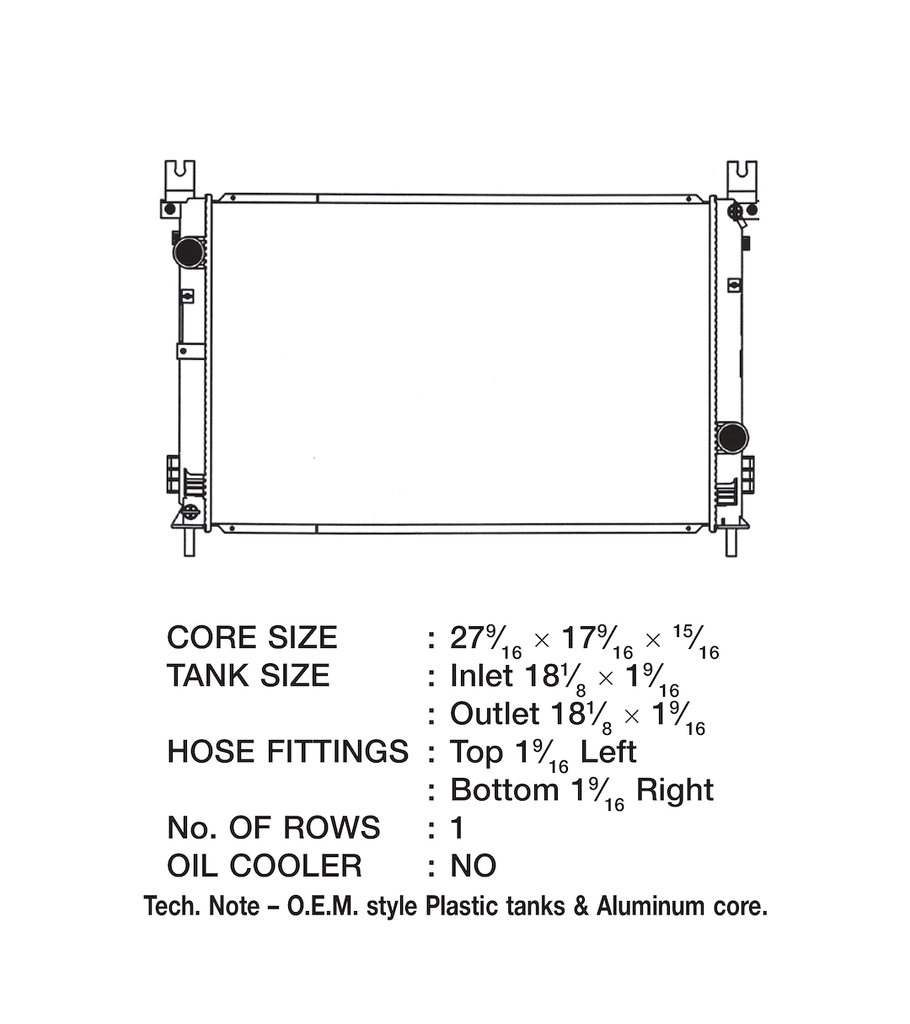

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3173
• Flow Direction: Cross Flow
• Overall Length (IN): 34-13/16 Inch
• Overall Height (IN): 23-11/16 Inch
• Overall Depth (IN): 5-11/16 Inch
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-9/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-9/16 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 27-9/16 Inch
• Core Height (IN): 17-5/8 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes

Compatibility / Fit

• 2004-2006 Chrysler Pacifica
