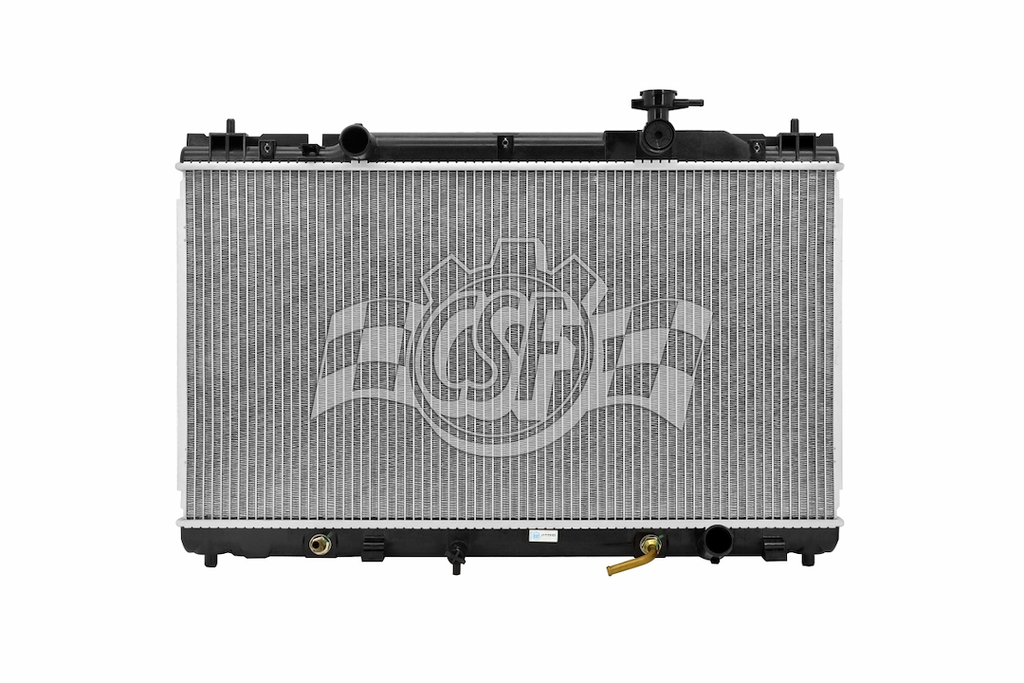

CSF Radiator With Transmission Cooler (MPN: 3143)

High performance aluminum core radiator designed for efficient cooling.

The CSF Radiator is engineered for optimal cooling performance, featuring a robust aluminum core with plastic tanks. With core dimensions of 15-13/16 inches in length, 29-1/16 inches in height, and a depth of 7/8 inches, this radiator is designed for downflow applications. It includes a high performance transmission cooler and an engine oil cooler, ensuring effective heat management in demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength and durability. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, making it suitable for a wide range of environments. Each unit is 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring reliability and performance.

The design incorporates welded type tubes or the latest generation B-tube design, along with a high performance multi-louvered fin configuration that meets OEM specifications. This radiator is a testament to CSF's commitment to high performance standards, backed by over 50 years of experience and more than 30 million units sold worldwide.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3143
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-5/16 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-5/16 Inch
• Finish: Natural
• Color: Black/ Silver

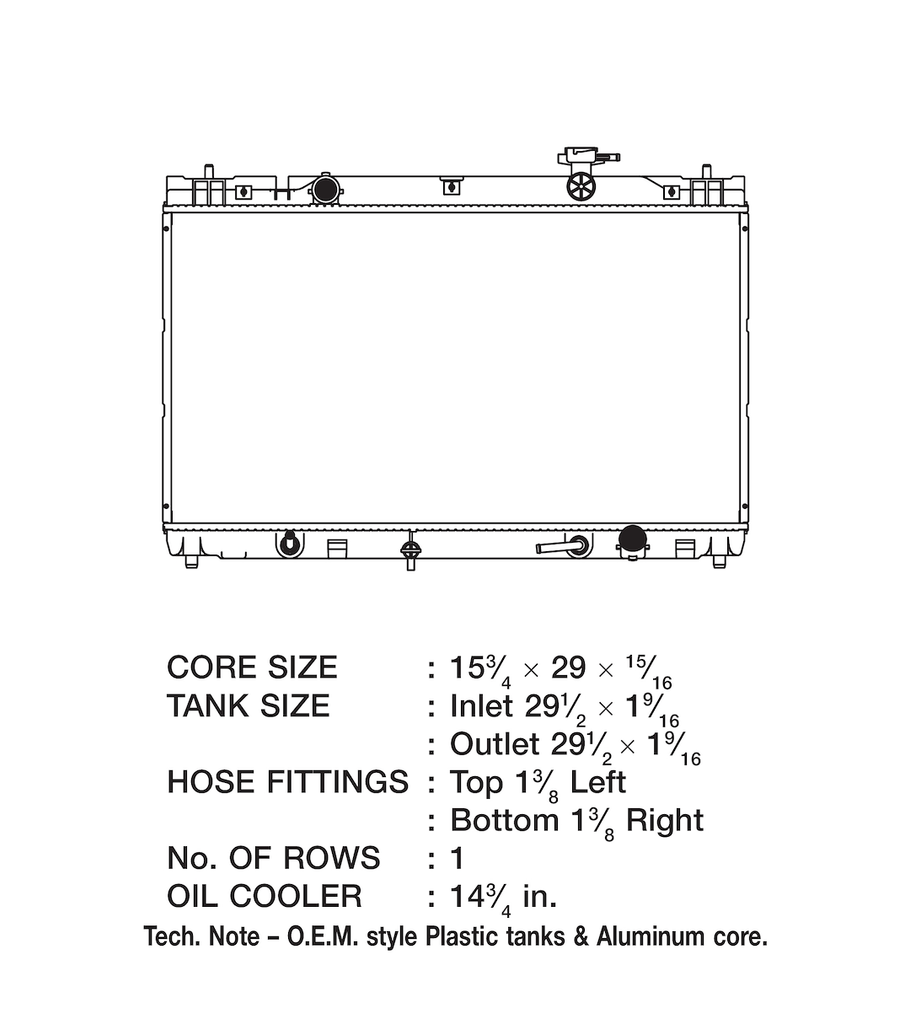

• Core Length (IN): 15-13/16 Inch
• Core Height (IN): 29-1/16 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2002-2006 Toyota Camry
• 2004-2008 Toyota Solara
