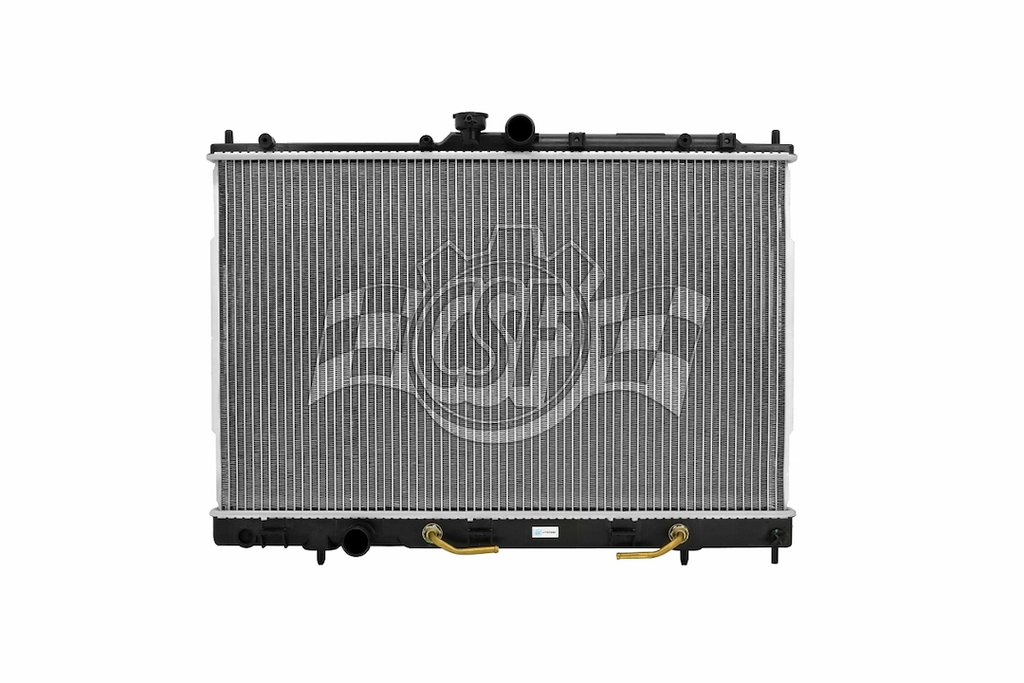

CSF Radiator With Transmission Cooler (MPN: 3130)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance and durability, featuring a robust aluminum core with OEM specified plastic tanks. With dimensions of 16-3/4 inches in length, 27-1/16 inches in width, and 7/8 inches in thickness, this radiator is designed for downflow applications and is compatible with a variety of vehicles. The construction utilizes virgin grade engineered plastic resins that are glass filled for enhanced strength, ensuring longevity under extreme conditions.

This radiator incorporates advanced features such as a high performance multi-louvered fin design and a built-in transmission cooler with a special turbulator for improved fluid dynamics. Each unit undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance. The welded tube design and EPDM rubber gaskets provide additional resistance to temperature extremes, making this radiator suitable for demanding environments.

CSF has over 50 years of experience in manufacturing radiators, with a commitment to quality and performance validated through wind tunnel testing. This radiator is part of a comprehensive range that includes over 10,000 models, catering to the needs of various vehicle brands. The drop-in fit design simplifies installation, while the industry-leading packaging ensures safe delivery.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" And OEM Specification
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• Industry Best Packaging: "10 Foot Drop Test" Standard
• Drop-In Fit And High Performance Transmission Cooler With Special Built-In Turbulator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

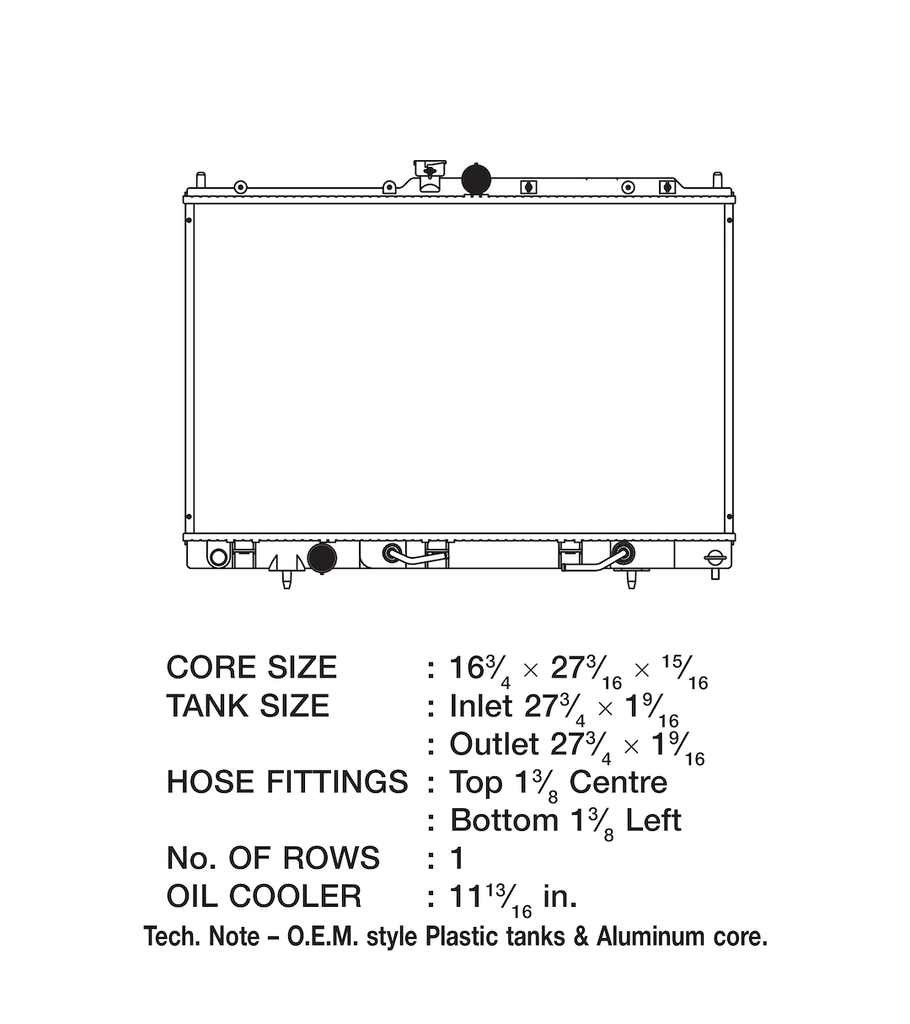

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3130
• Flow Direction: Downflow
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Center Upper
• Inlet Size (IN): 1-5/8 Inch
• Outlet Hose Location: Lower Driver Side
• Outlet Size (IN): 1-5/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 16-3/4 Inch
• Core Height (IN): 27-1/16 Inch
• Core Depth (IN): 7/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2004-2006 Mitsubishi Outlander
