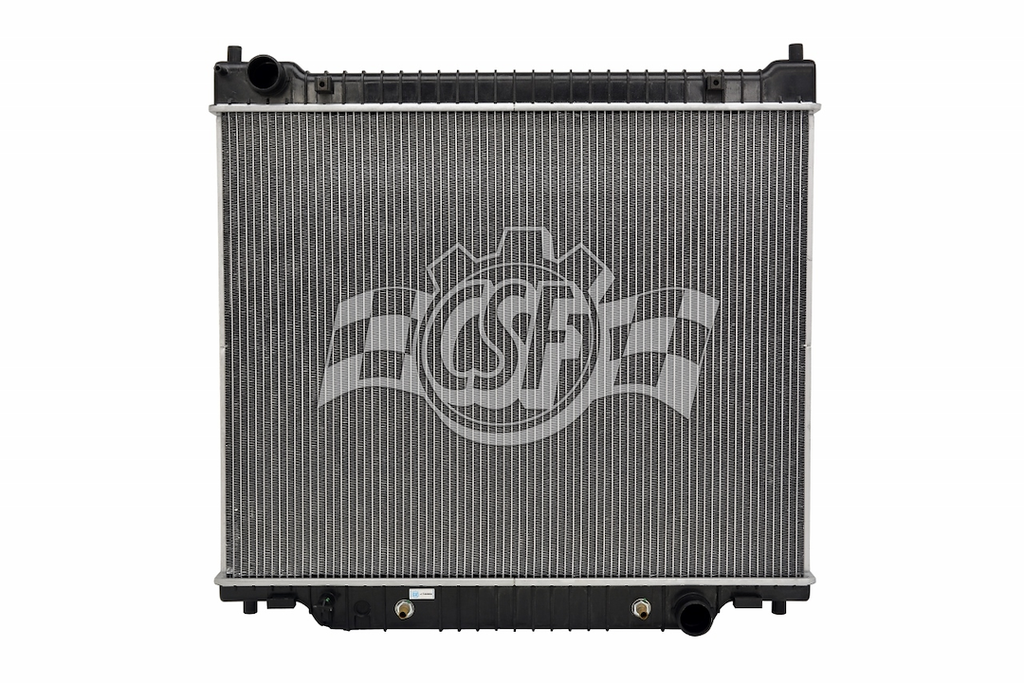

CSF Radiator With Transmission Cooler (MPN: 3111)

High performance aluminum core radiator designed for durability and efficiency.

The CSF Radiator is engineered for optimal cooling performance, featuring a robust aluminum core with plastic tanks. With core dimensions of 23-5/8 inches in length, 29-7/16 inches in height, and 2-1/16 inches in depth, this radiator is designed to fit a variety of applications. It includes a high performance transmission cooler and an engine oil cooler, ensuring efficient heat dissipation under demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for enhanced strength and durability. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, making it suitable for a wide range of environments. The dual core rows and high performance multi-louvered fins contribute to its effective cooling capabilities.

Each CSF Radiator undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and performance. The welded type or latest generation B-tube design enhances fluid flow, while the careful assembly process guarantees that all components are properly torqued and tested. This radiator is a reliable choice for those seeking a high-quality cooling solution.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3111
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Dual
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-3/4 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-3/4 Inch
• Finish: Natural
• Color: Black/ Silver

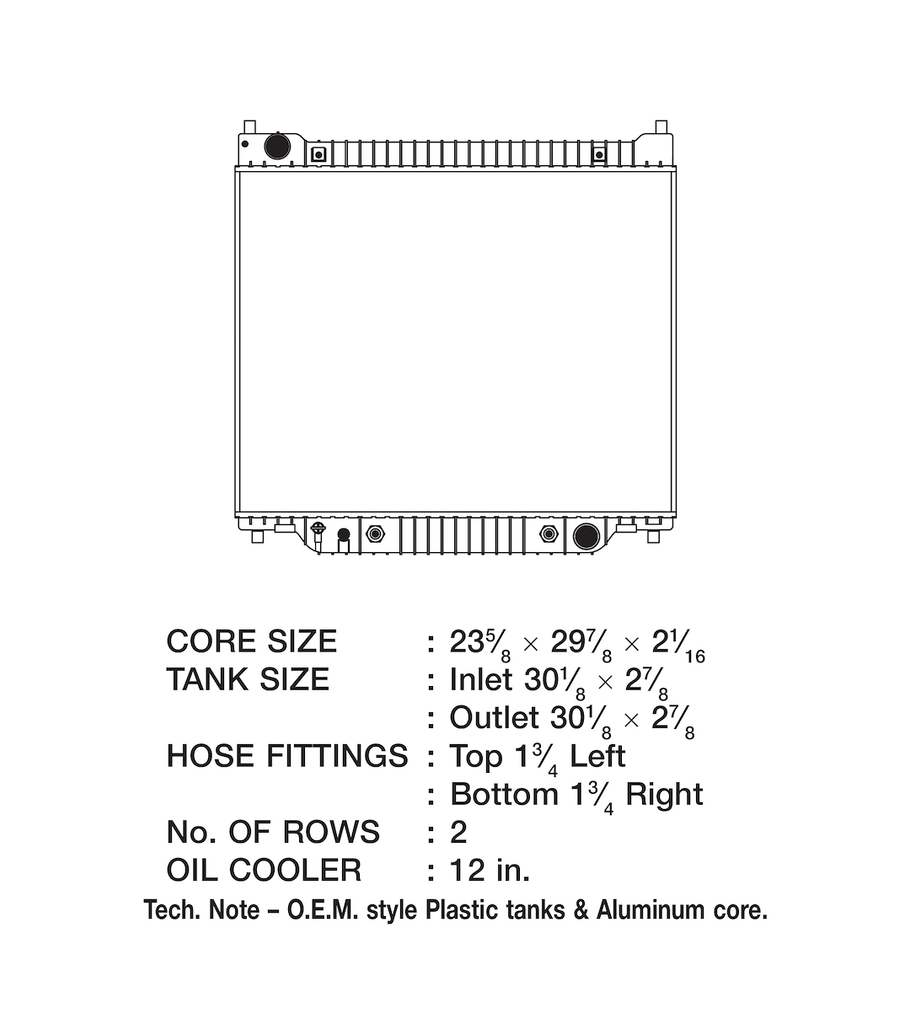

• Core Length (IN): 23-5/8 Inch
• Core Height (IN): 29-7/16 Inch
• Core Depth (IN): 2-1/16 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2003-2007 Ford E-150
• 2003-2005 Ford E-150 Club Wagon
• 1997-2002 Ford E-150 Econoline
• 1997-2002 Ford E-150 Econoline Club Wagon
• 2003-2007 Ford E-250
• 1997-2002 Ford E-250 Econoline
• 2003-2005 Ford E-350 Club Wagon
• 1997-1998 Ford E-350 Econoline
• 1997-2002 Ford E-350 Econoline Club Wagon
• 2004-2007 Ford E-350 Super Duty
• 2005-2007 Ford E-450 Super Duty
• 1997-1999 Ford Econoline Super Duty
