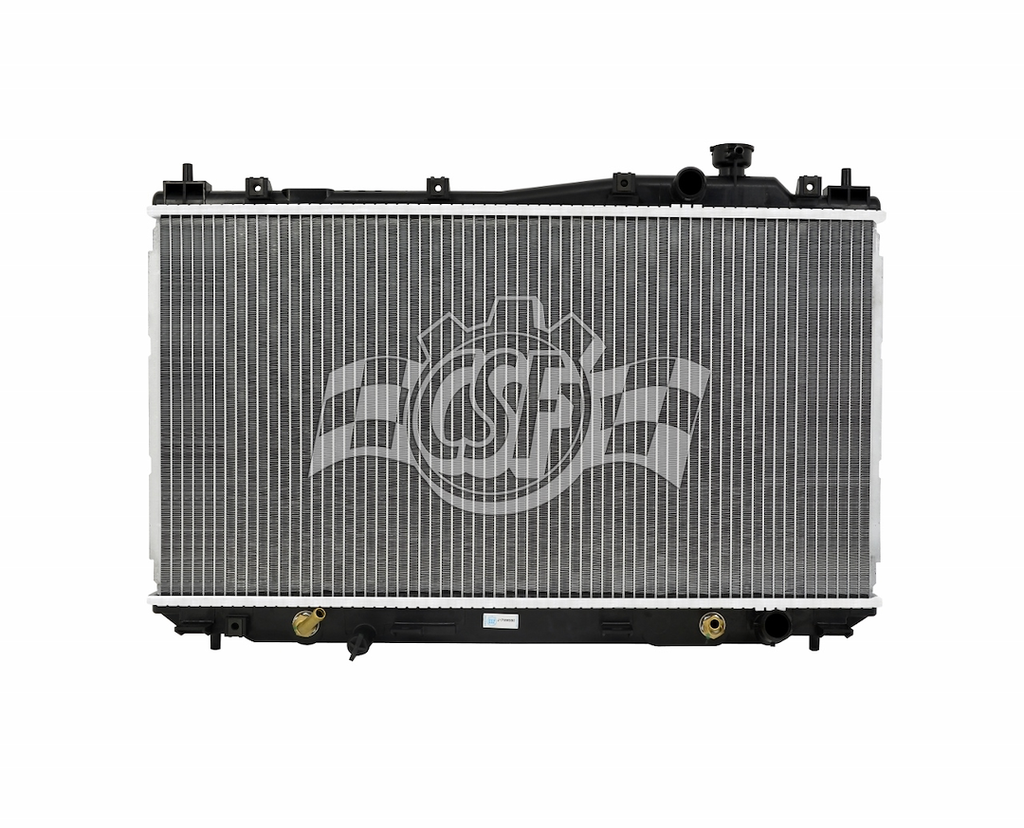

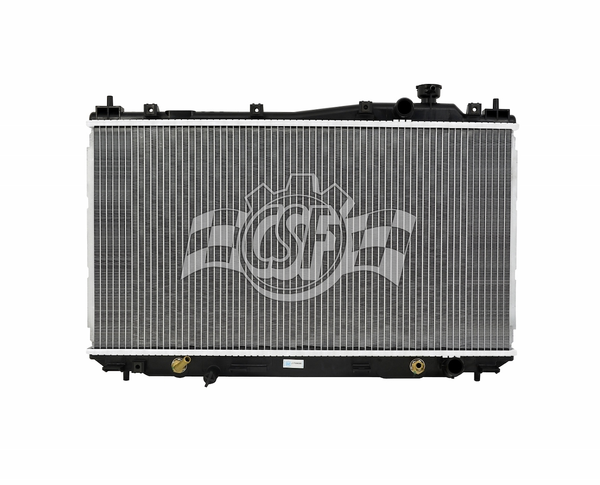

CSF Radiator With Transmission Cooler (MPN: 2800)

High performance aluminum core radiator designed for durability and efficiency.

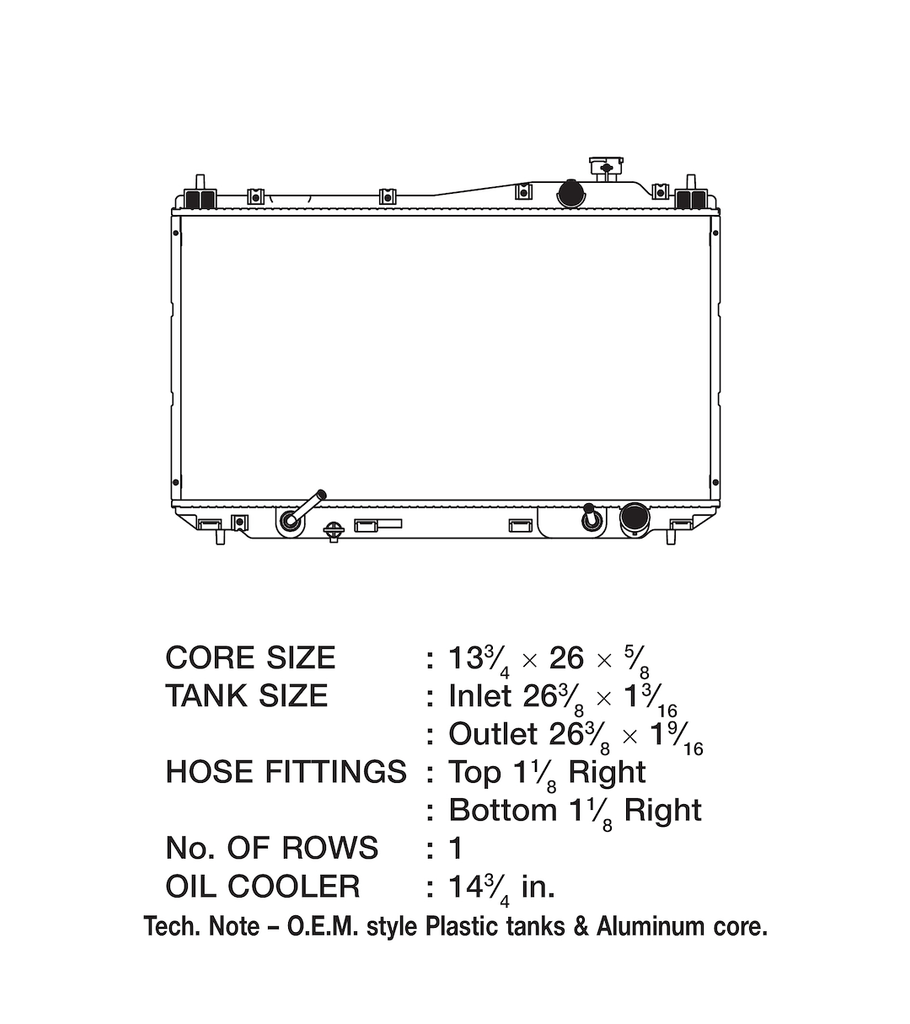

The CSF Radiator is engineered for optimal cooling performance with a core dimension of 13-3/4 inches in length, 25-7/8 inches in height, and 5/8 inches in depth. This downflow radiator features a robust aluminum core complemented by plastic tanks made from virgin grade engineered plastic resins, ensuring strength and durability. The design includes a high performance transmission cooler with a built-in turbulator, enhancing fluid flow and heat dissipation.

Constructed to meet OEM specifications, the radiator is equipped with 1-1/8 inch hose connections located at the top right and bottom right. It is rigorously tested for leaks at 150 percent of operating pressure, ensuring reliability under extreme conditions. The multi-louvered fin design maximizes airflow, while the special grade EPDM rubber gaskets withstand temperatures as low as -120 degrees Fahrenheit.

CSF has over 50 years of experience in manufacturing high performance radiators, with more than 30 million units sold worldwide. Each radiator is assembled with precision, with all components torqued and tested to guarantee quality. This radiator is an essential component for maintaining engine temperature and performance.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 2800
• Flow Direction: Downflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Inlet Size (IN): 1-1/8 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/8 Inch
• Finish: Natural
• Color: Black/ Silver
• Core Length (IN): 13-3/4 Inch
• Core Height (IN): 25-7/8 Inch
• Core Depth (IN): 5/8 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2001-2005 Honda Civic
