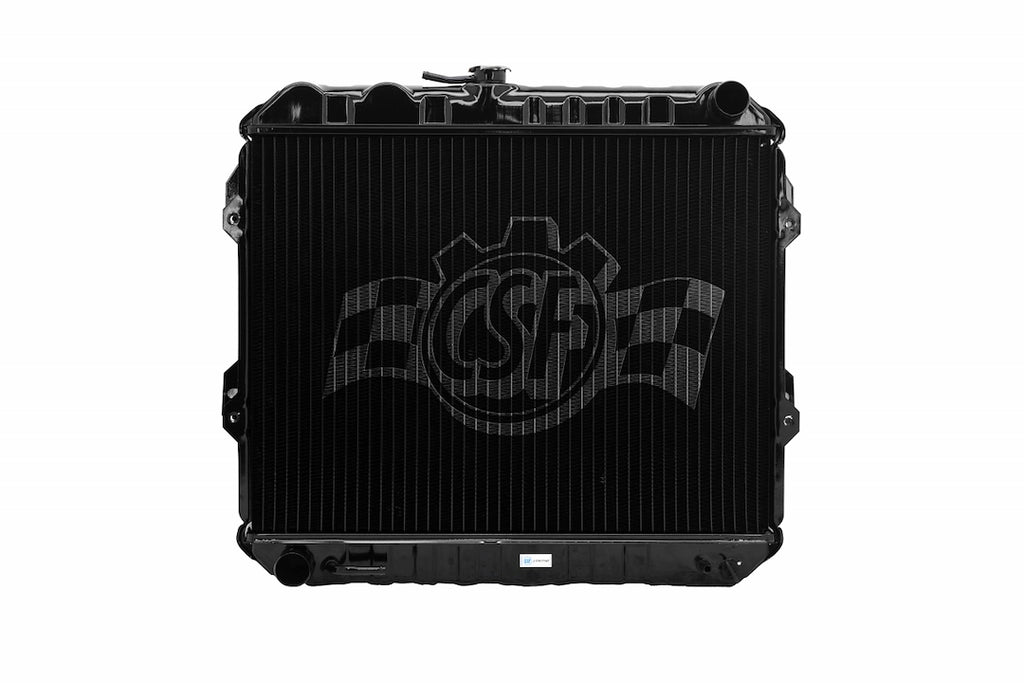

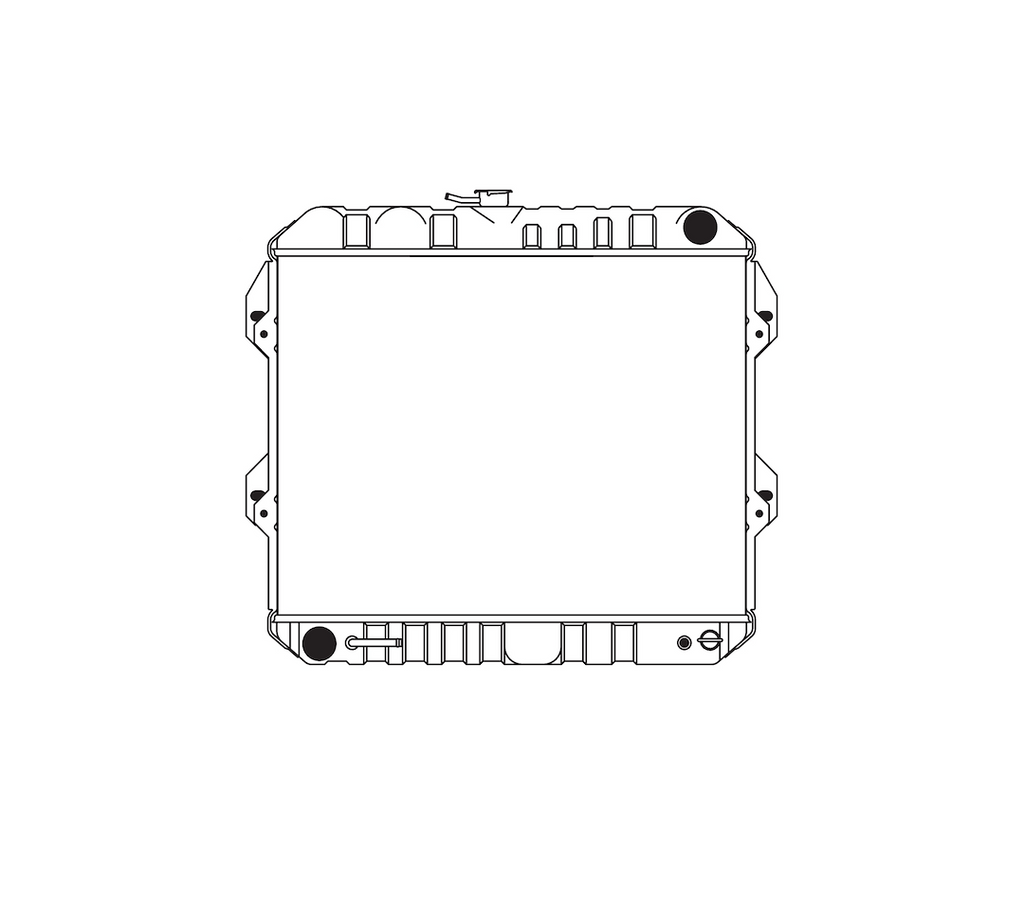

CSF Radiator With Transmission Cooler (MPN: 2314)

High performance copper radiator designed for optimal cooling efficiency.

The CSF Radiator is engineered for high performance and durability, featuring a copper-brass construction that meets OEM specifications. With core dimensions of 15-3/4 inches in length, 20-13/16 inches in height, and 2-1/4 inches in depth, this radiator is designed to provide efficient cooling for a variety of vehicles. It includes a transmission cooler and is built to withstand the rigors of automotive applications, ensuring reliable operation under demanding conditions.

This radiator is equipped with reinforced inlet and outlet connections utilizing a 'thru pipe design' for enhanced strength. The special coated OEM specified double lock seam joints contribute to the longevity of the unit, while the coated steel side channels provide additional durability. Each radiator undergoes rigorous testing, being 100 percent leak tested at 150 percent of operating pressure before leaving the factory, ensuring quality and reliability.

CSF has over 50 years of experience in manufacturing radiators, with a commitment to high performance standards. The design includes features that prevent coolant contamination, protecting sensitive components such as seals, water pumps, and thermostats. This radiator is an excellent choice for those seeking a dependable cooling solution for their vehicle.

Features

• OEM Specified Copper-Brass Construction
• Easy To Recore And Repair
• No Risk For Coolant Contamination And Damage To Sensitive Seals, Water Pump And Thermostat
• Tubes - Special Coated OEM Specified Double Lock Seam Joints For Long Life
• Side Channels - Coated Steel For Strength And Durability
• OEM Specified "Single Piece - Deep Drawn" Brass Tanks With Ribs For Added Strength And Durability
• Reinforced Inlet And Outlet Connections With "Thru Pipe Design"
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• All Components Are Installed, Torqued And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 2314
• Flow Direction: Down Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: 3
• Core Material: Copper
• Inlet Hose Location: Upper Driver Side
• Inlet Size (IN): 2-1/4 Inch Width x 20-11/16 Inch length
• Outlet Hose Location: Lower Driver Side
• Outlet Size (IN): 2-1/4 Inch Width x 20-11/16 Inch length
• Finish: Natural
• Color: Black
• Core Length (IN): 15-3/4 Inch
• Core Height (IN): 15-3/4 Inch
• Core Depth (IN): 1-11/16 Inch
• Tank Material: Brass
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 1984-1988 Toyota 4Runner
• 1986-1995 Toyota Pickup
