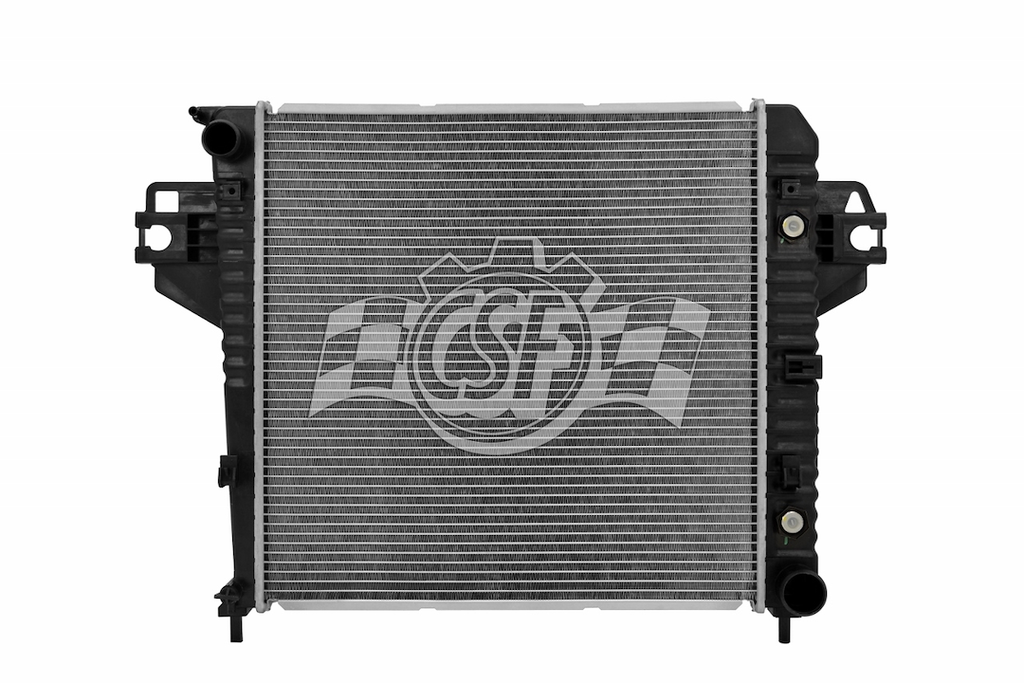

CSF Radiator With Transmission And Engine Oil Cooler (MPN: 3363)

High performance aluminum radiator designed for optimal cooling efficiency.

The CSF Radiator features a robust aluminum core with plastic tanks, engineered for high performance and durability. With core dimensions of 19-7/8 inches in length, 20 inches in height, and a depth of 1-1/4 inches, this radiator is designed to fit a variety of applications. It includes a high performance transmission cooler and an engine oil cooler, ensuring efficient heat dissipation under demanding conditions.

Constructed with OEM specified plastic tank-aluminum core technology, the tanks are made from virgin grade engineered plastic resins that are glass filled for added strength. The radiator is equipped with special grade EPDM rubber gaskets that can withstand extreme temperatures, making it suitable for a wide range of environments. The welded type or latest generation B-tube design enhances fluid flow, while the multi-louvered fins provide superior cooling performance.

Each CSF radiator undergoes rigorous testing, including a 100 percent leak test at 150 percent of operating pressure, ensuring reliability and longevity. The inlet and outlet hose connections are strategically located for optimal flow, with a top left inlet size of 1-1/2 inches and a bottom right outlet size of 1-13/16 inches. This radiator is a dependable choice for those seeking efficient cooling solutions.

Features

• OEM Specified Plastic Tank-Aluminum Core Construction
• Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
• Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
• Tubes: Welded Type Or Latest Generation "B-Tube" Design
• Fins: High Performance "Multi-Louvered Design" - OEM Spec
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
• All Components Are Installed, Torqued, And Tested On Radiator During Assembly

Specifications

• Manufacturer: CSF
• Manufacturer Part Number: 3363
• Flow Direction: Crossflow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: Single
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-13/16 Inch
• Finish: Natural
• Color: Black/ Silver

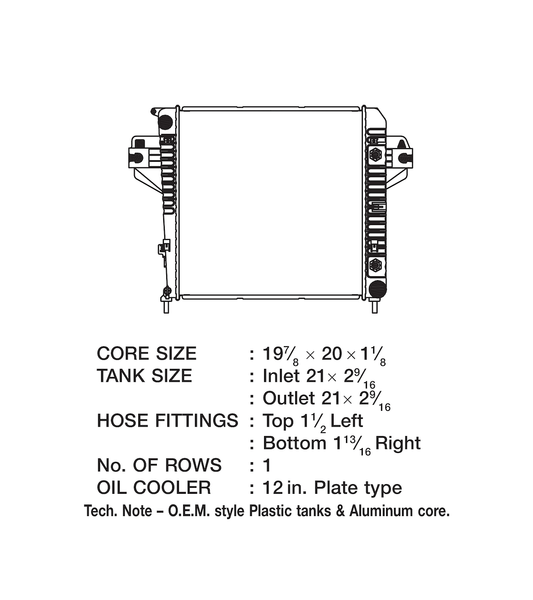

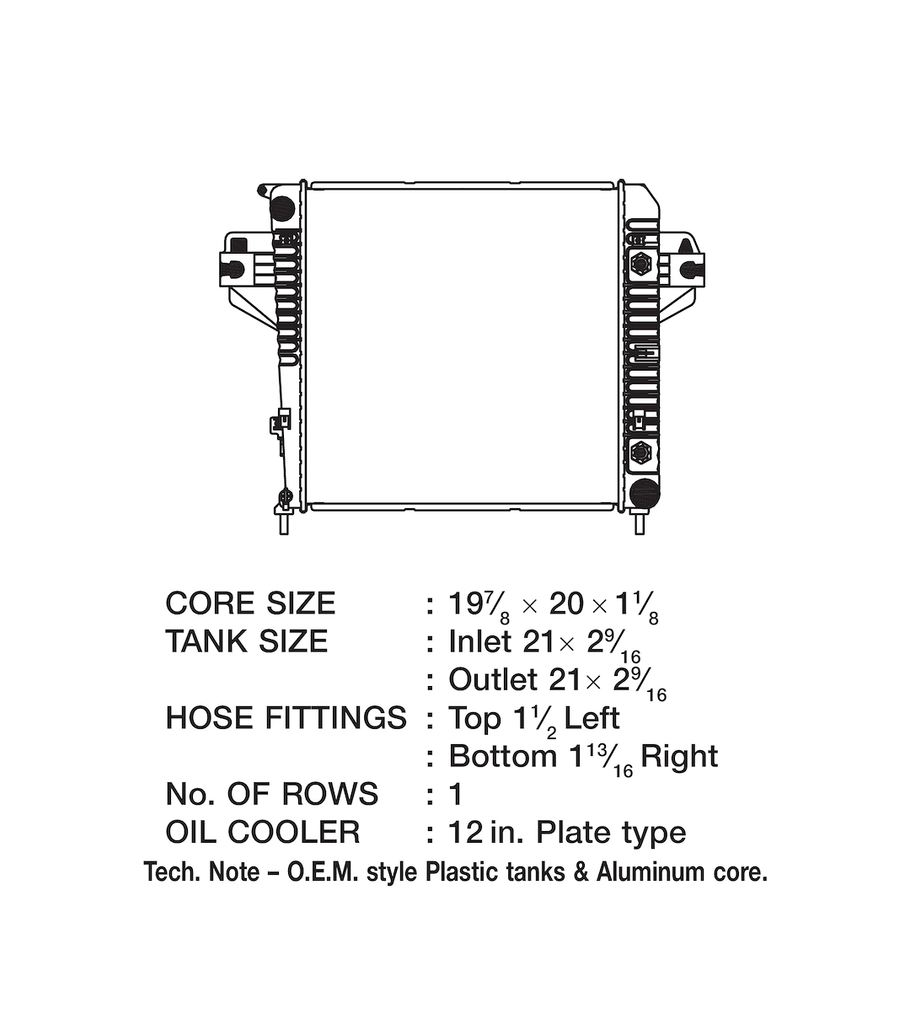

• Core Length (IN): 19-7/8 Inch
• Core Height (IN): 20 Inch
• Core Depth (IN): 1-1/4 Inch
• Tank Material: Plastic
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2002-2006 Jeep Liberty
